Parts Catalog

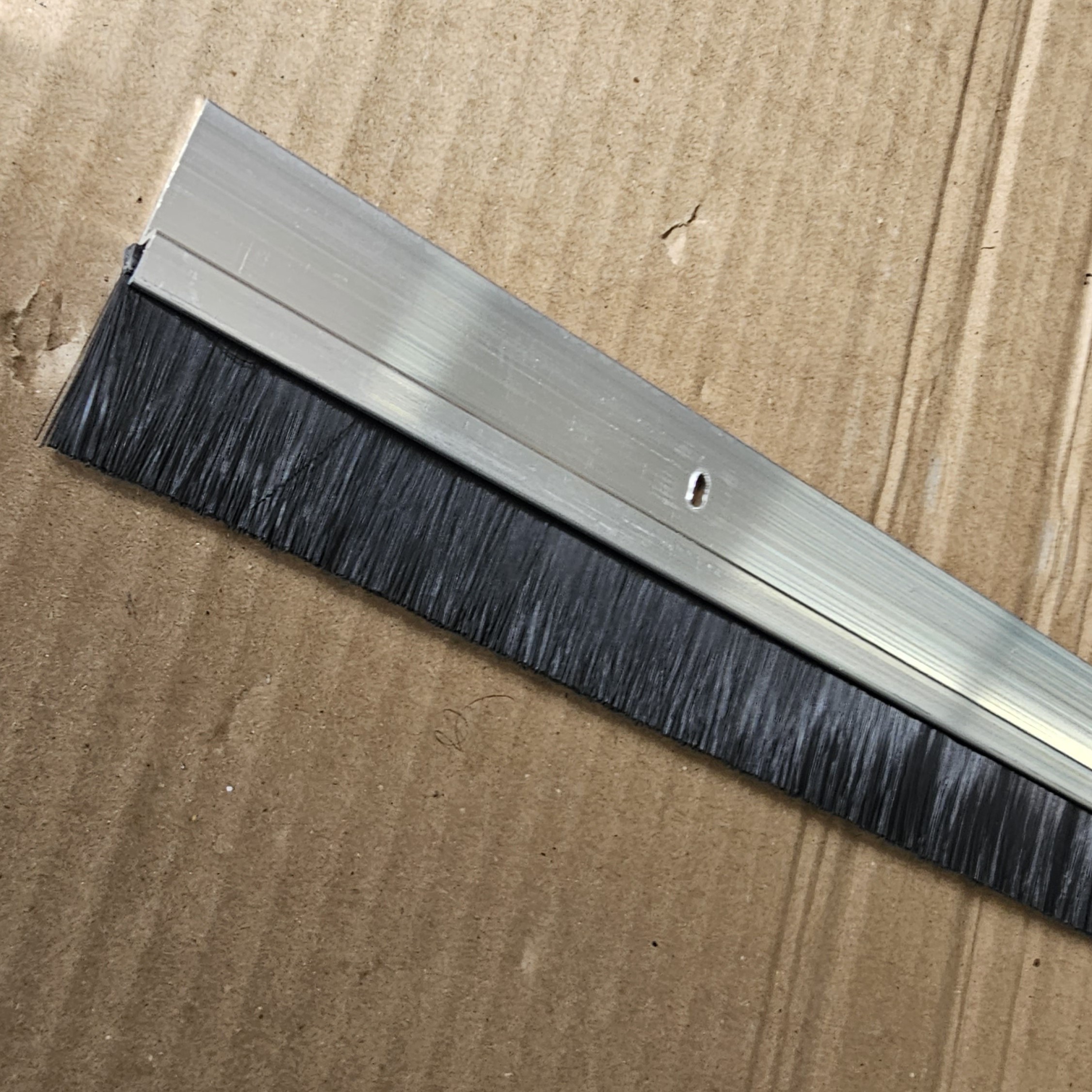

45 degree angled brush seal. 4ft long. Bristles measure 3 inches. Used for automatic doors for rodent exclusion. Used on the moving panels of doors. Attached using self-tapping screws (not included).

Bottom sweeps for pest control. Used on stationary outside panels.

2-sided Caution decal for automatic doors.

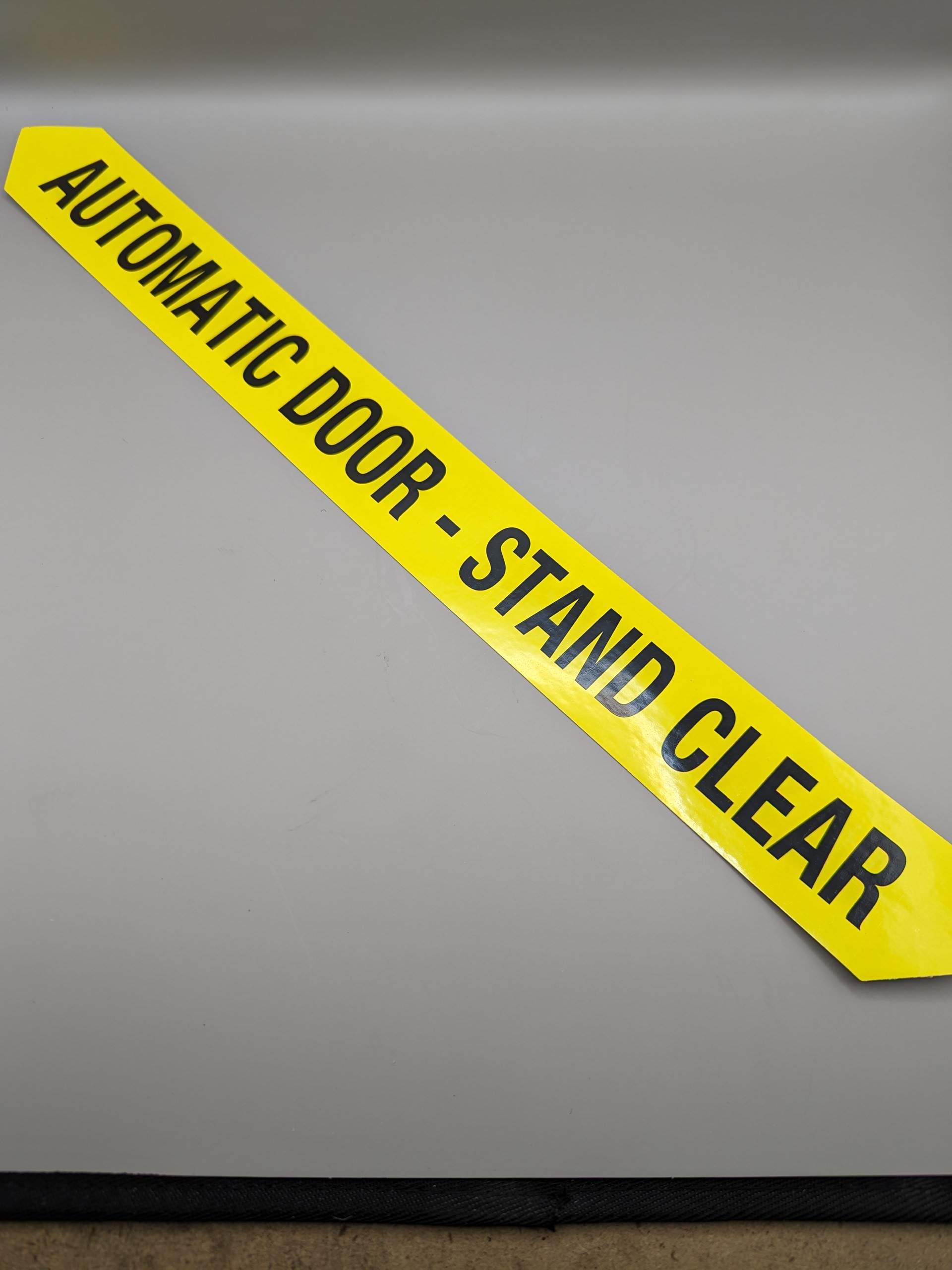

Automatic Door Stand Clear Decal, AAADM

Entrance/Exit Decal, AAADM Shows ”Do Not Enter” on one side and a green entry arrow on the other.

Emergency decal, AAADM

BEA IXIO sensor, storefront automatic door sensor

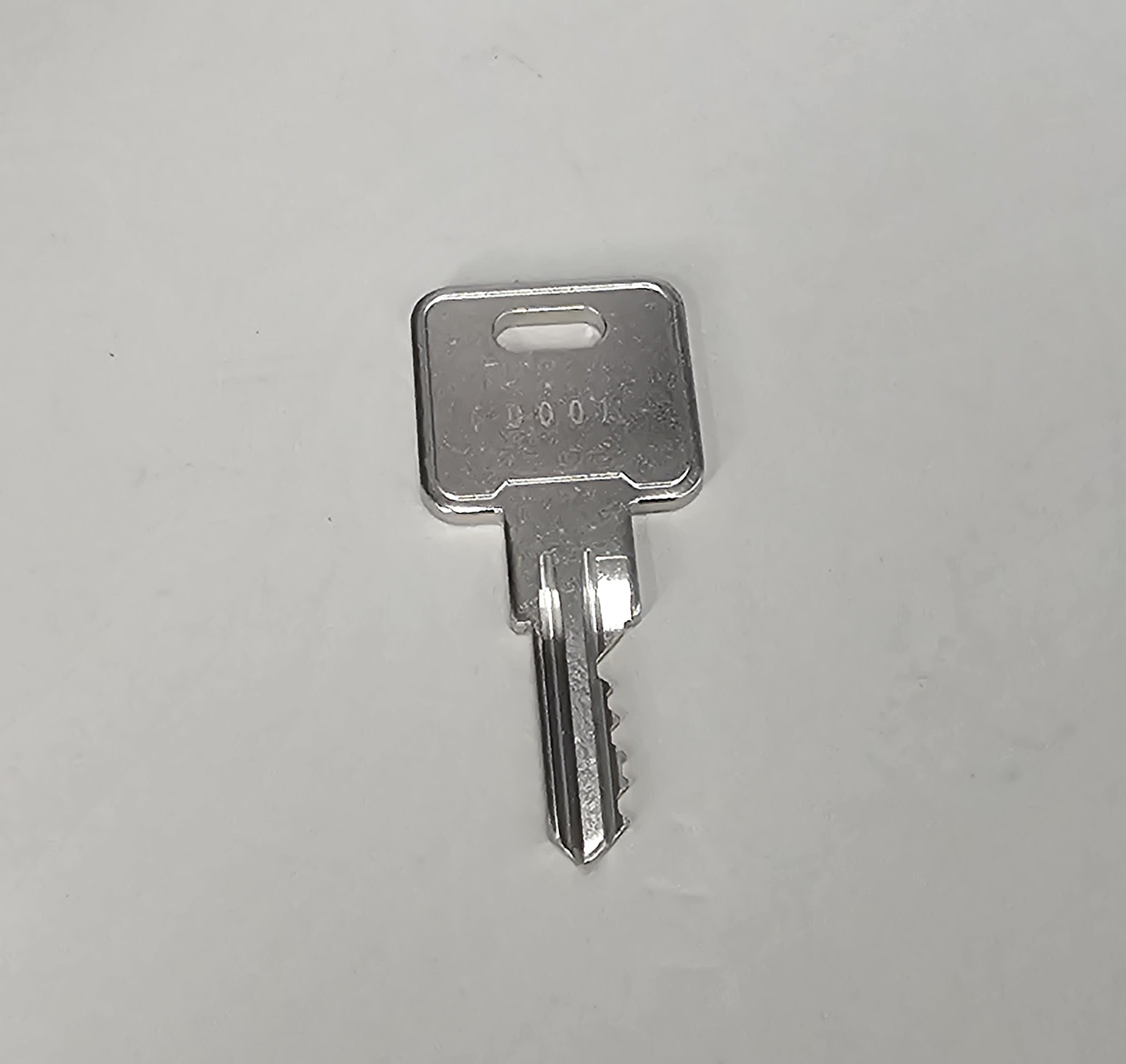

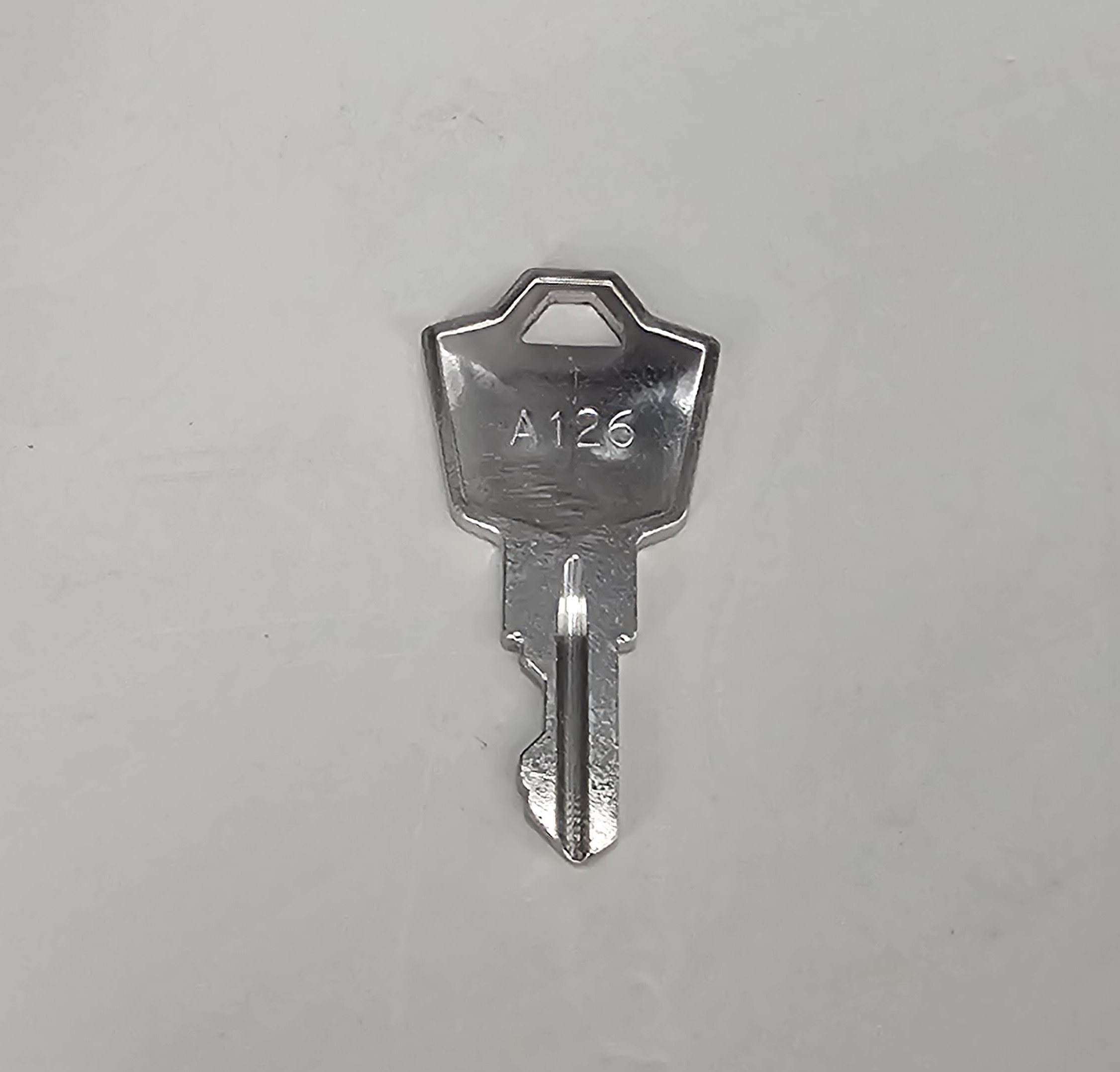

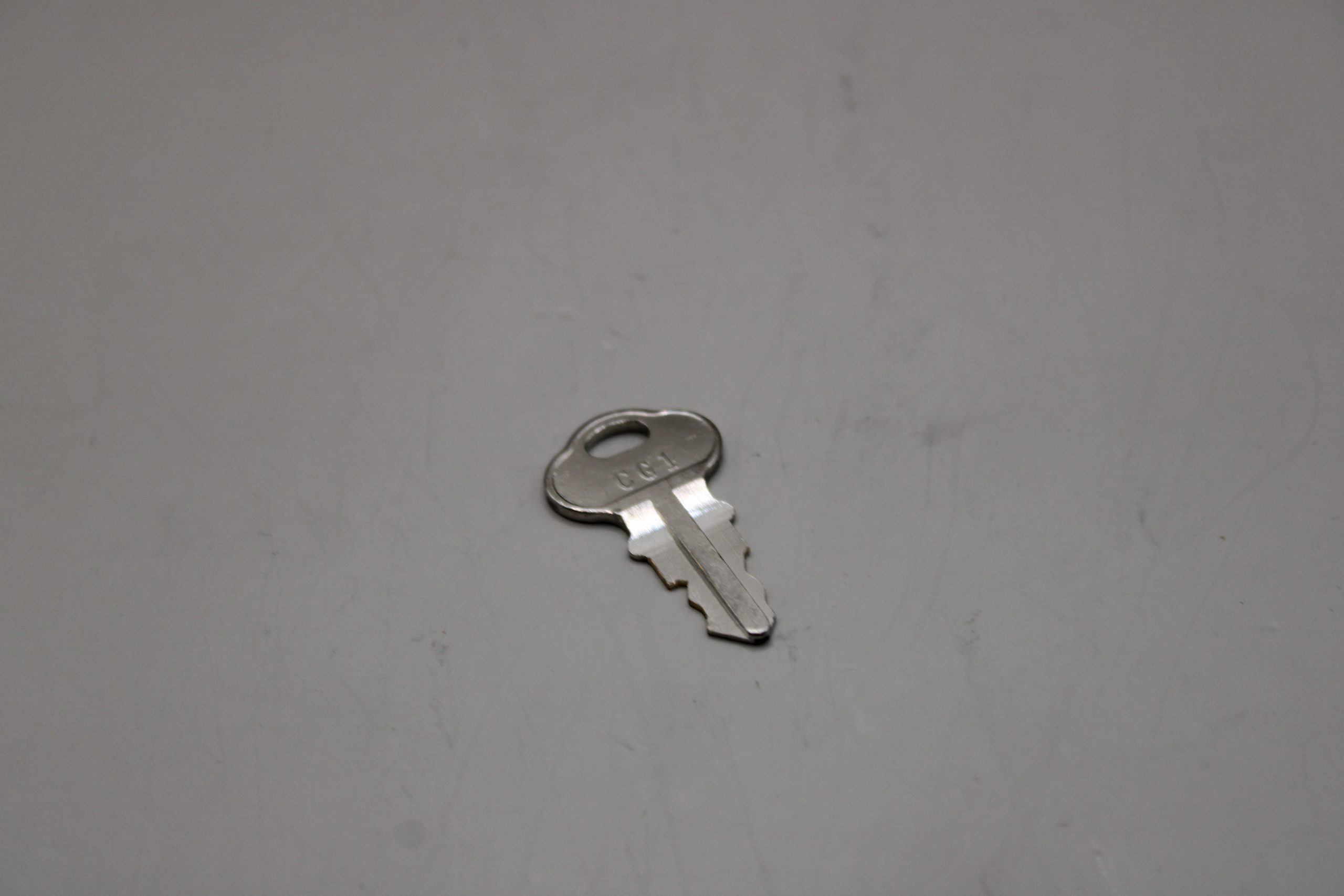

Key only for Stanley 2 position key switch

Key switch for power (on/off)

Key for Stanley Auto Door 6-position key switch. Allows the door to be put into Automatic, Closed, Open, Reduced Oneway, Reduced, and Oneway.

Full 6-position key switch. Comes with 2 keys.

Ball detent from the top of moving door panels.

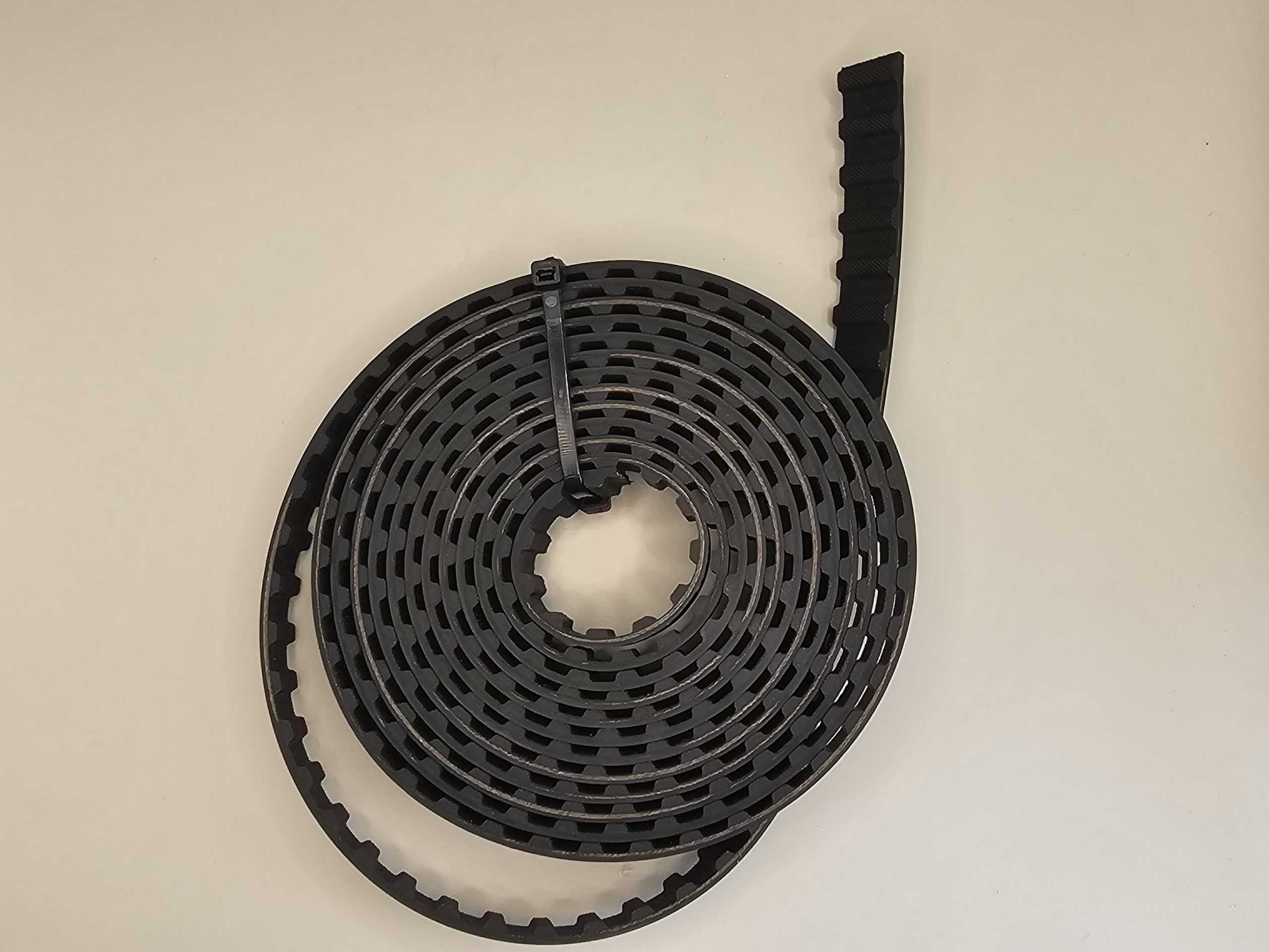

Stanley drive belt, 28ft, Duraglide storefront automatic door

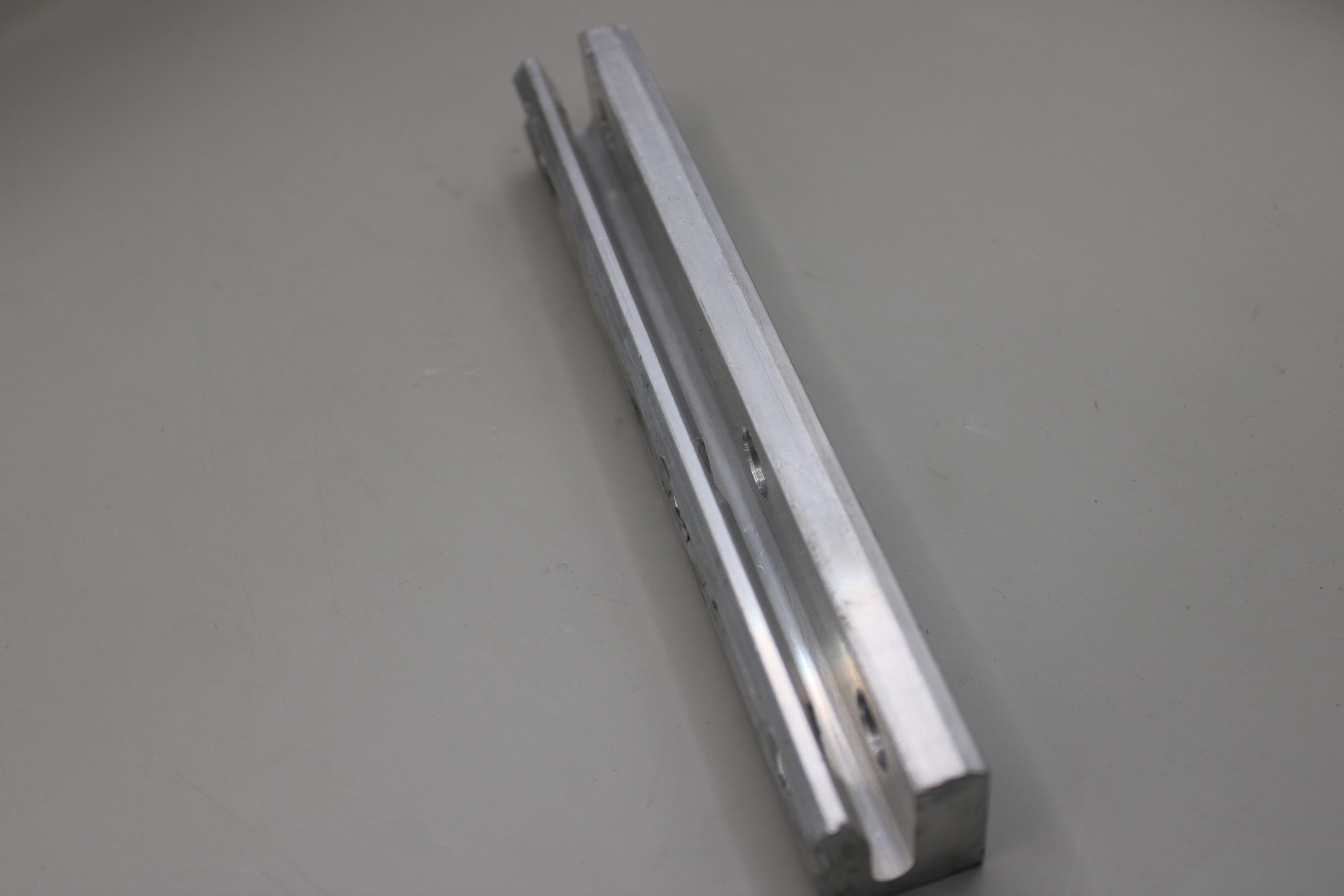

Bottom guide, Stanley Duraglide storefront automatic door, full break out

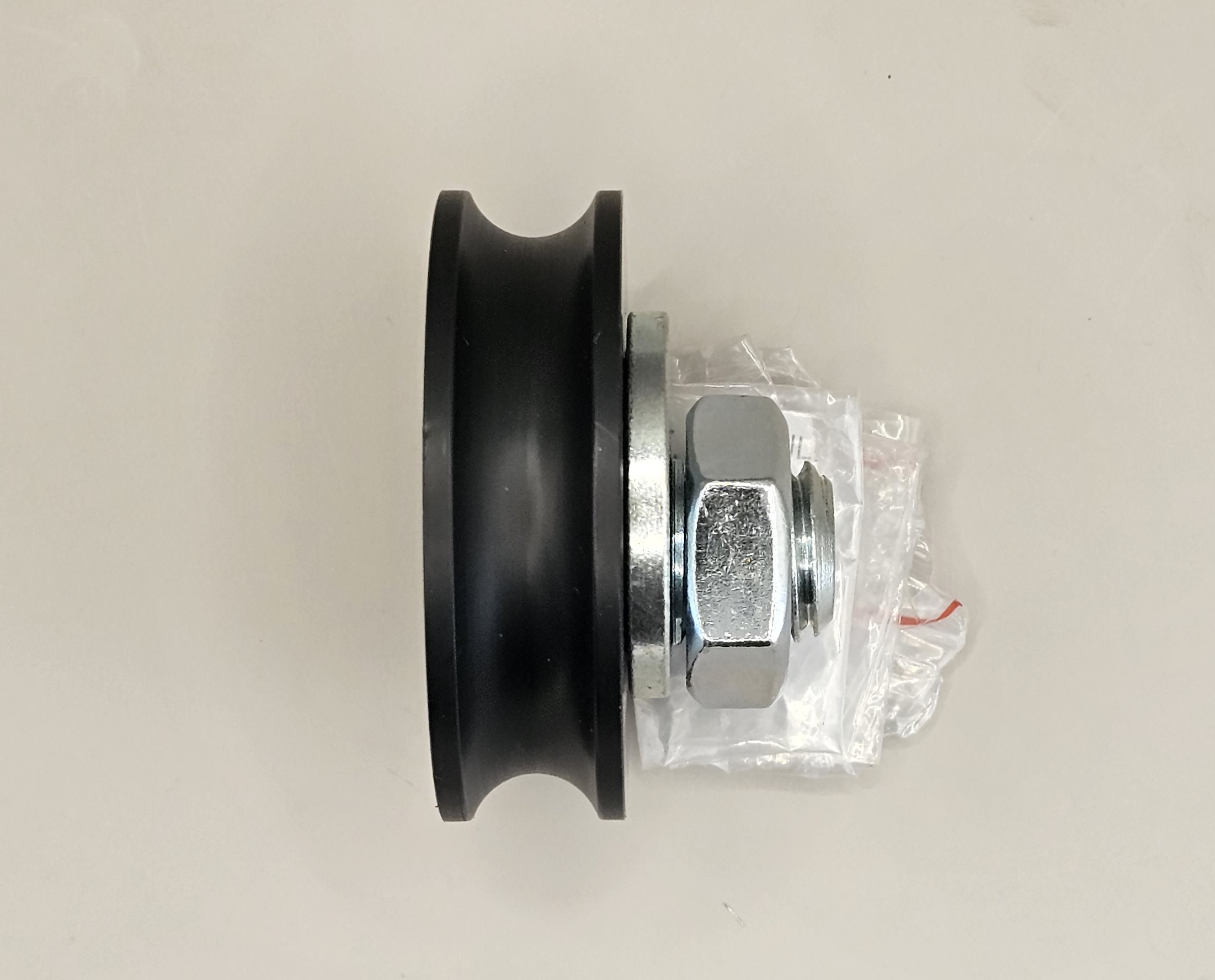

Roller wheel, Stanley Duraglide storefront automatic door, top roller, hanger wheel

Stanley automatic door weather seal, felt weather pile, adhesive. Comes as 18ft section to complete one (1) door panel.

Left hand ball detent door portion for Stanley automatic doors

Right hand ball detent door portion for Stanley automatic doors

Ball detent hanger portion for Stanley automatic doors.

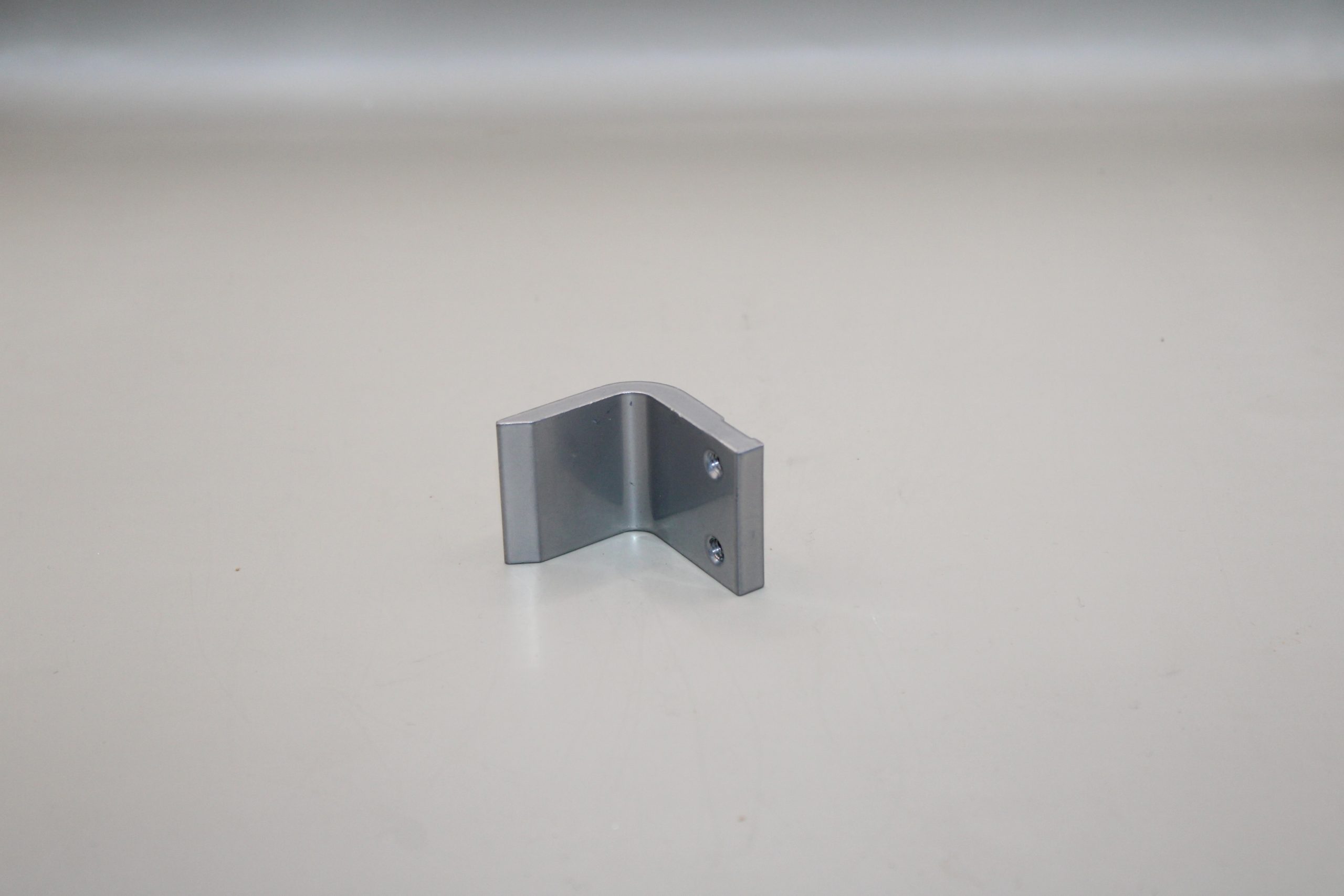

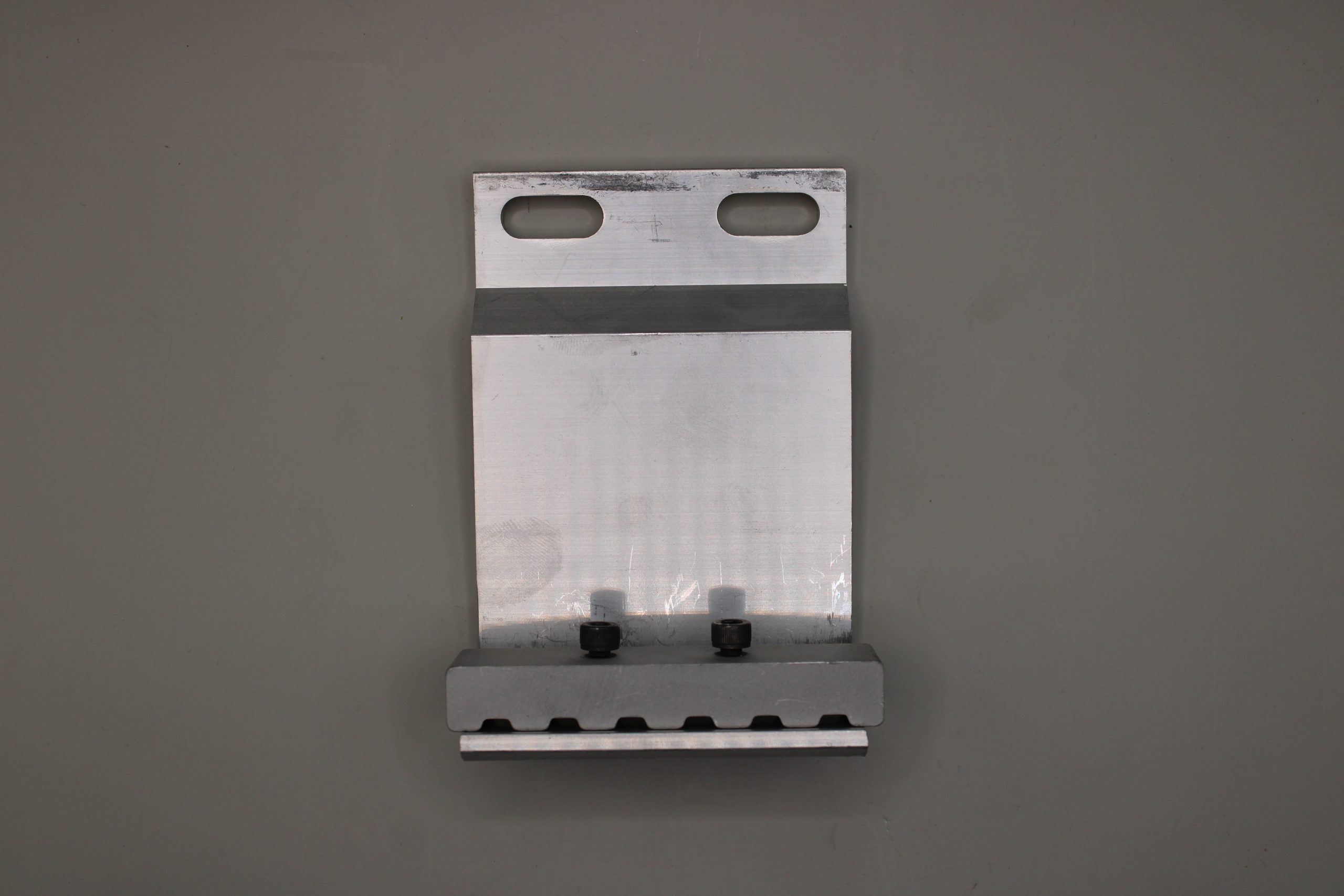

Long belt bracket for Stanley Duraglide automatic doors.

Double diamond roller for Stanley Duraglide automatic doors.

Anti-rise wheel for Stanley Duraglide automatic doors.

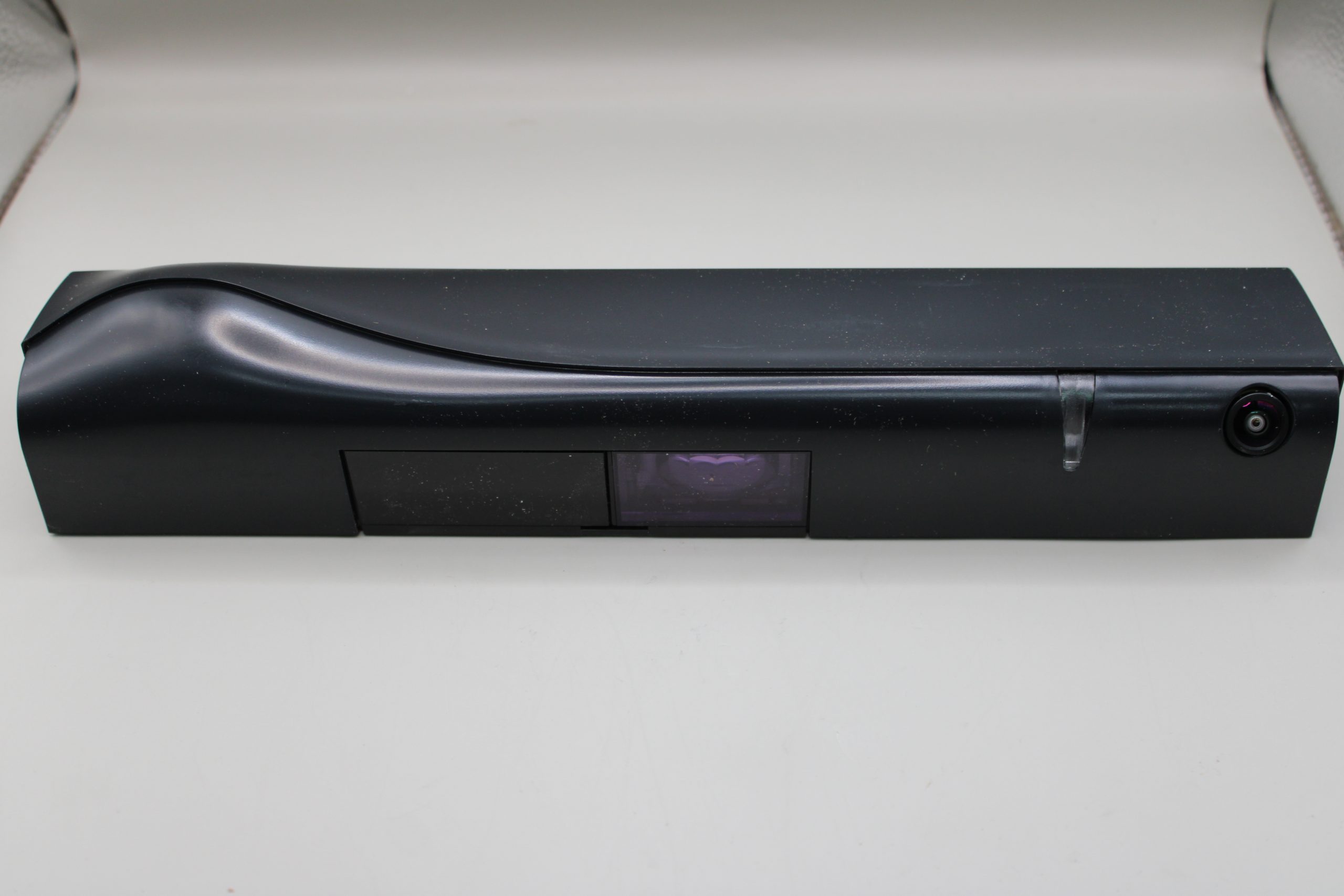

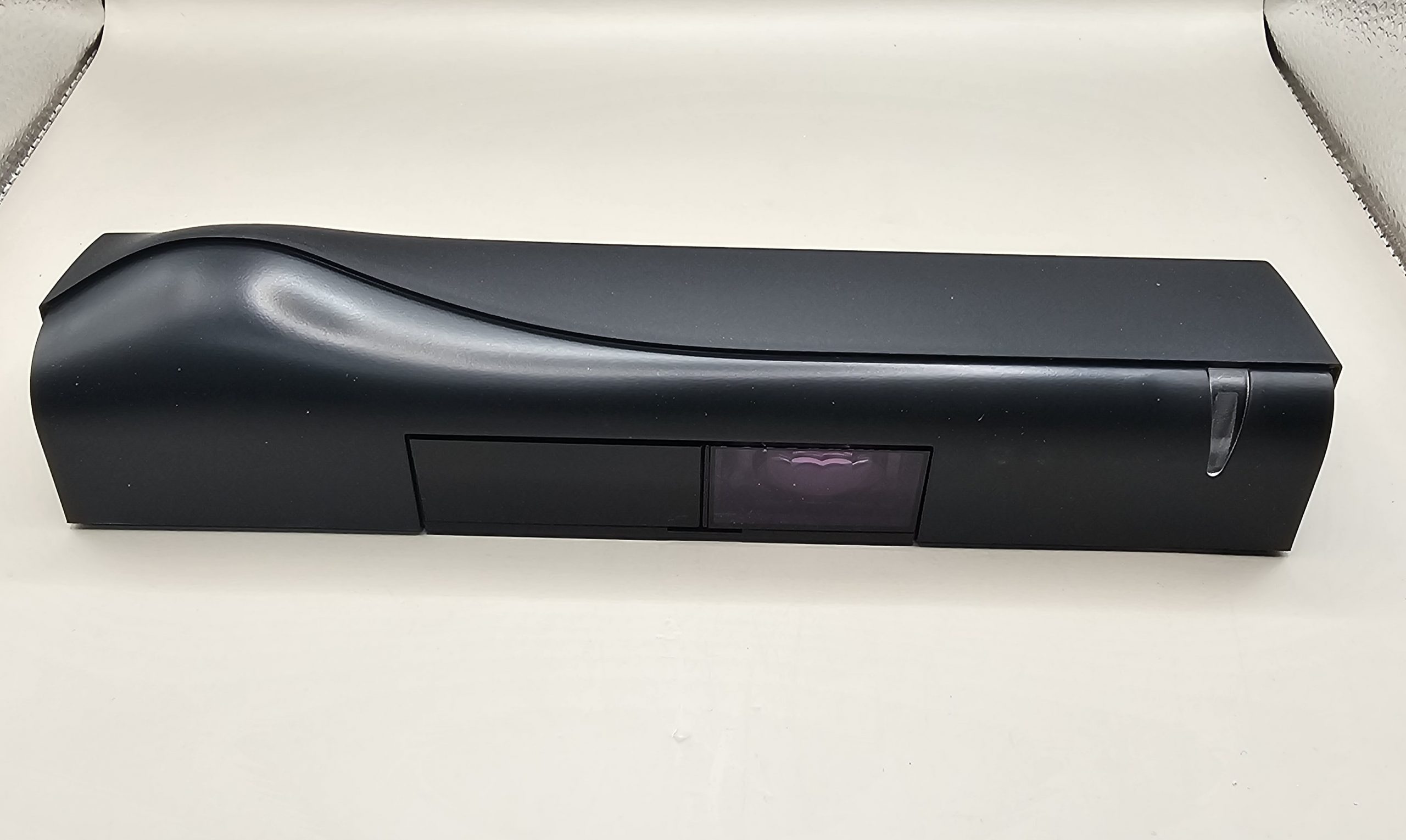

BEA IXIO video sensor for storefront automatic doors.

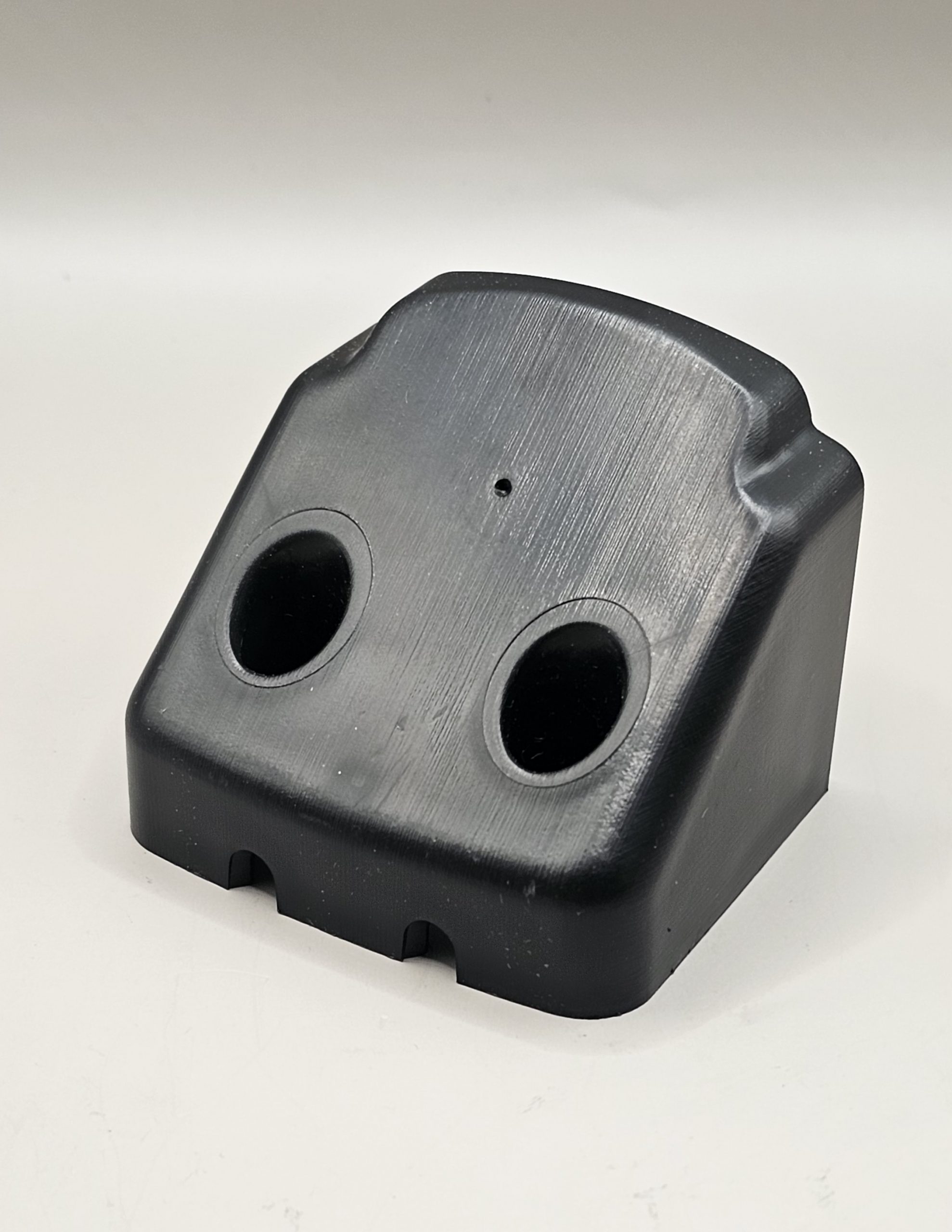

Replacement cover for BEA IXIO DT1 sensor – COVER ONLY

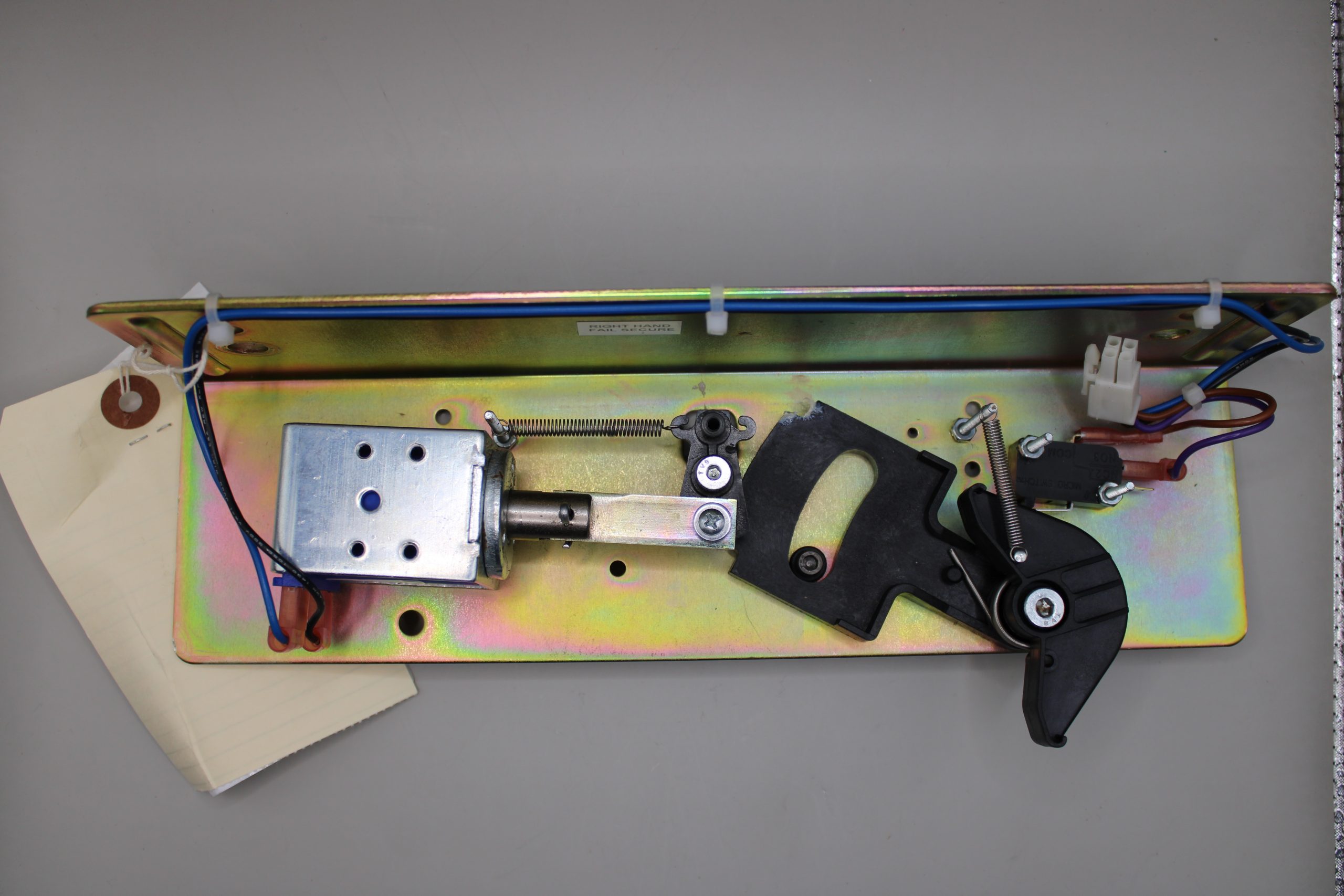

Stanley MC521 solenoid lock for Duraglide automatic doors, left hand

2 position switch for Stanley automatic doors. Used to put the door into reduced or one-way operation.

3 position toggle switch for Stanley automatic doors. For setting between auto/open/close.

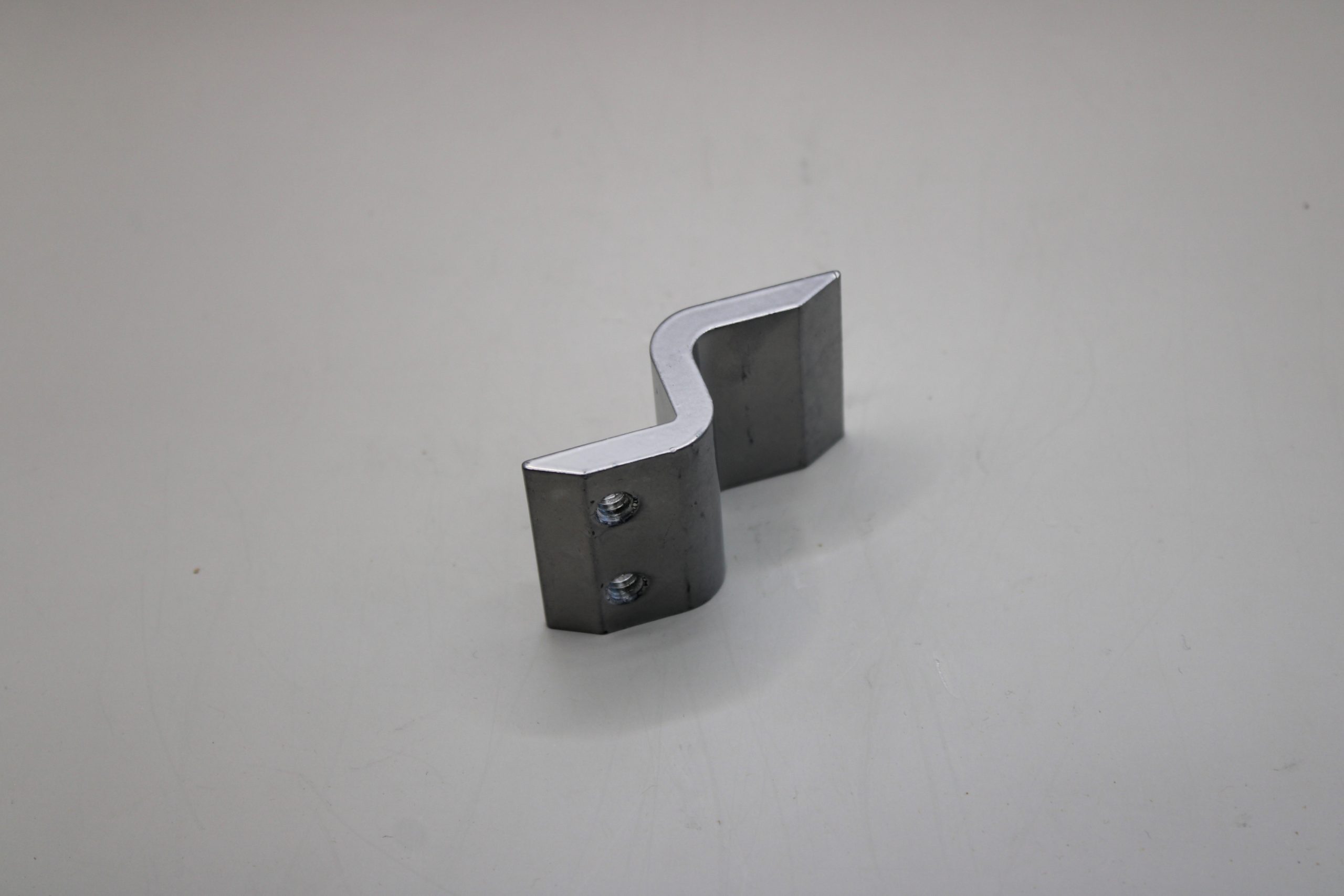

Interlock for Stanley automatic doors, medium stile. Z shaped interlock.

Interlock for Stanley automatic doors, narrow stile. L shape.

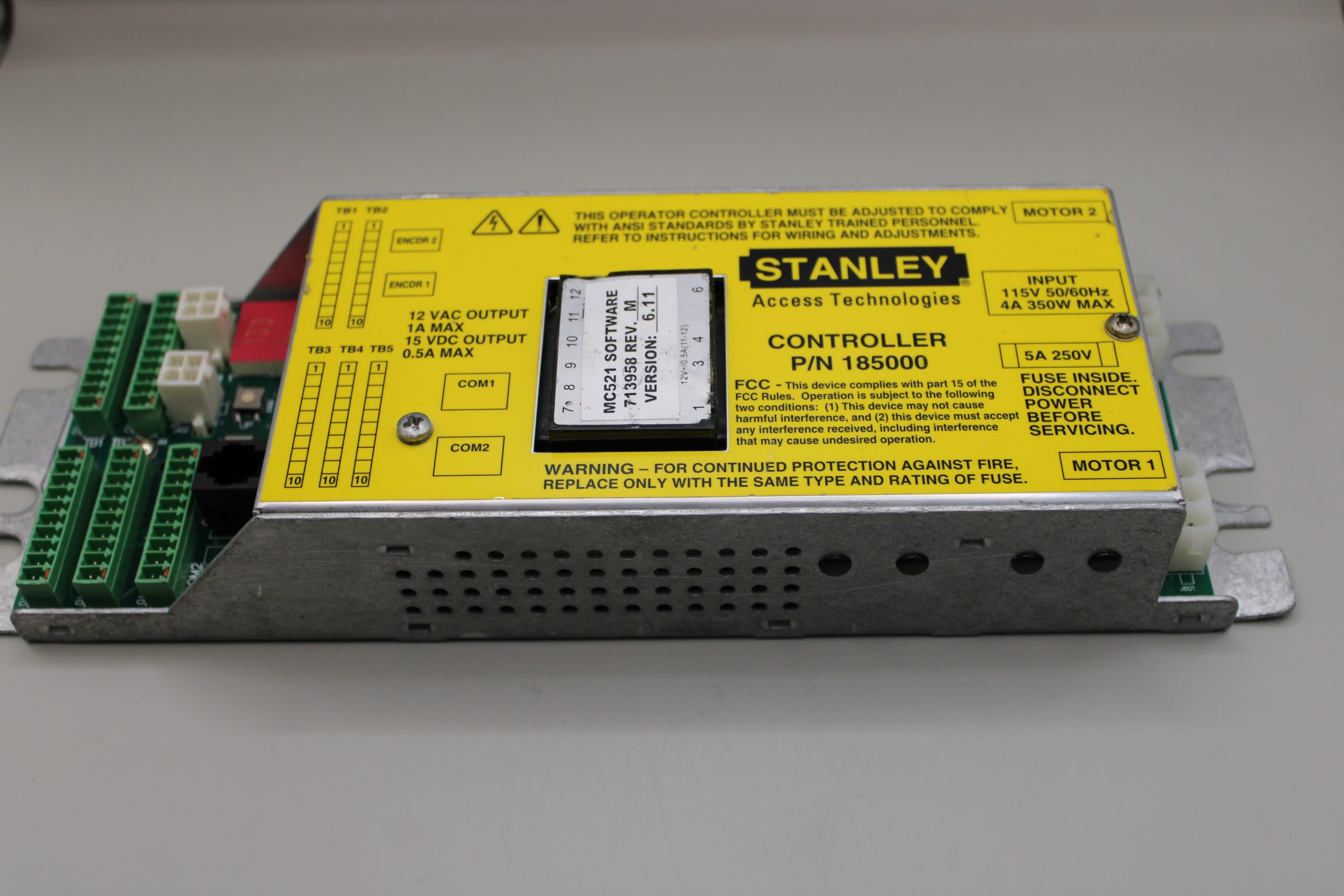

Control for Stanley Duraglide automatic doors at front of store. This is a core return item: the unit being replaced must be sent back using the included return label. Please note that we are not allowed to provide tech su… Read More

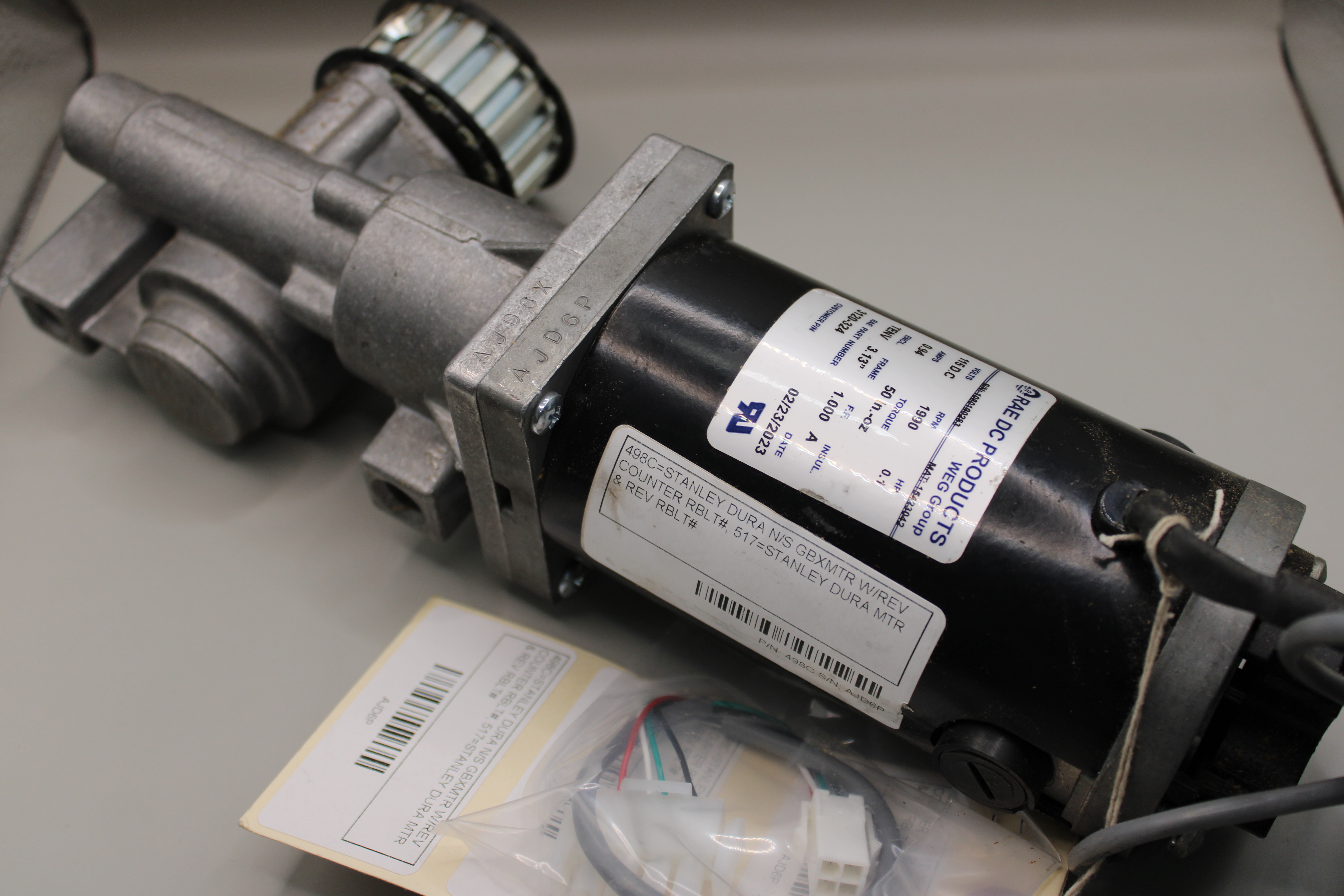

Motor for Stanley Duraglide storefront automatic doors. This is a core return item: the unit being replaced must be shipped back using the included return label. Please note that we are not allowed to provide tech support … Read More

Glass stop for Stanley automatic doors, beveled with gutter. 4ft length.

Glass stop for Stanley automatic doors. Beveled. 4ft length.

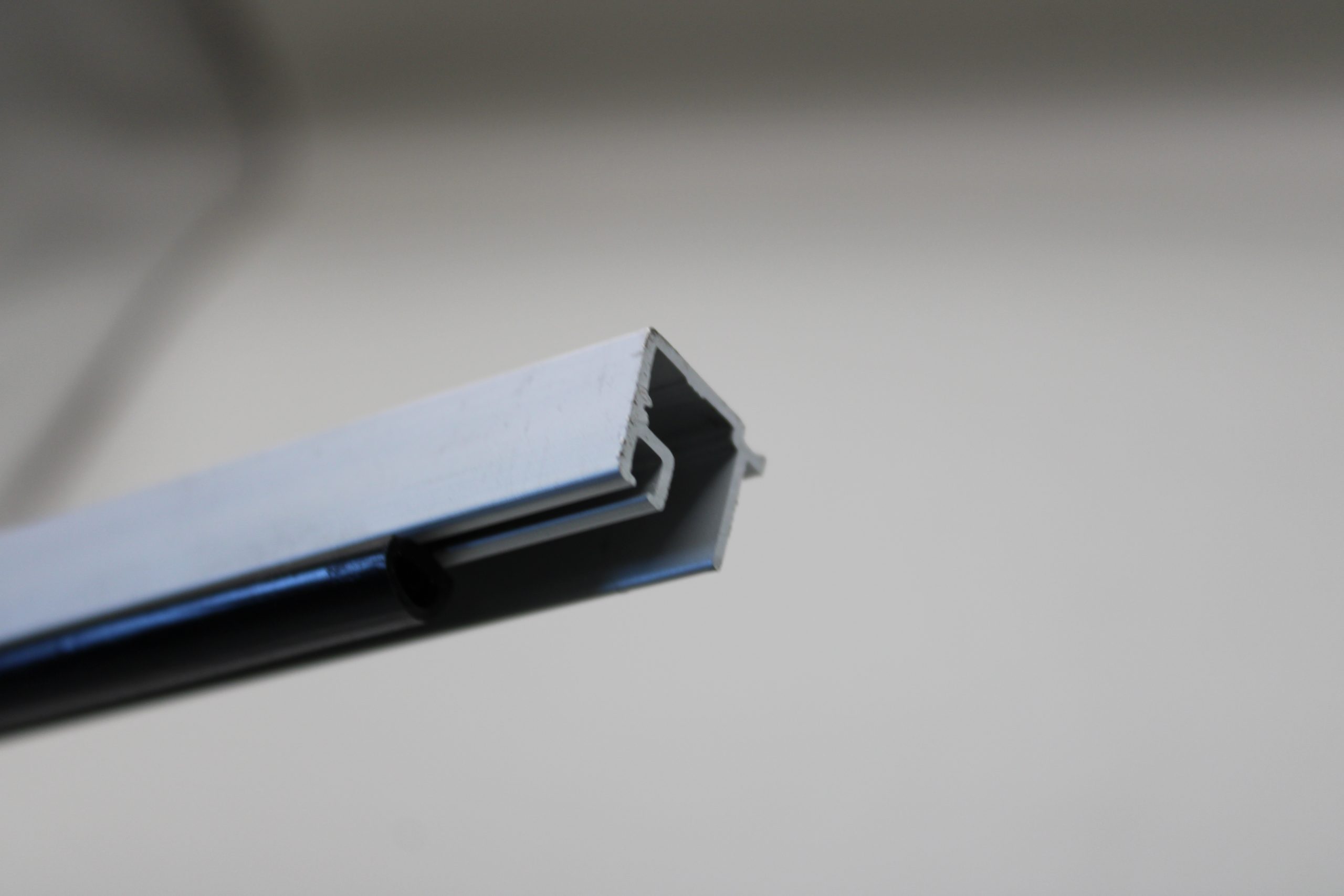

Glass stop for Stanley automatic doors, square. 4ft length.

Glass stop for Stanley automatic doors. Square with gutter. 4ft length.

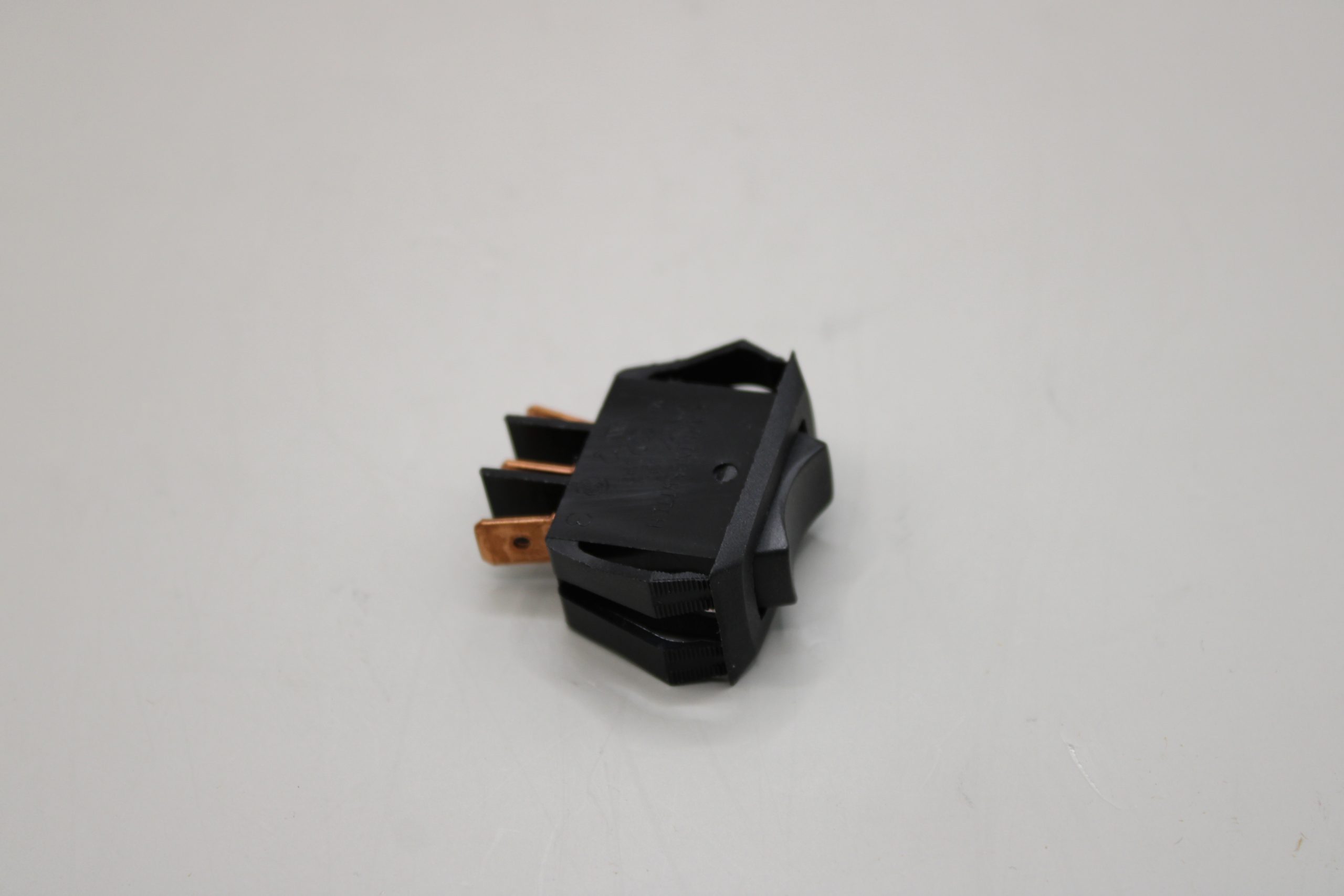

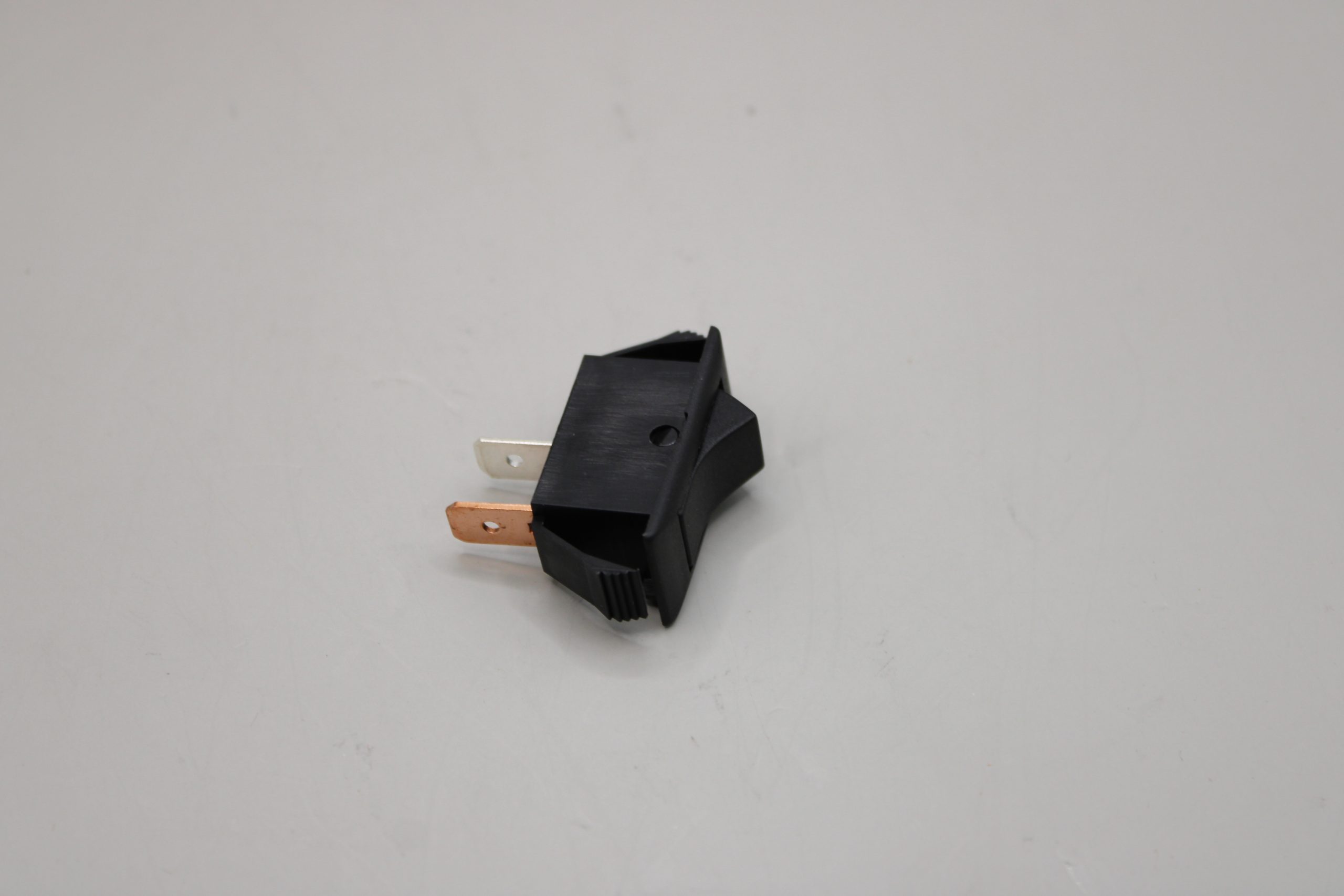

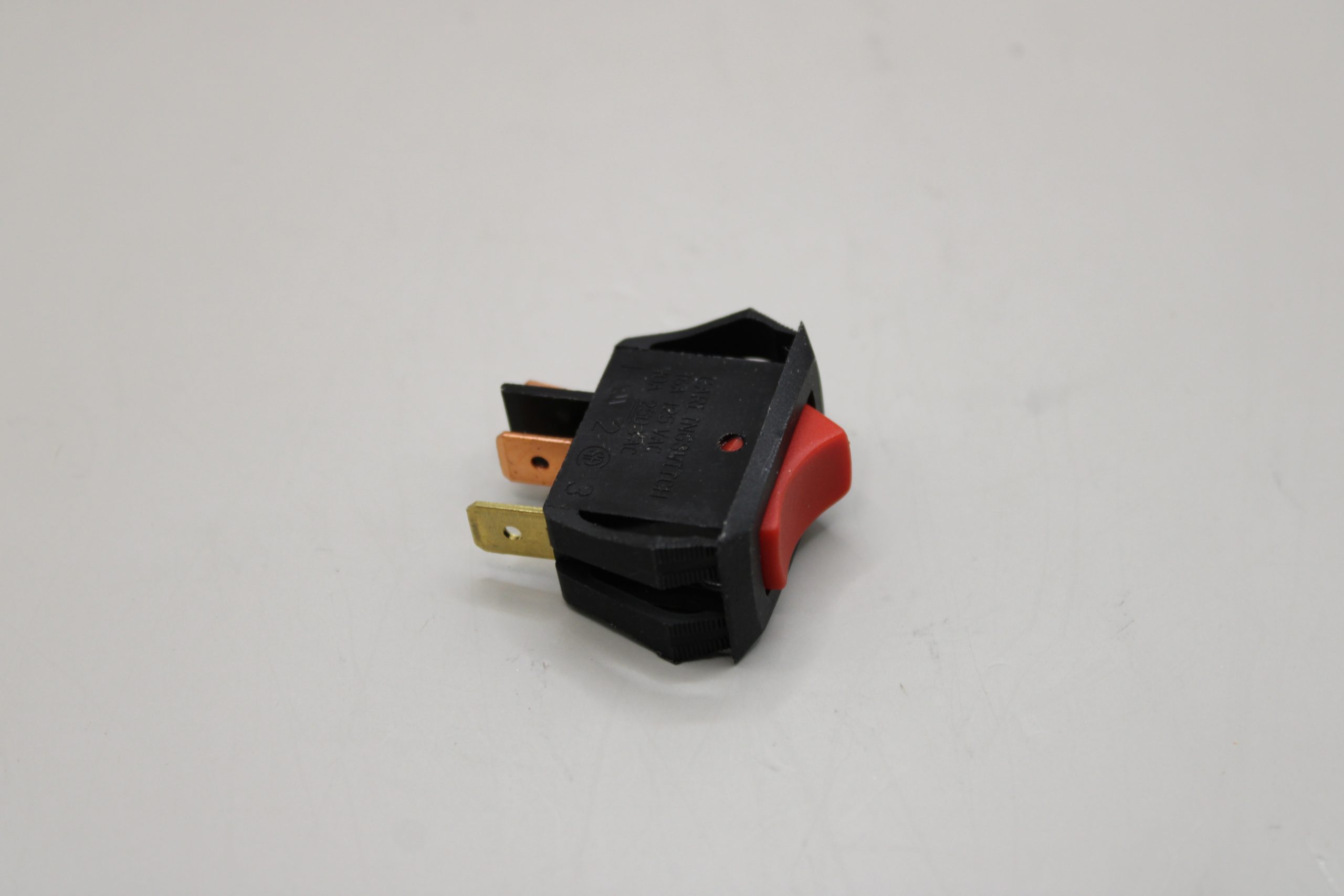

On/off toggle switch for Stanley automatic doors.

Stanley MC521 solenoid lock for Duraglide automatic doors, right hand.

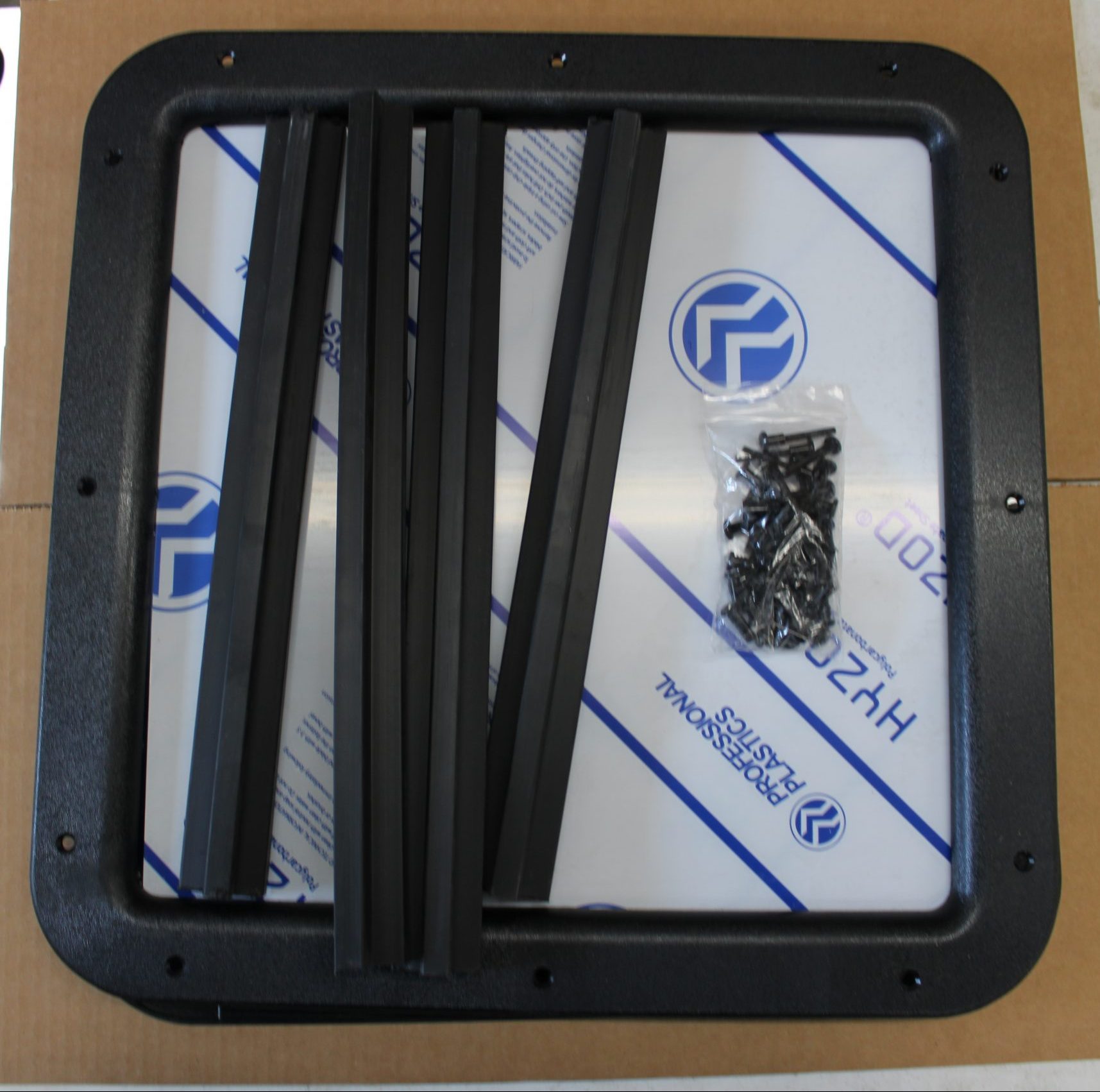

12 x 18 window kit replacement for Chase impact doors. Comes with mounting hardware, frame and plexiglass.

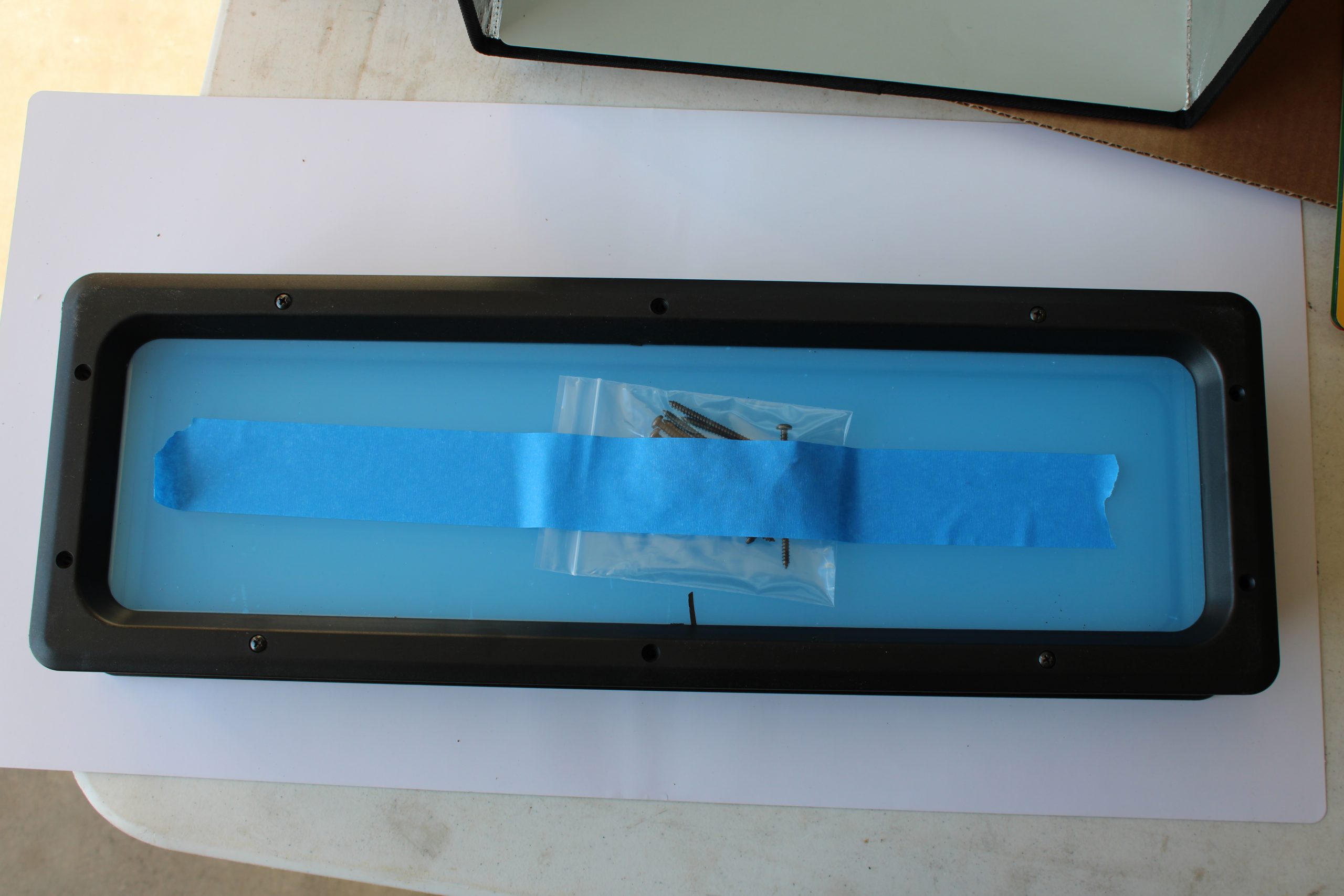

12 x 30 inch window kit for Chase impact doors. Comes with mounting hardware, frame and plexiglass.

Chase 12×18 window kit hardware pack (hardware only)

Chase 12×30 window kit hardware pack (hardware only)

Bottom hinge guard for Chase impact doors

Standard size seal for back edge and bottom of Chase impact doors.

Cafe Doors for Chase. Contact us for a quote orders@tristatecommercialdoors.com

24” x 36” impact door bumper Click Here to view Chase products if you are not a GMT

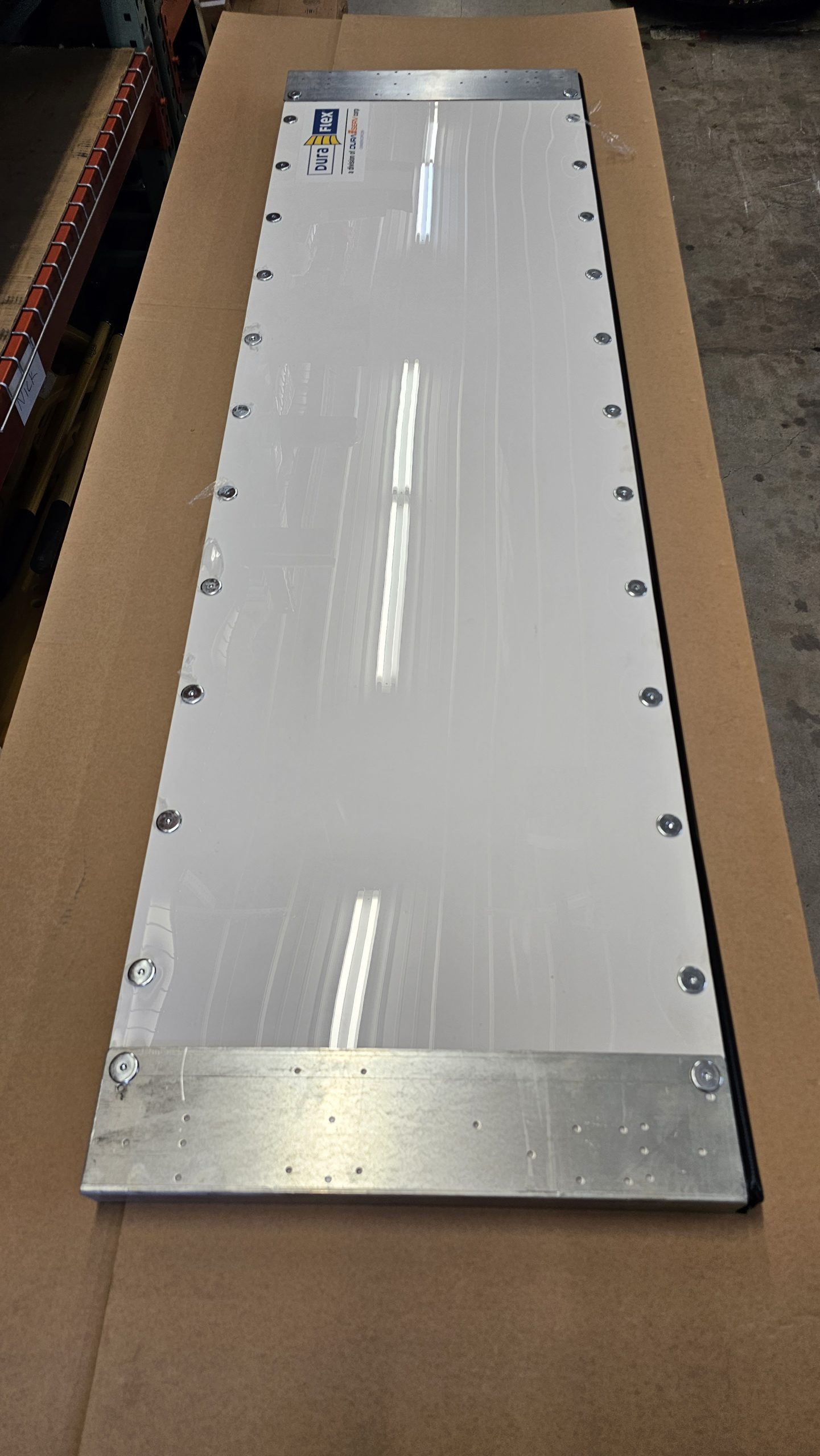

Chase impact bumper for 4ft wide door panels

Chase door bumper hardware pack

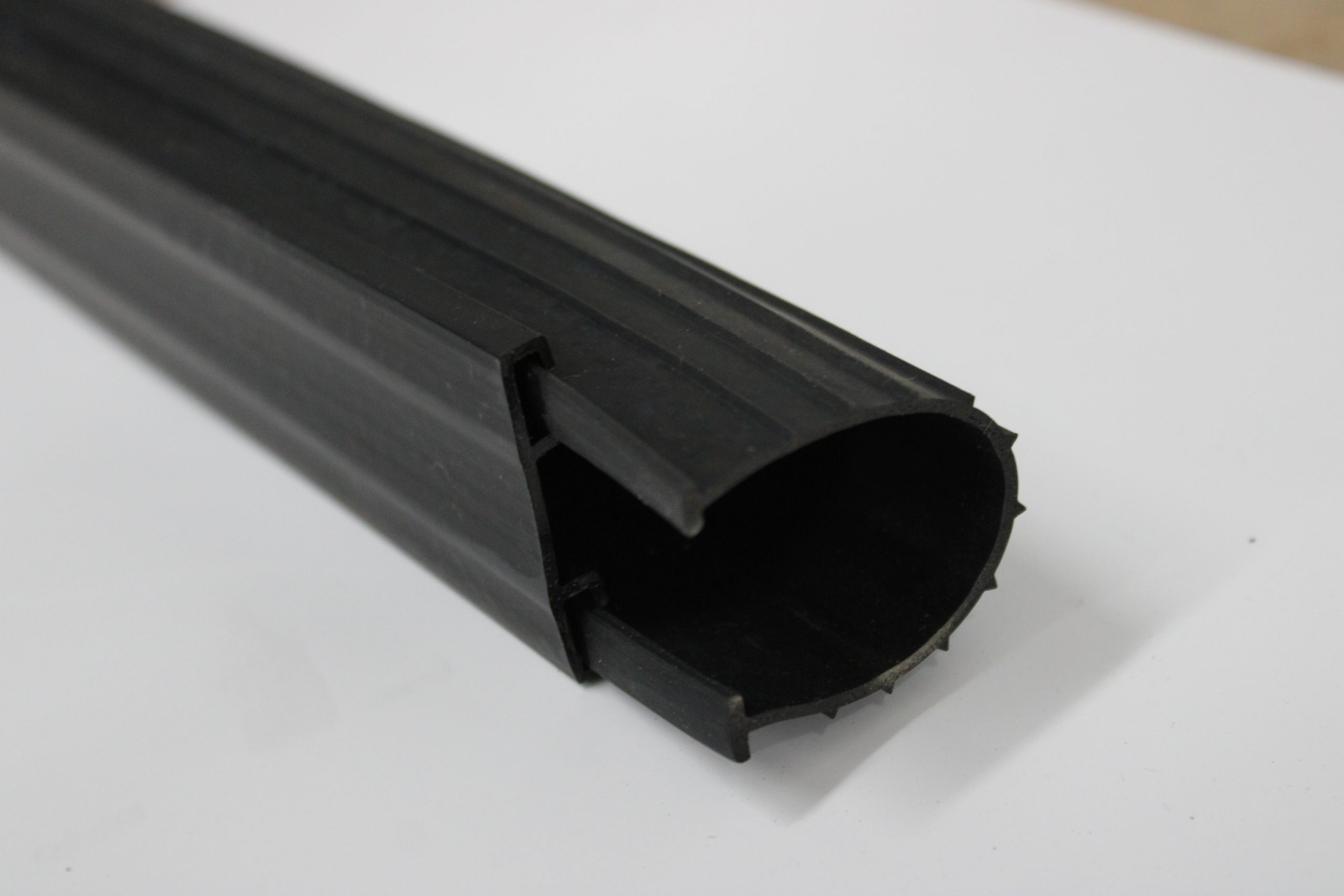

Standard leading edge seal for Chase impact doors.

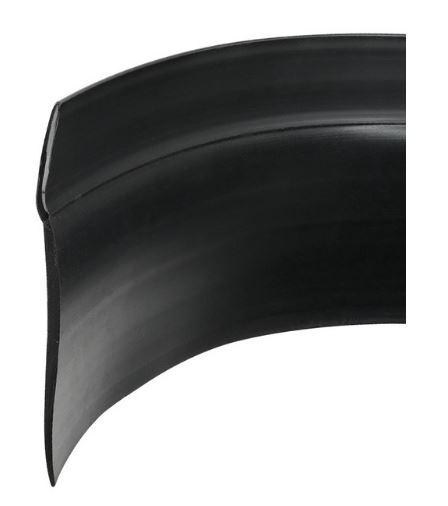

Standard top seal for Chase impact doors. Comes in 34.75inch sections. 2 needed for 6ft wide openings.

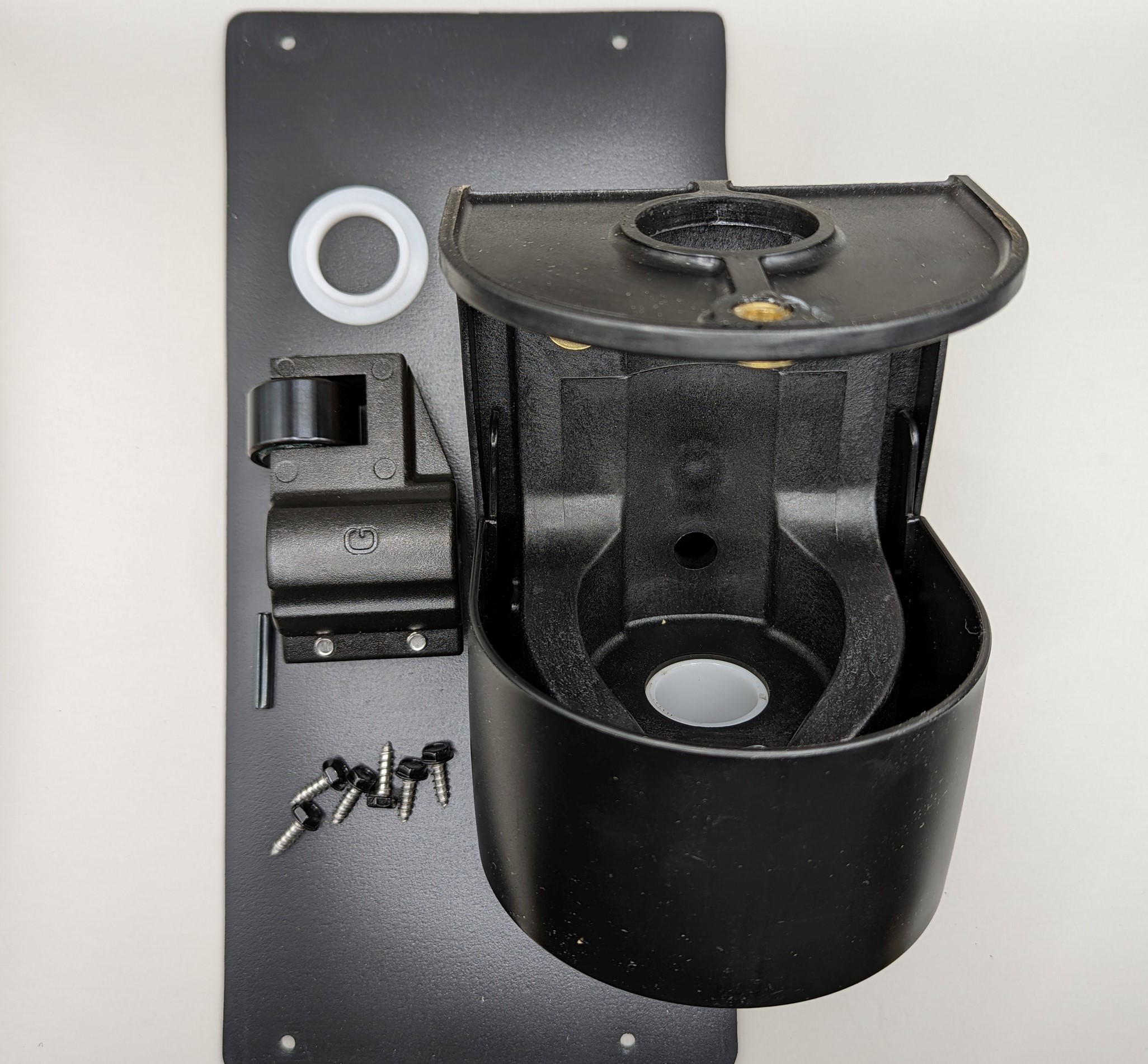

Complete V-Cam assembly. Includes hinge body, roller assembly, seal retainer and seal.

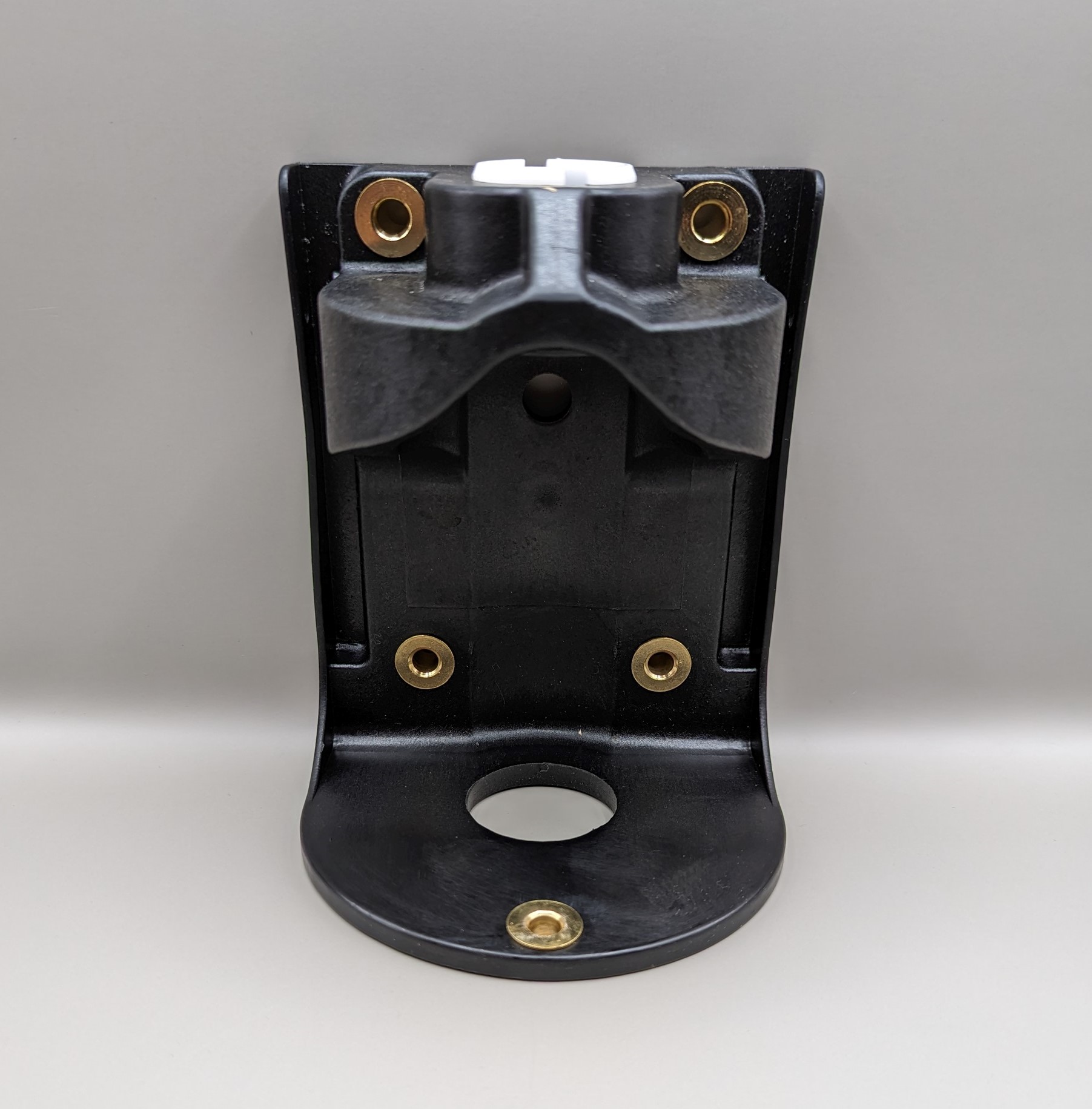

Upper V-cam hinge body. For use if the roller assembly is in good condition, but the body has been cracked or pulled out of the wall.

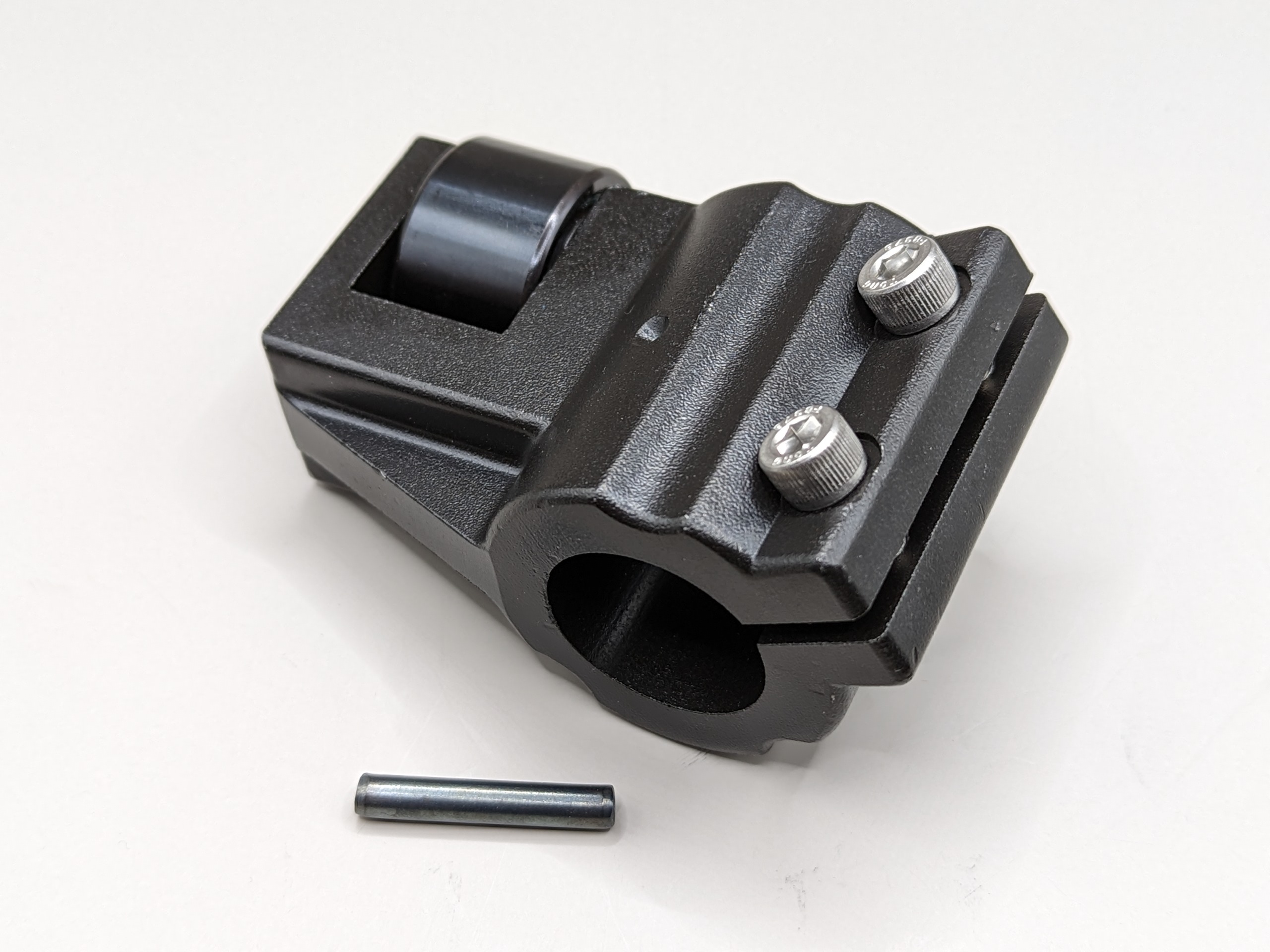

Impact door roller assembly. This is the roller assembly only.

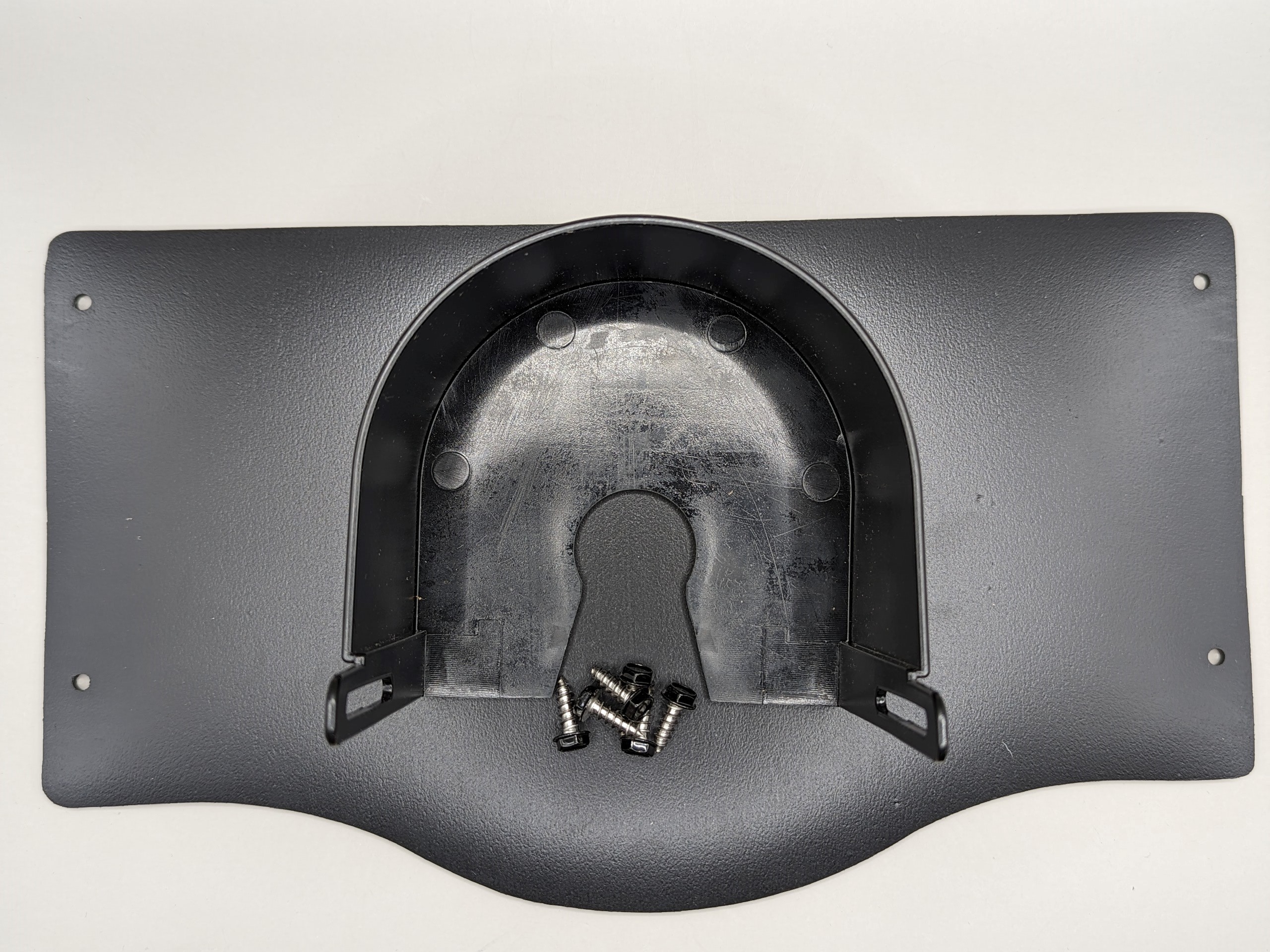

V-Cam Seal Kit. If the V-Cam body and roller are both in good condition, but the seal is missing, this is the part to get to seal it back up. Includes bottom seal retainer and flexible hinge seal.

Chase 16×16 Window Kit

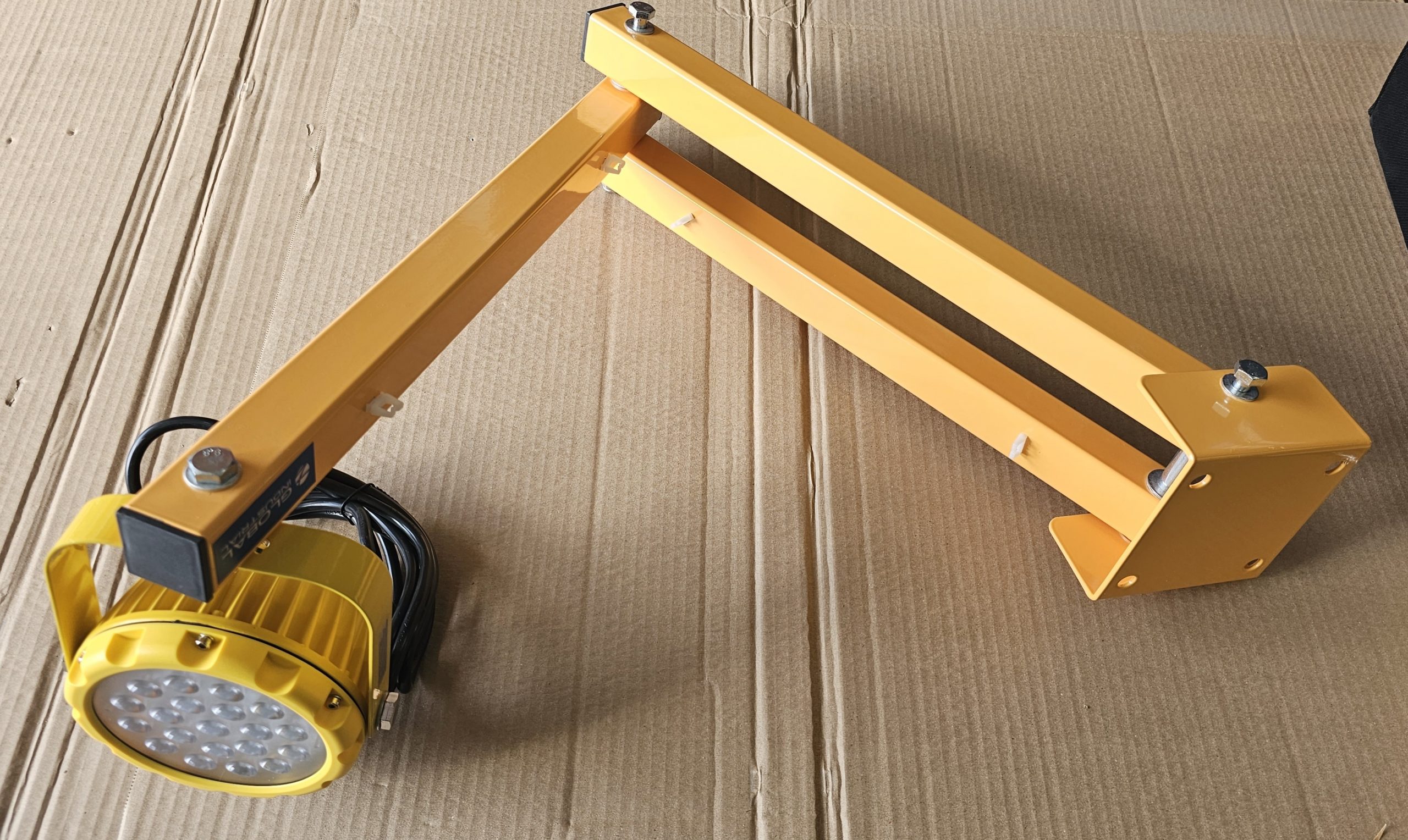

Dock light assembly, LED head, 40\” arm

Dock leveler push button station, momentary. For Nordock, Serco, Poweramp, McGuire.

Seal kit for standard dock levelers. Comes with (2) 7’ brush seals, 90 degree angle

Dock light arm, 40”

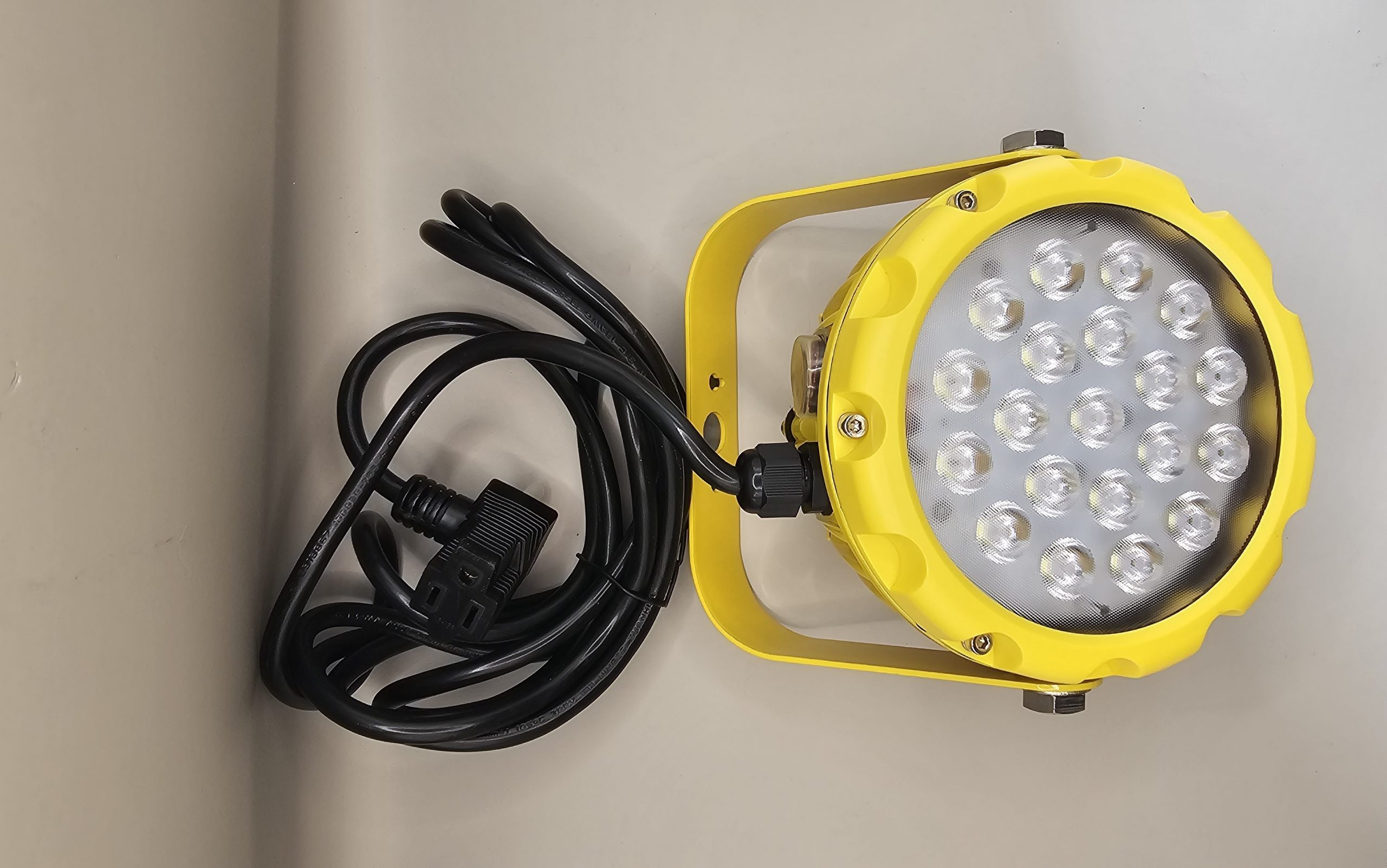

LED Dock light head, 40w, 4900 lumen, head only

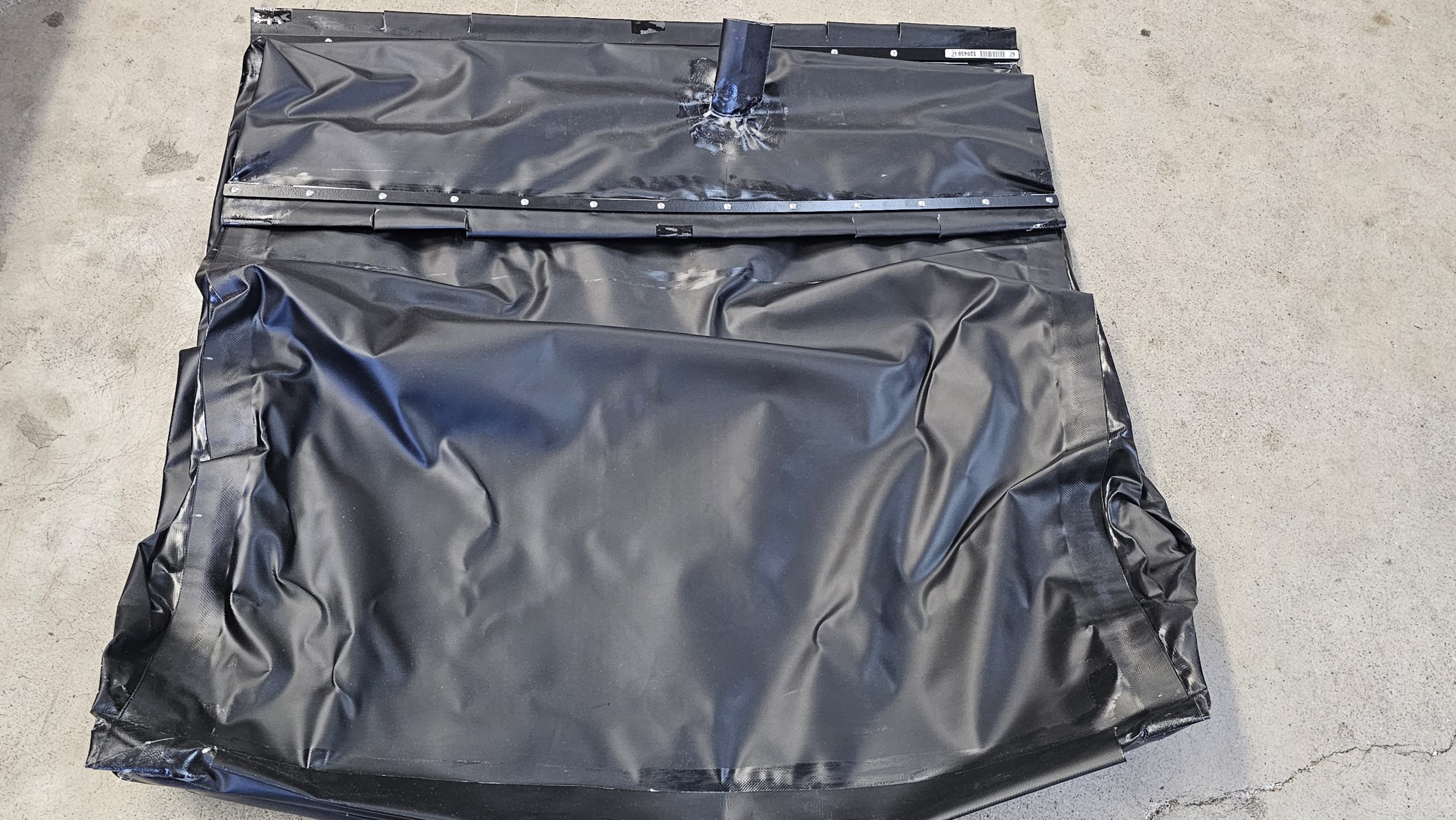

Replacement airbag for Nordock AD and ADF series air powered dock levelers.

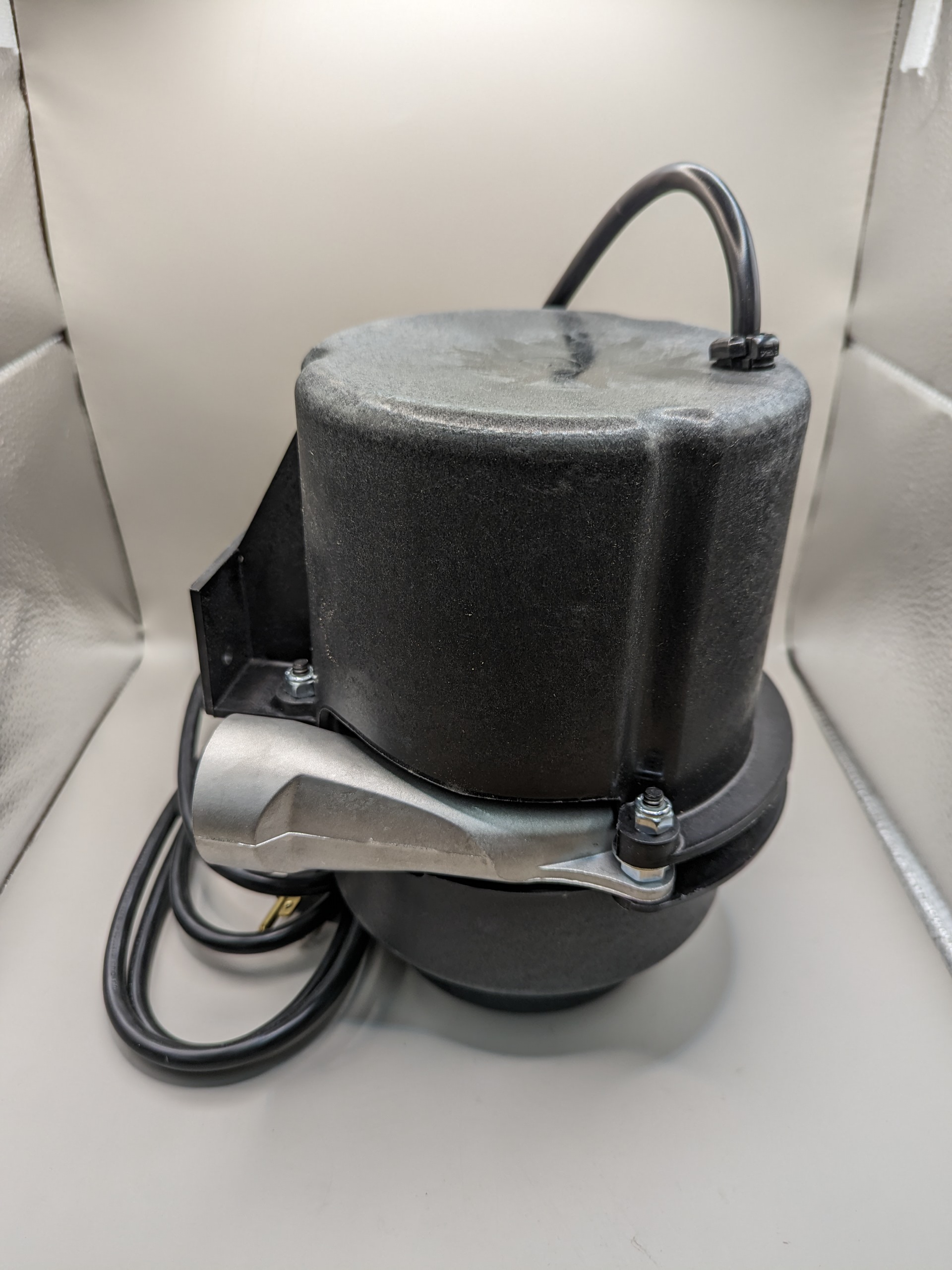

Blower motor for Nordock AD and ADF dock levelers.

Nordock ADF drive chain, #60

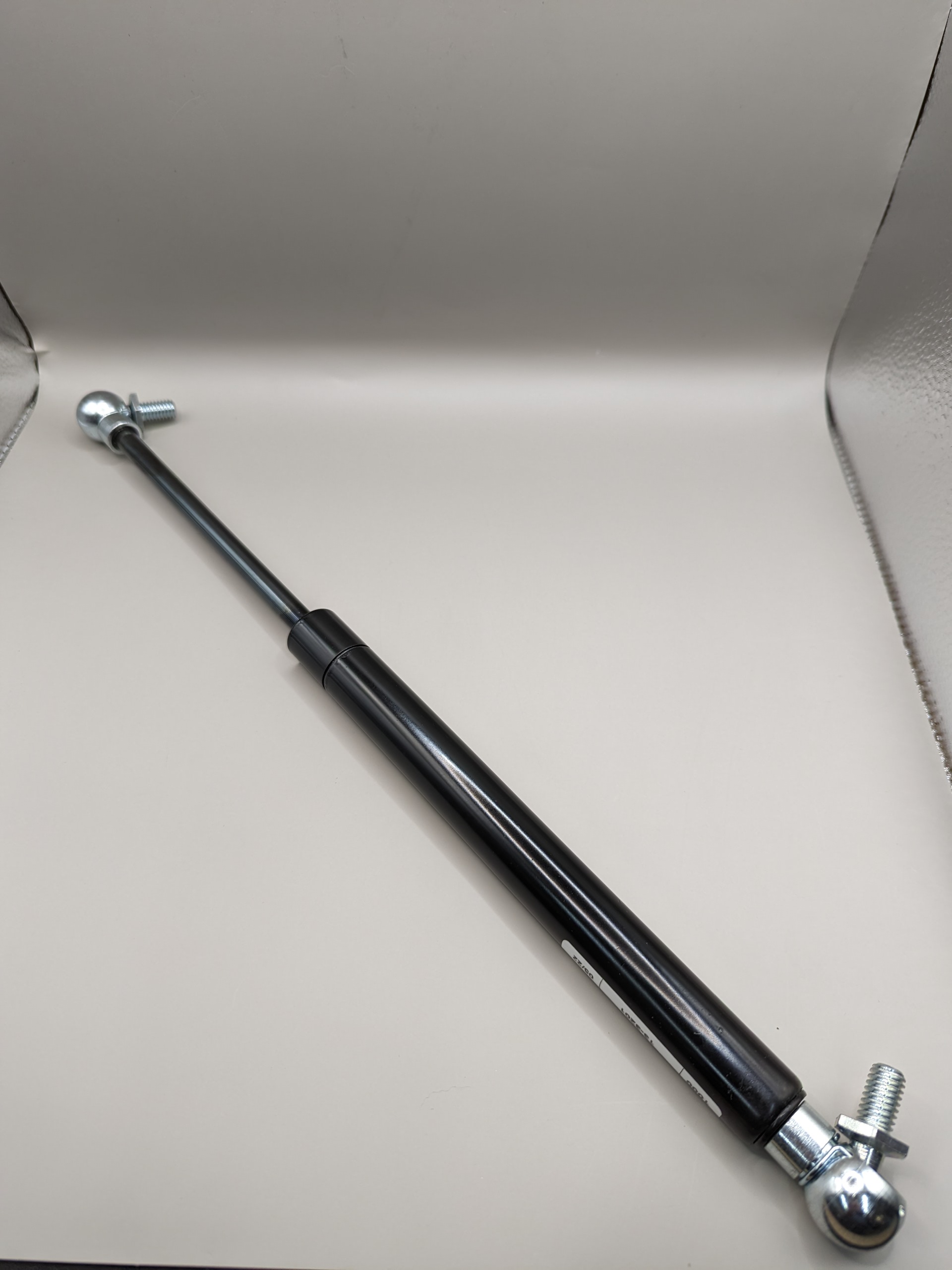

Lip assist gas spring for edge of dock Nordock levelers.

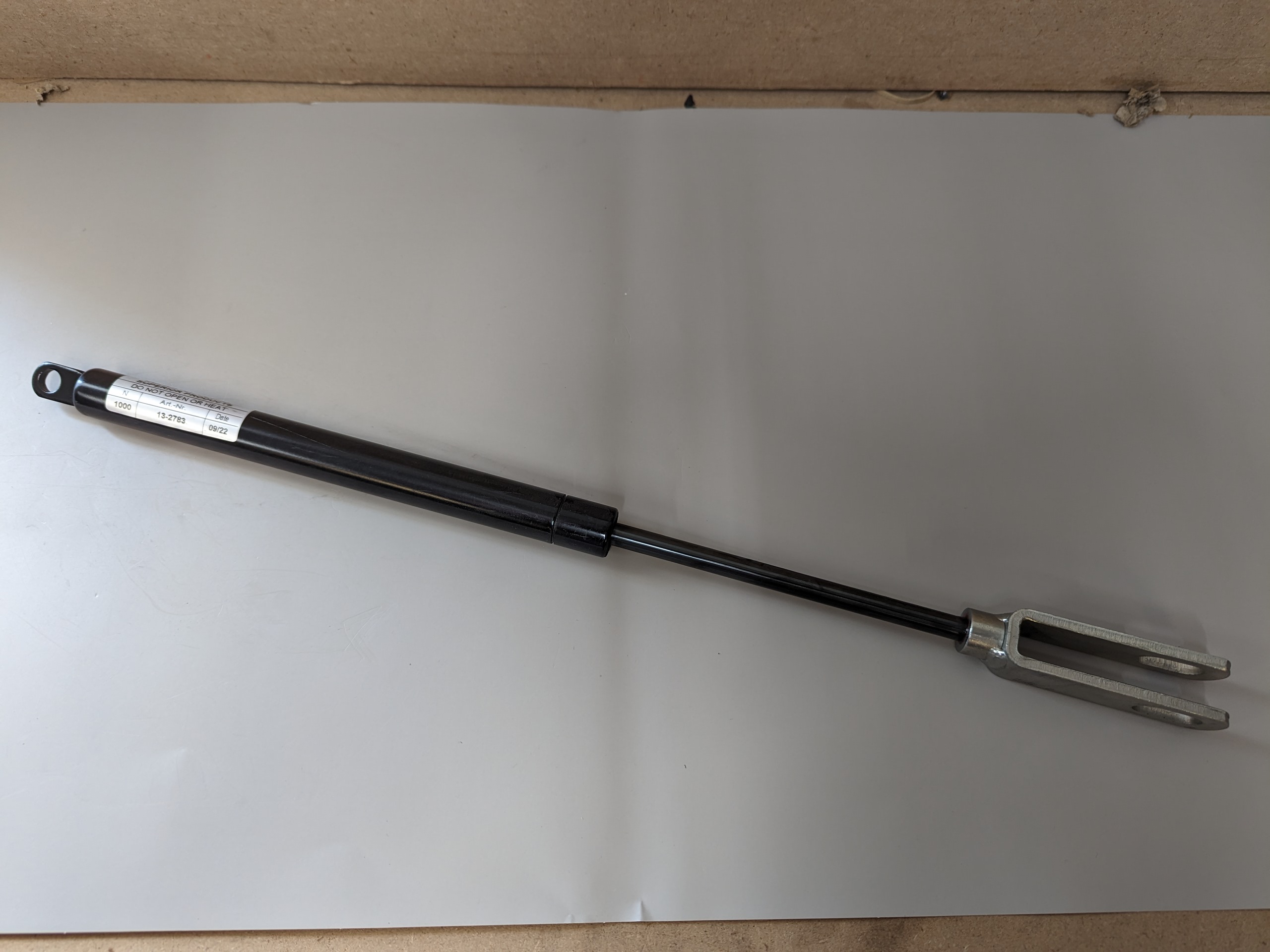

Nordock ADF lip assist gas spring

Nordock, lip extender assembly, complete assembly for ADF dock levelers

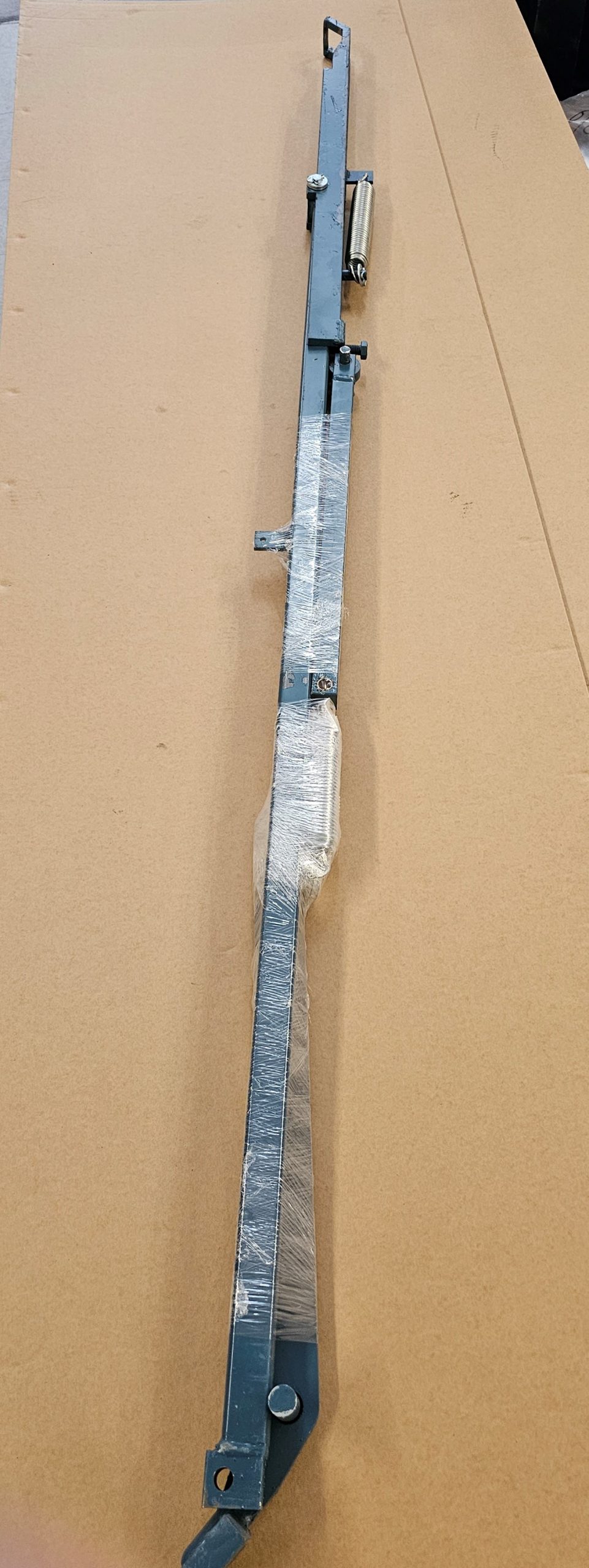

Nordock maintenance strut, for holding up leveler while cleaning or repairing. Safety bar.

Nordock Master Link for #60 chain

We are able to source parts for numerous other brands of dock leveler. Kelley, McGuire, Poweramp, Serco, DLM and more. Contact us with pictures of any labels you can find on the leveler as well as pictures of the parts that need r… Read More

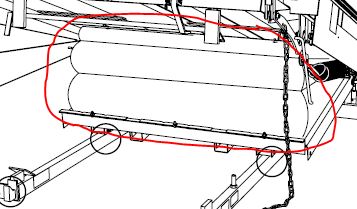

Poweramp airbag for dock levelers

Poweramp AP series leveler blower motor

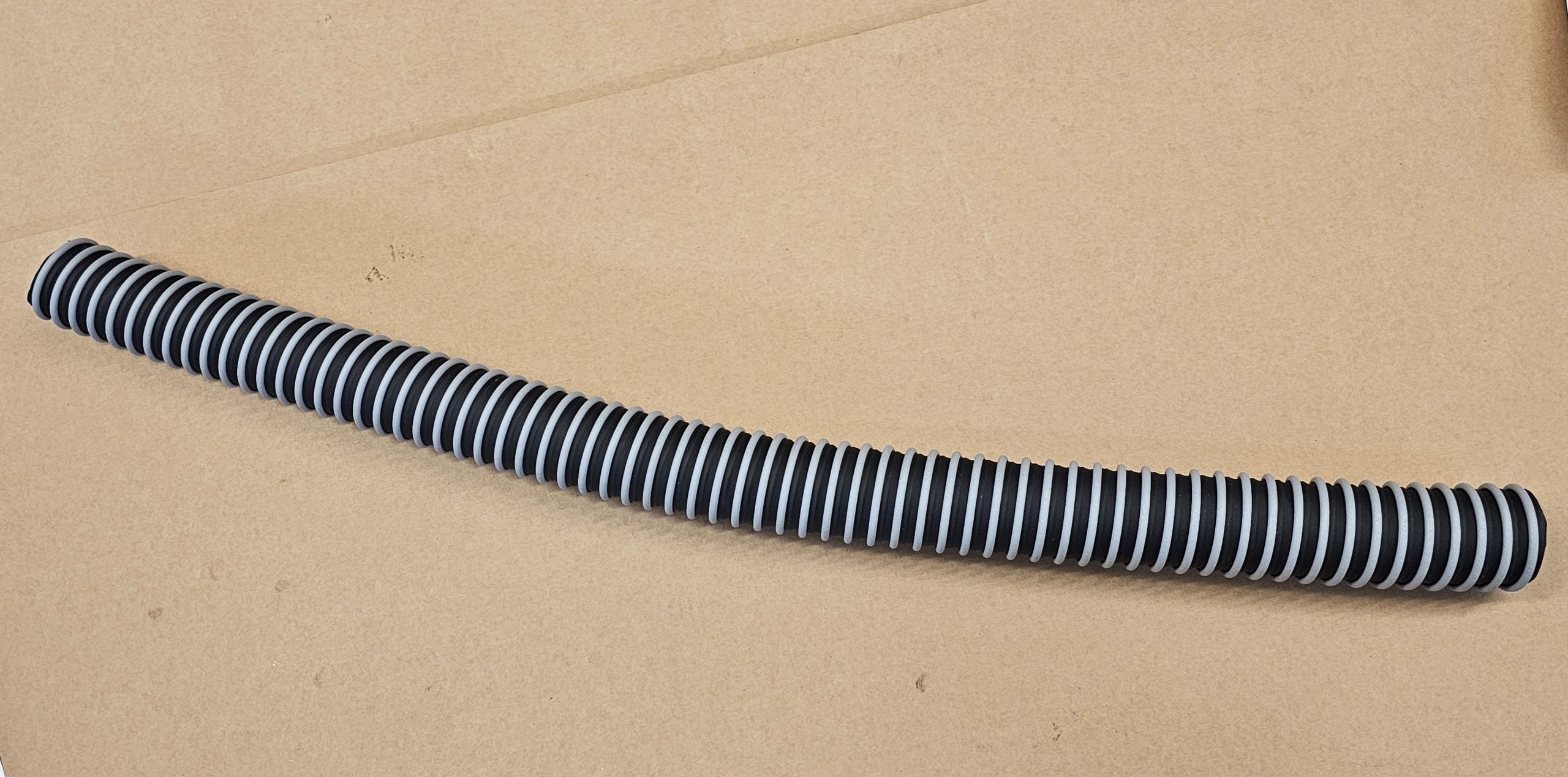

Poweramp AP Series, connection tube between airbag and blower motor, semi-rigid

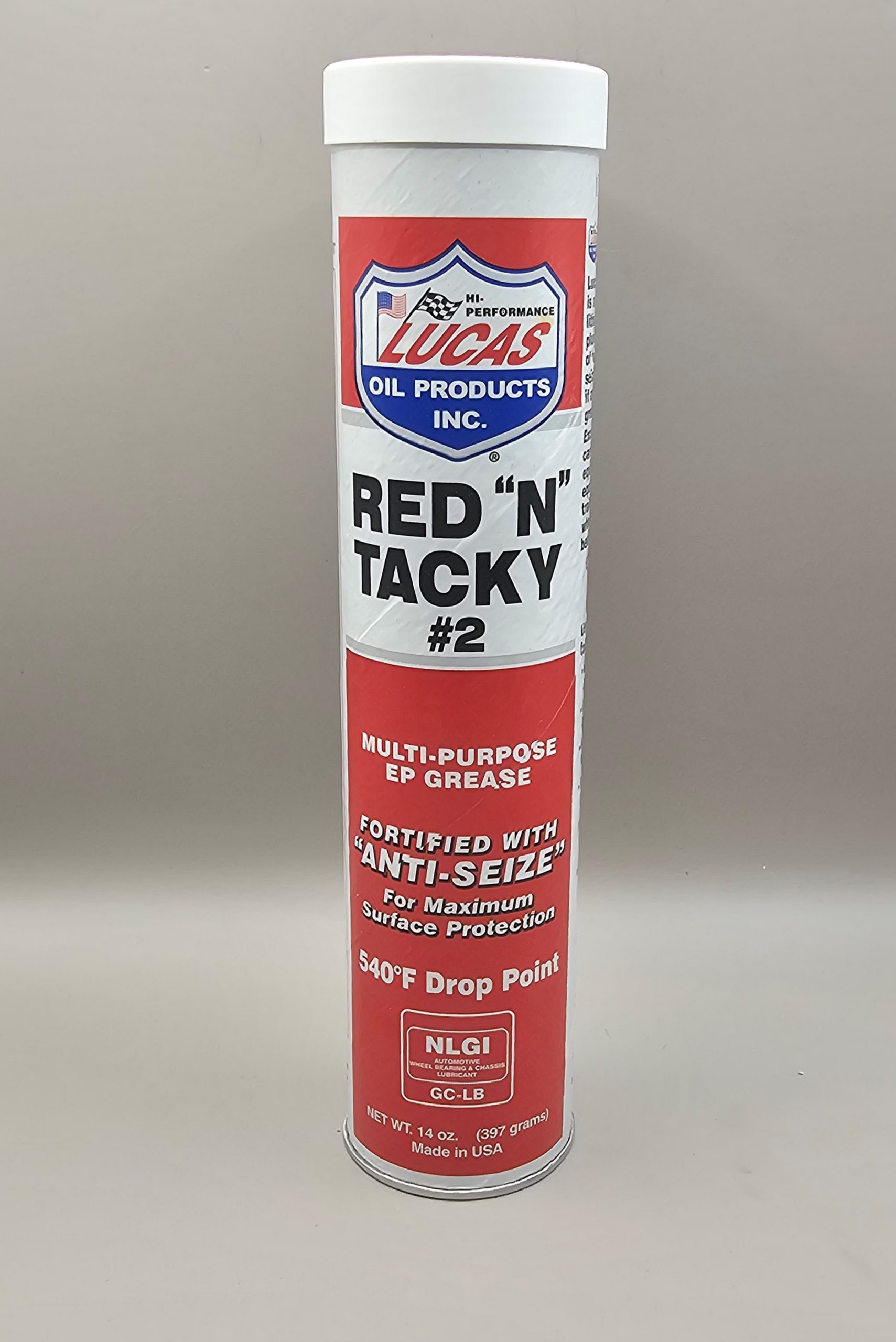

Lucasoil Red n\’ Tacky grease for dock levelers

Serco dock leveler blower motor for airbag dock leveler

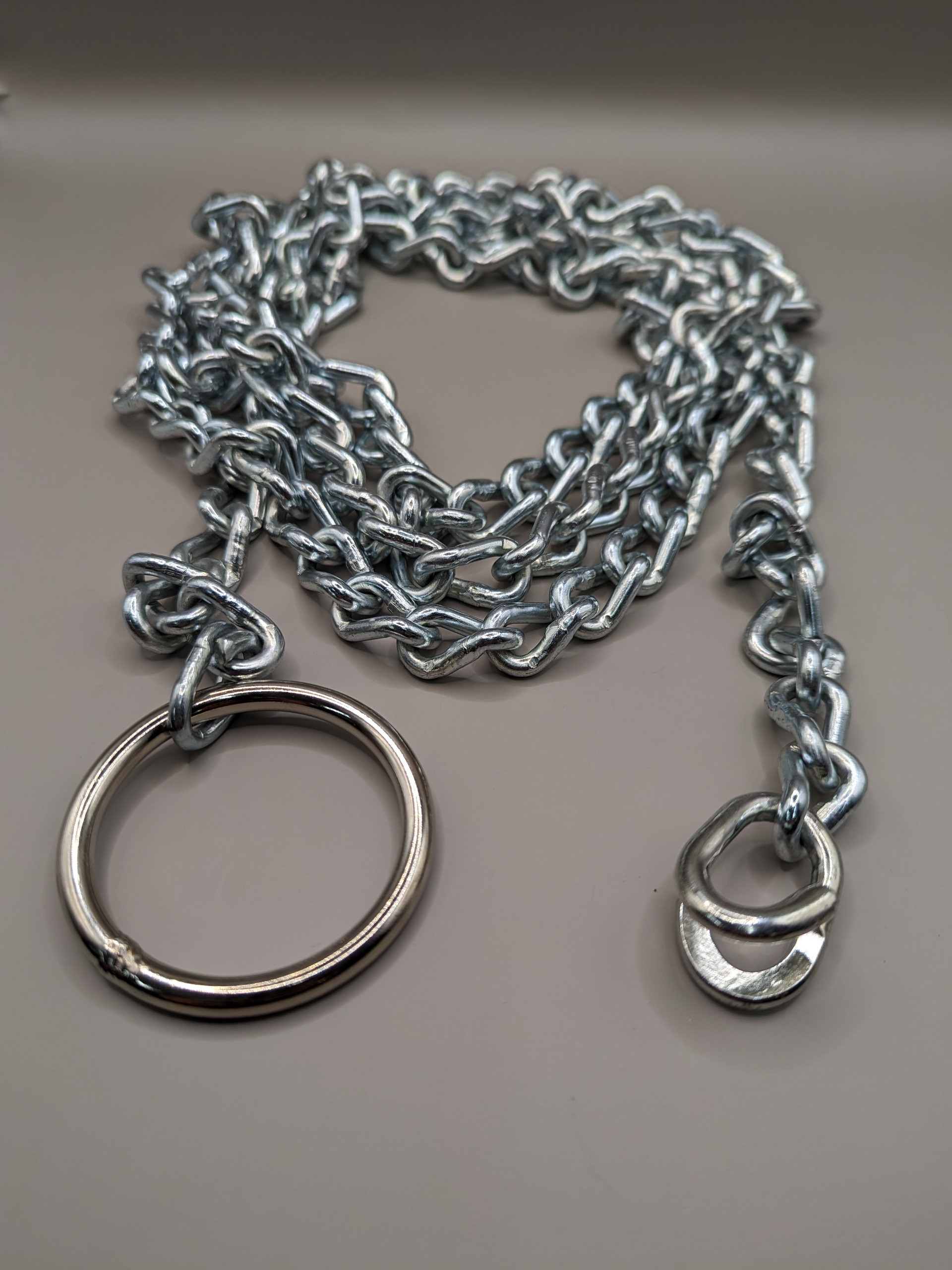

Serco release chain for 8-10ft mechanical levelers

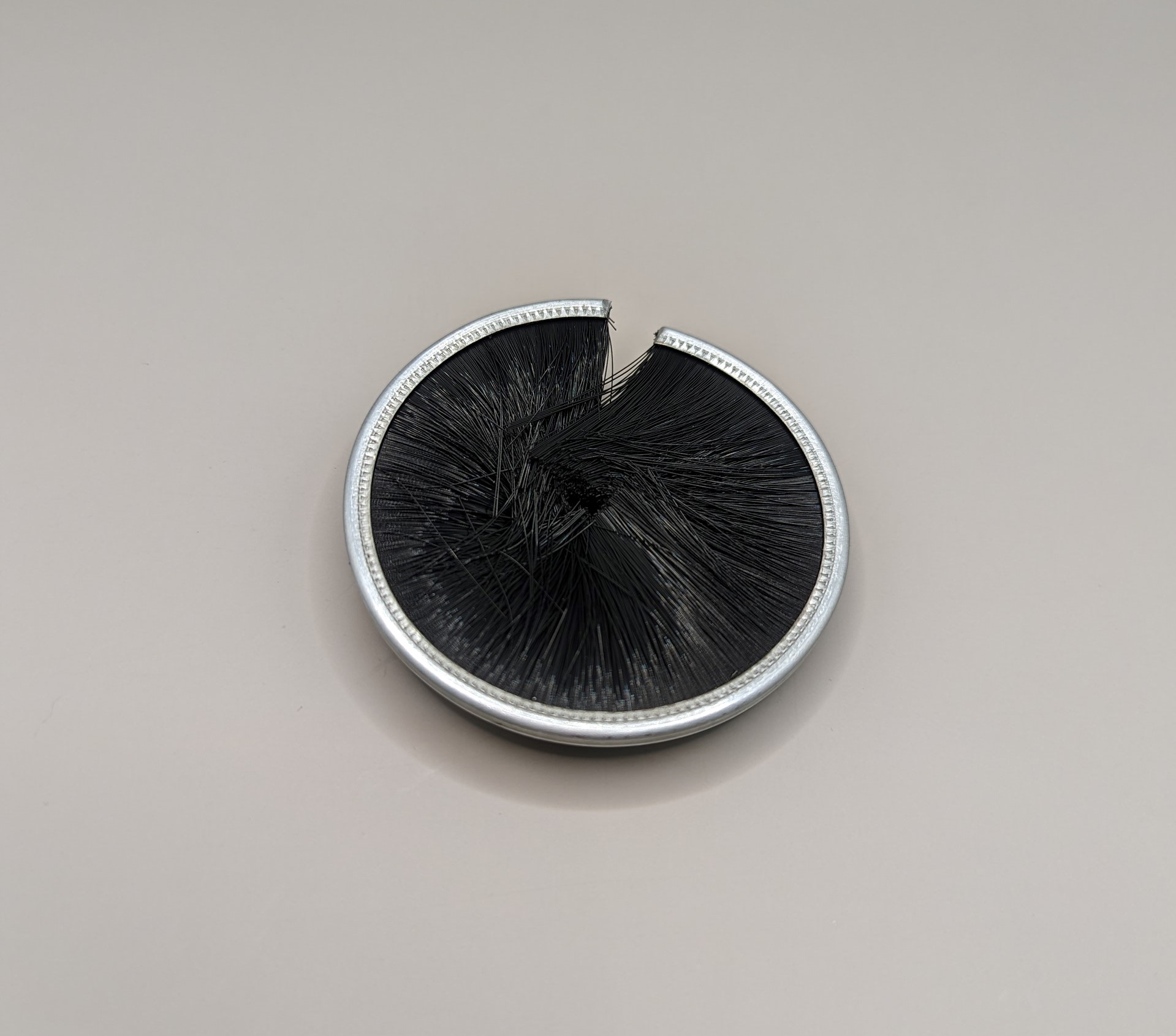

Cup seal for loading dock pull chains. Universal fit.

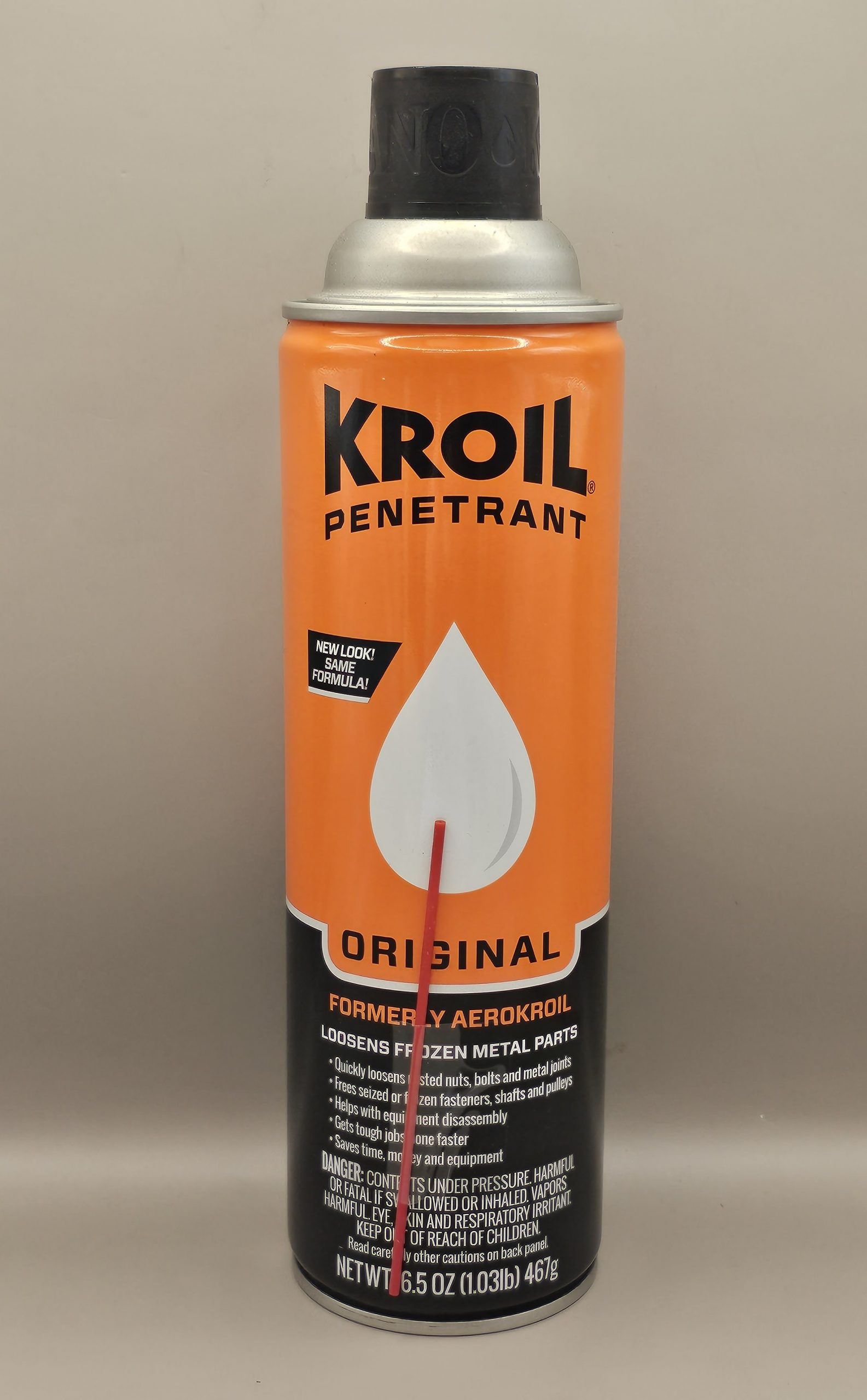

Kroil penetrating oil, 16.5oz

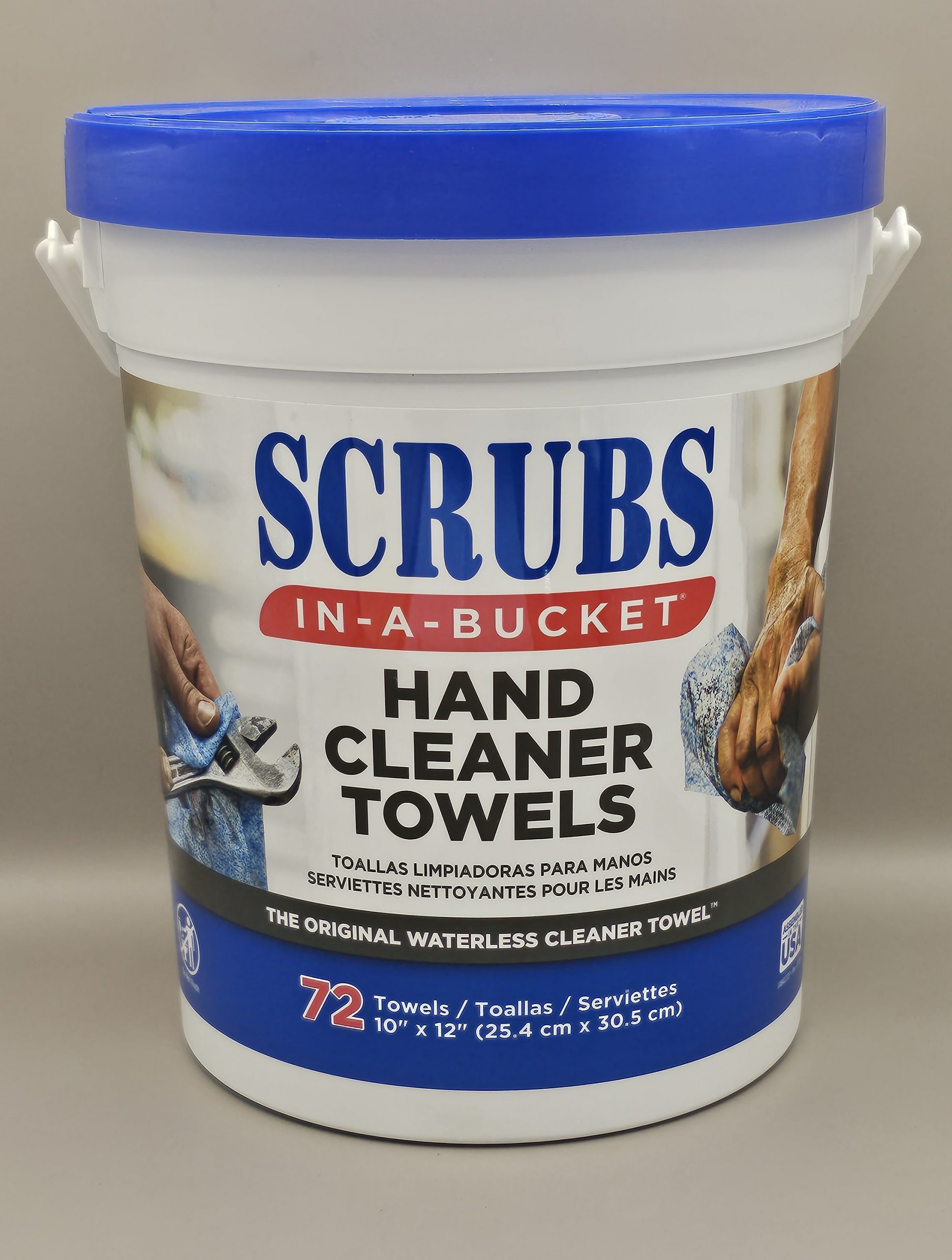

General purpose scrubbing towels to remove grease and grime. 72 towels per tub.

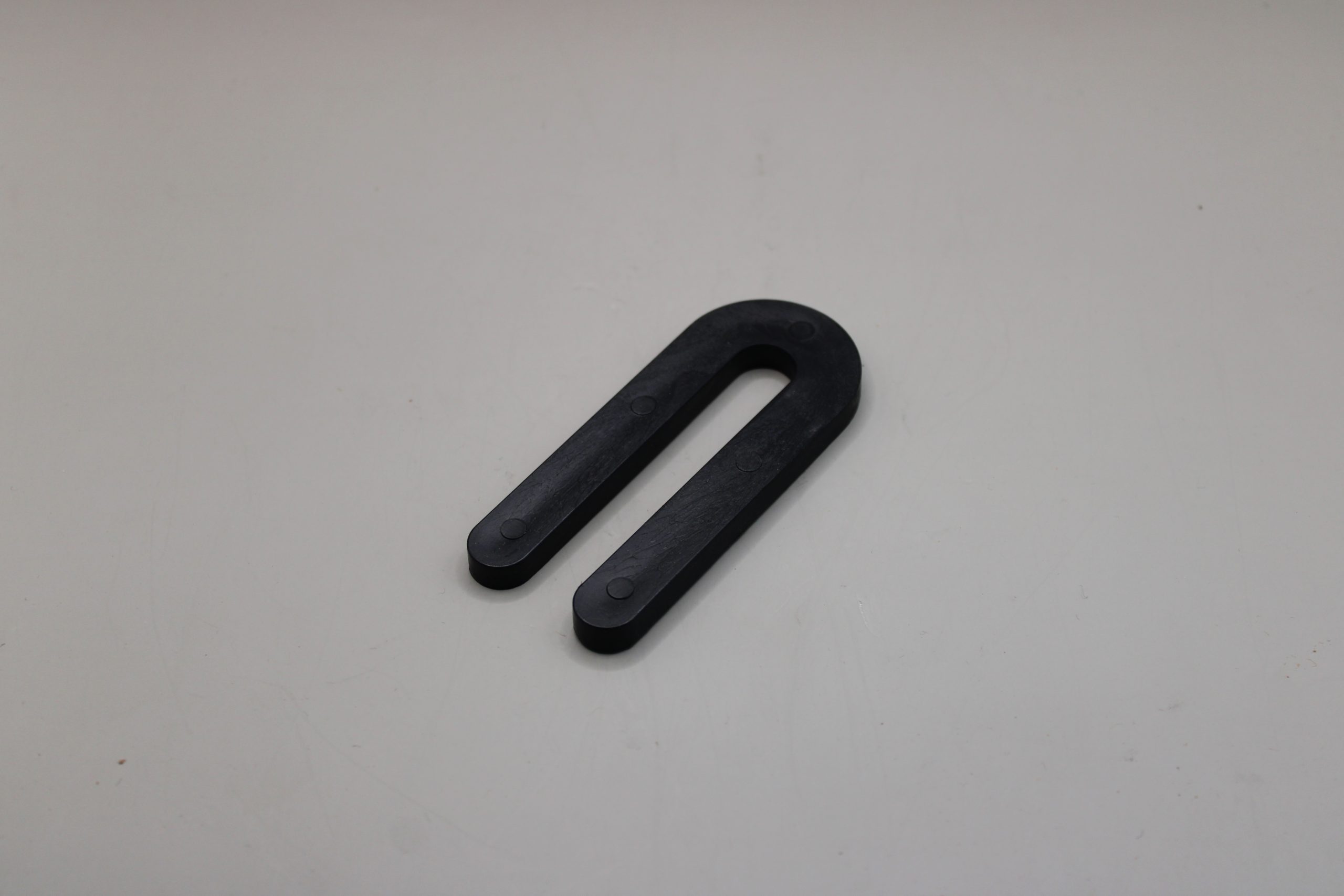

Shim for door installation, 1/4in thickness, 10 pack.

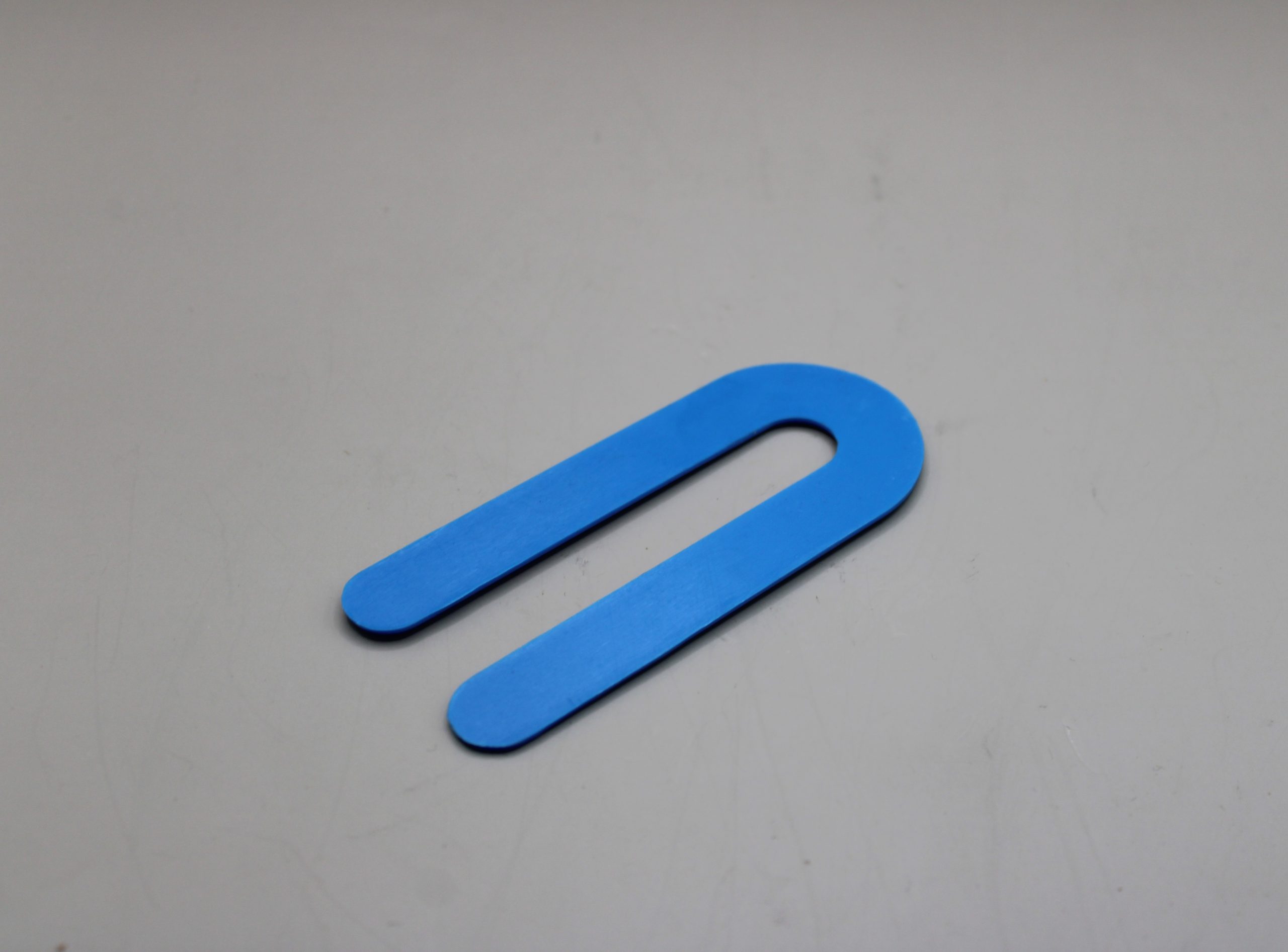

1/8in shim for door installation – 10 pack

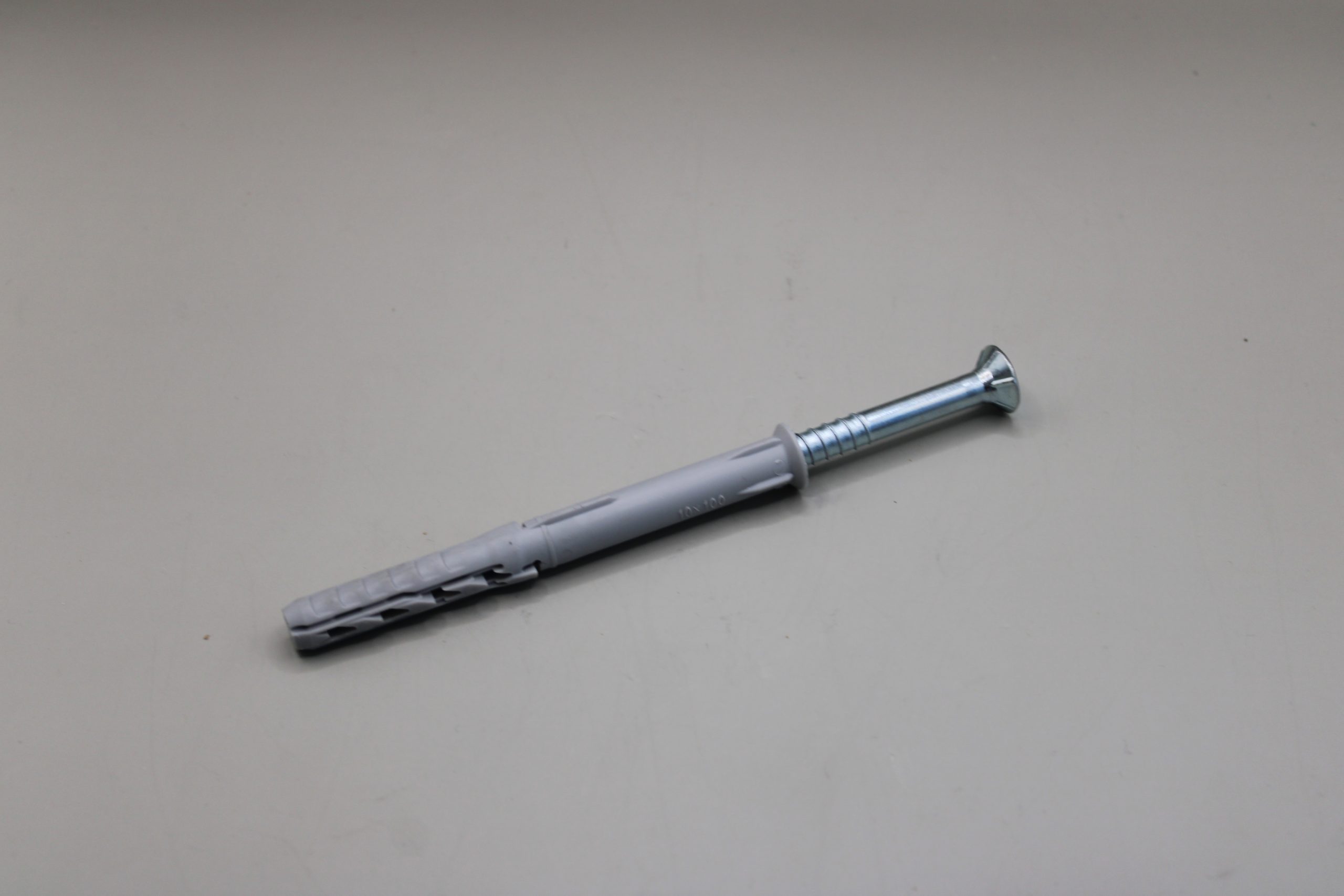

8 pack of frame anchors for door installation. 3/8 x 5-1/4in.

We are a dealer for Hussmann refrigeration products. If you have a display case, refrigerated or frozen food case, or any Hussmann product that needs parts for repair, contact us at the address below with the serial number of the … Read More

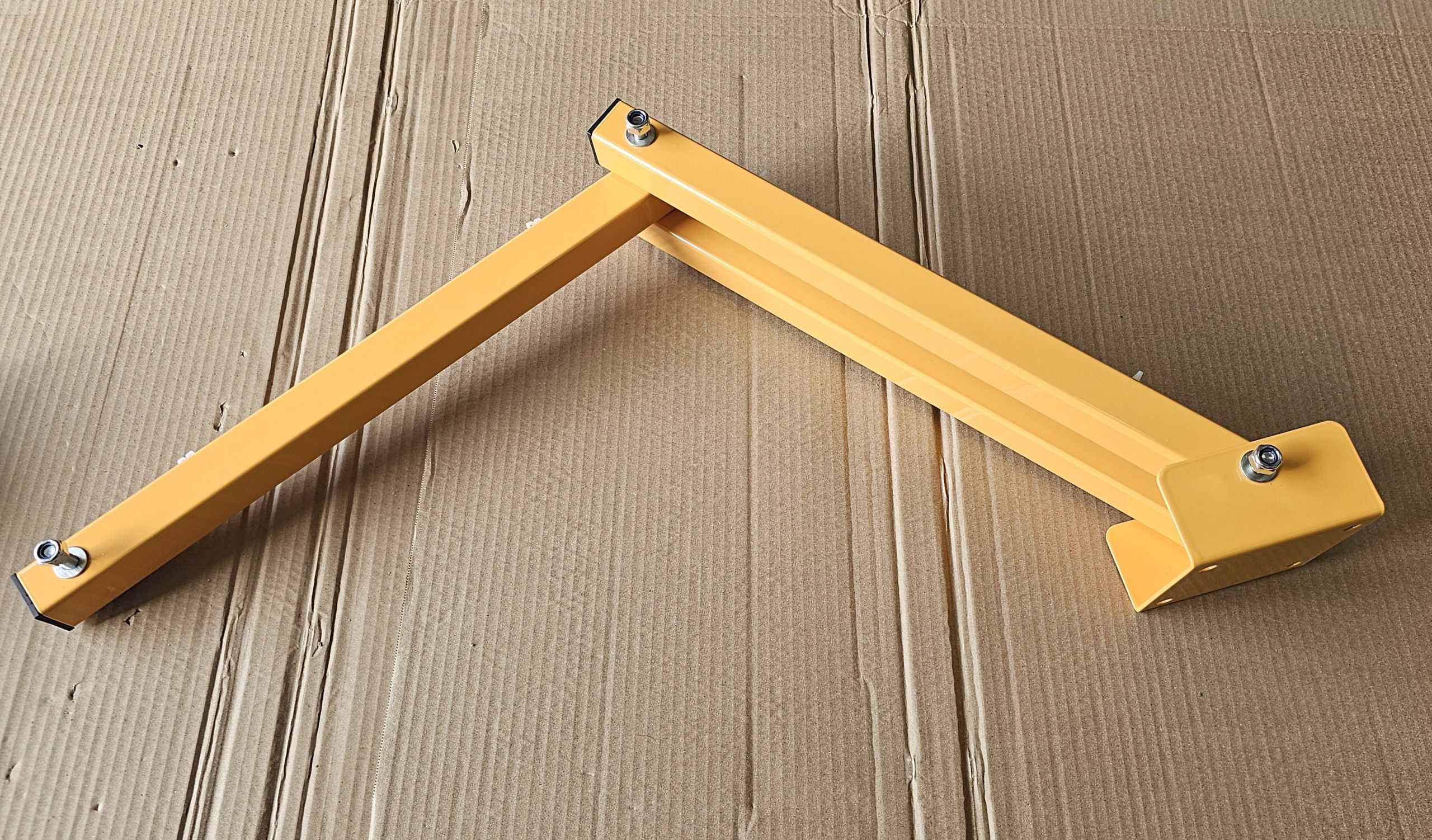

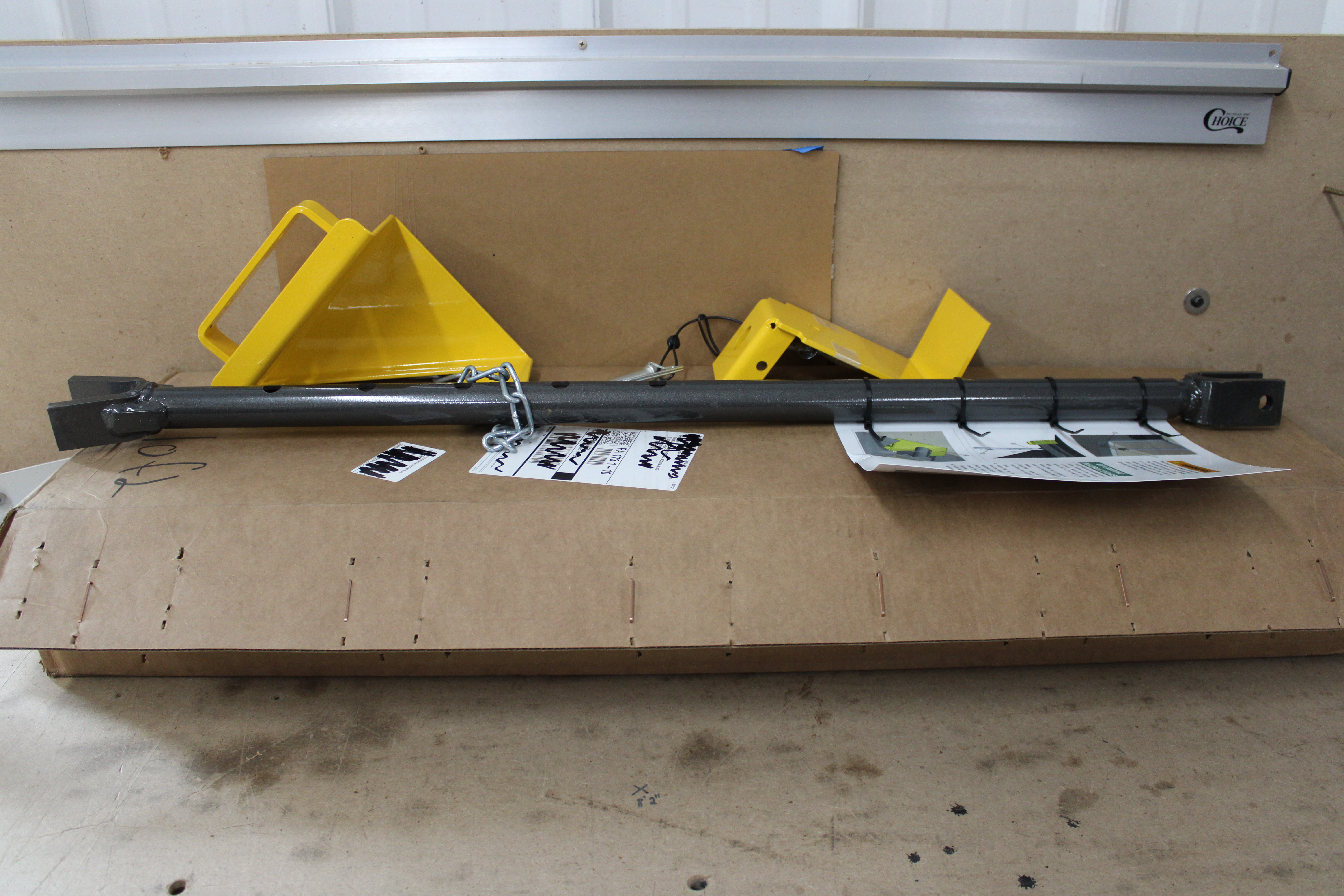

Portable maintenance strut for servicing dock levelers

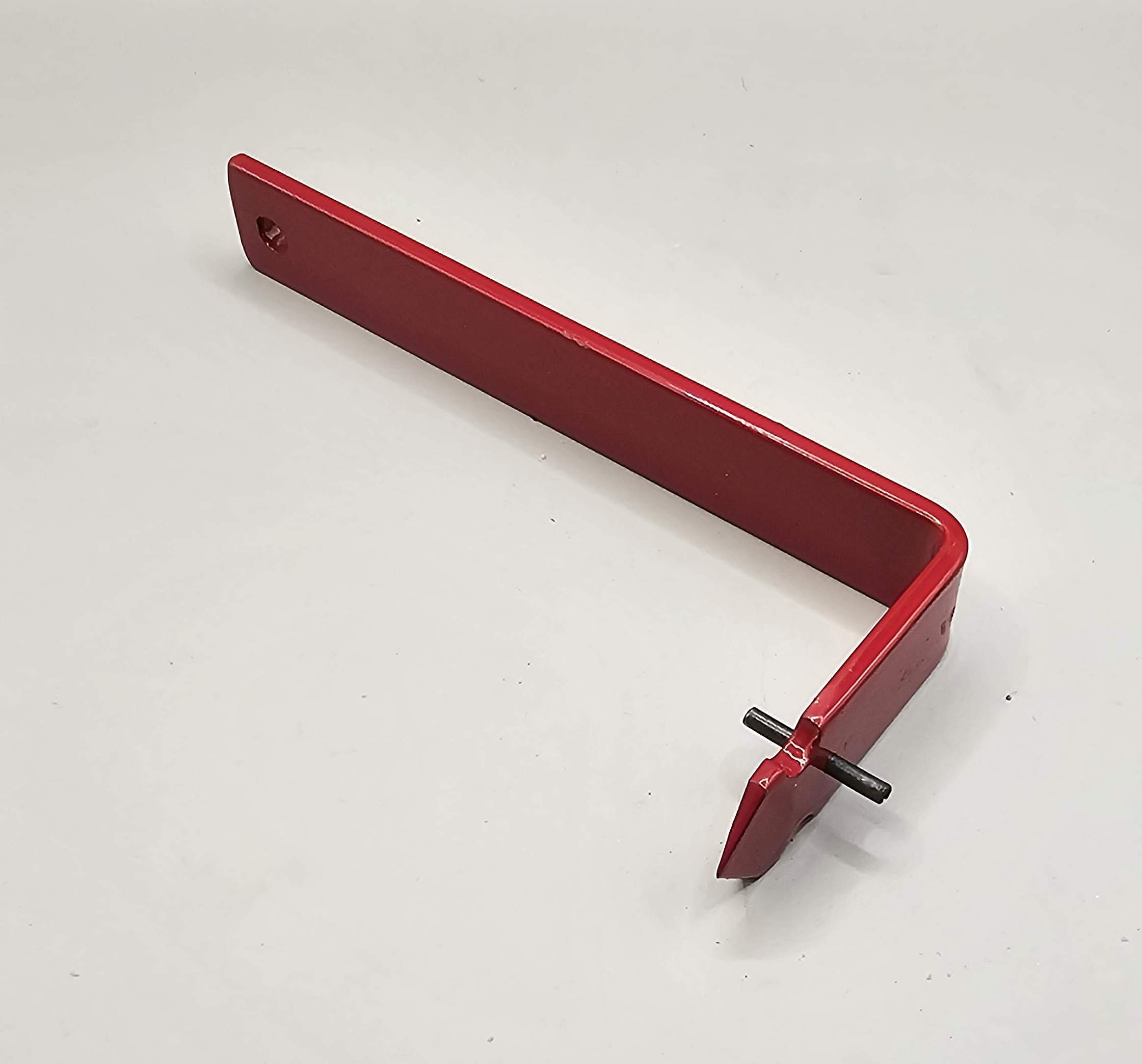

Deck handle for edge-of-dock Nordock levelers.

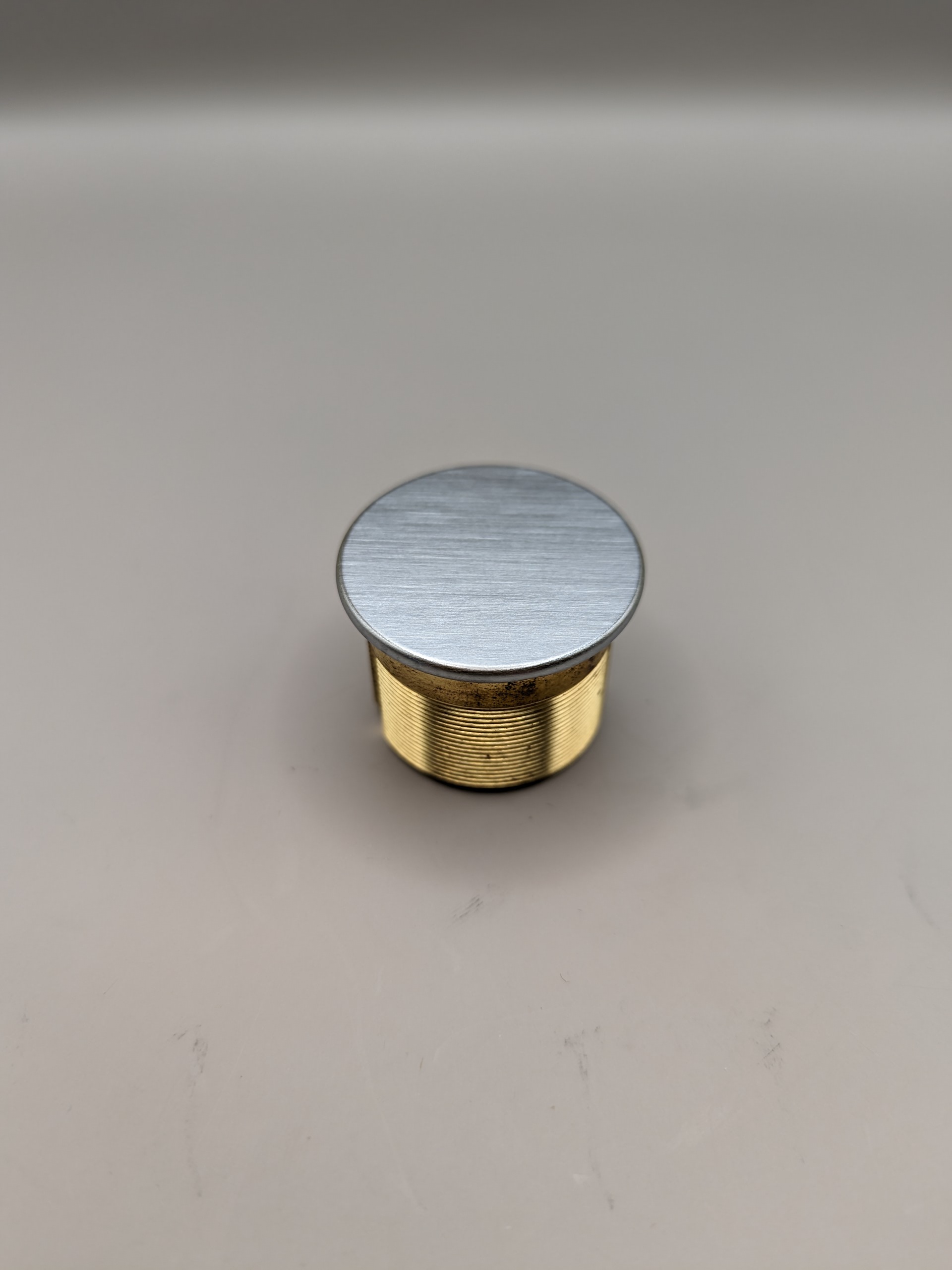

Blank dummy cylinder for filling lock mech holes in Auto doors. Stanley auto door lock accessory.

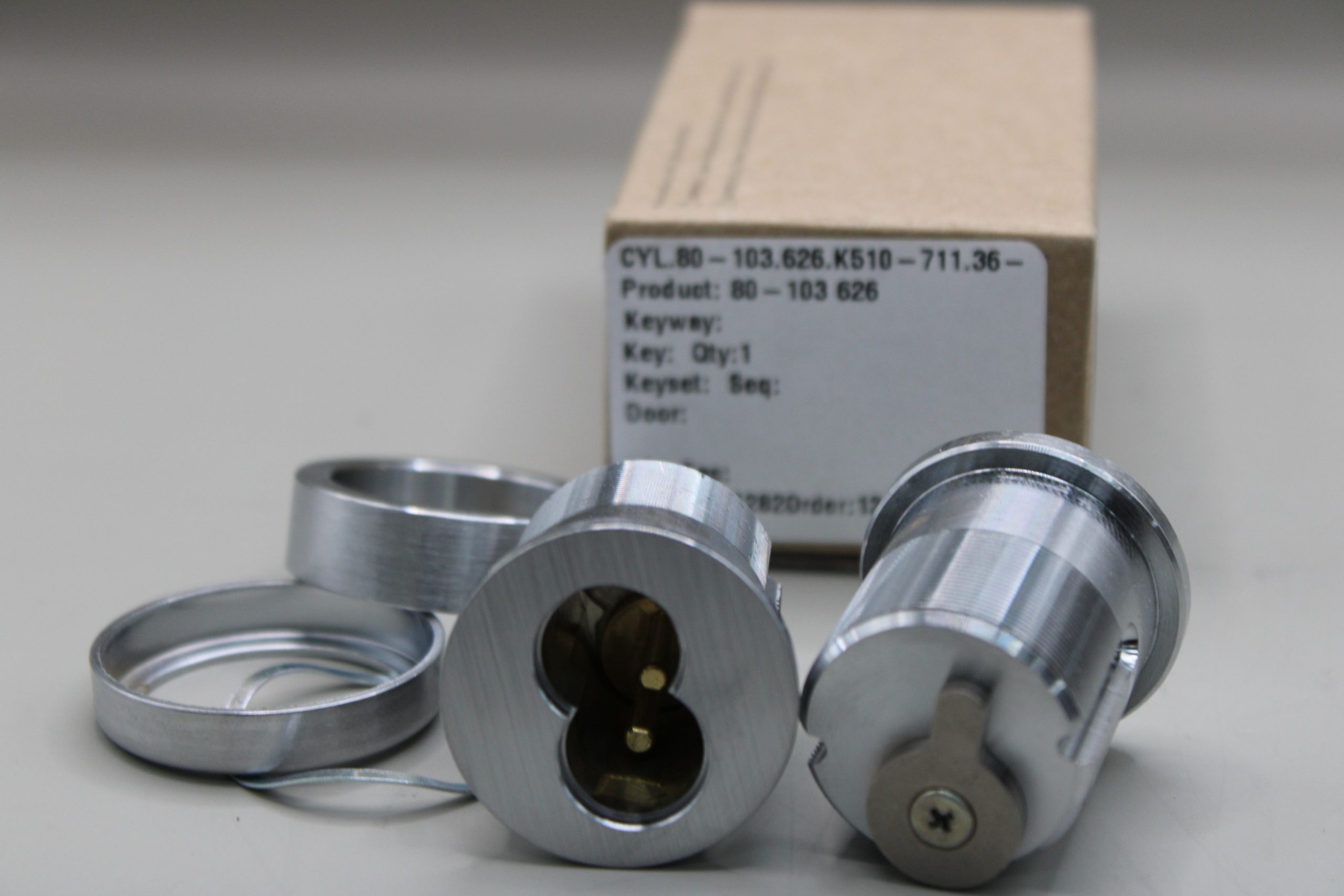

1 inch mortise cylinder, Schlage C keyway, 2 keys, satin chrome finish

1” mortise thumb turn, brushed chrome finish

1-1/8 inch mortise cylinder, Schlage C Keyway, 2 keys satin chrome finish

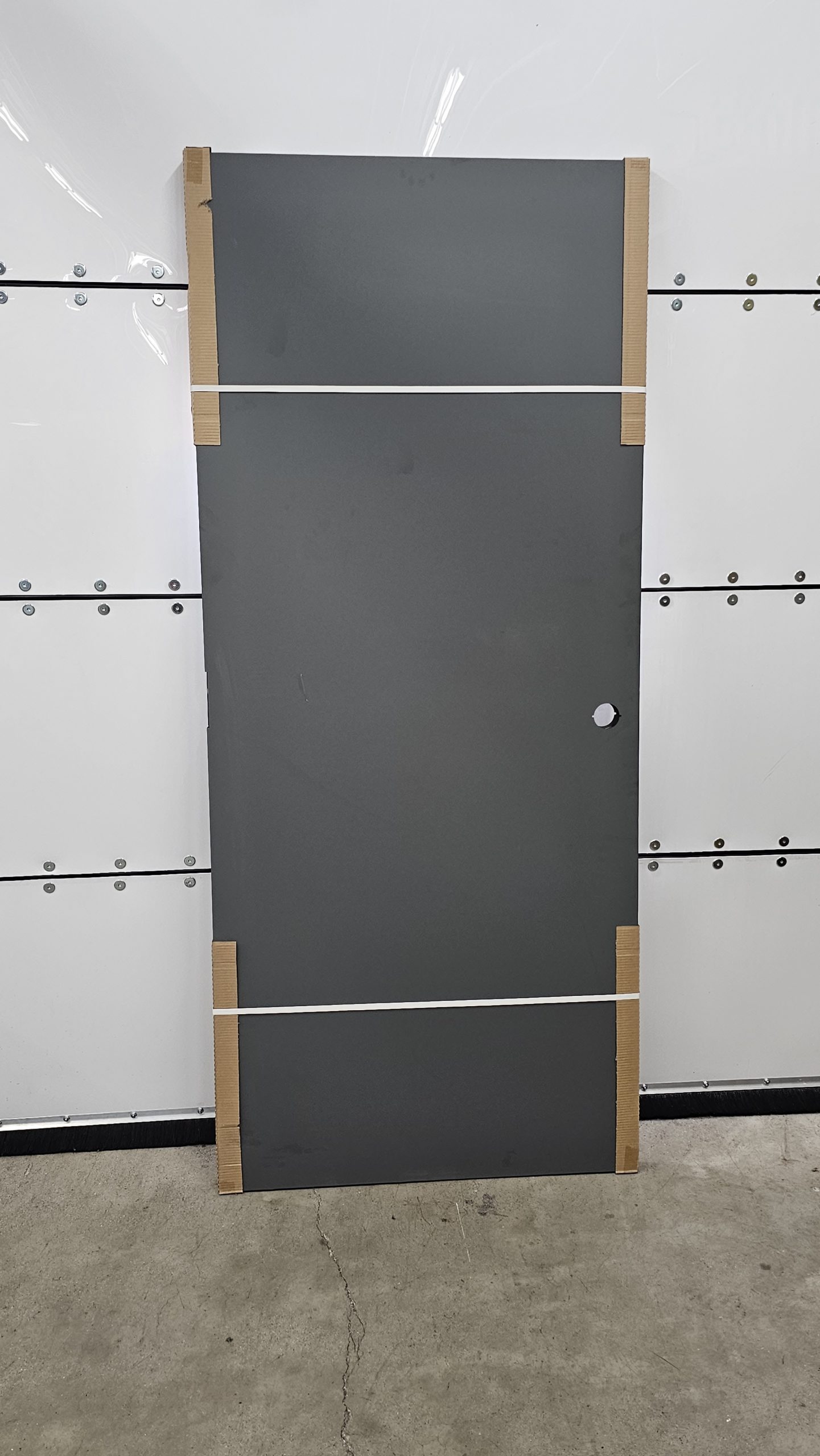

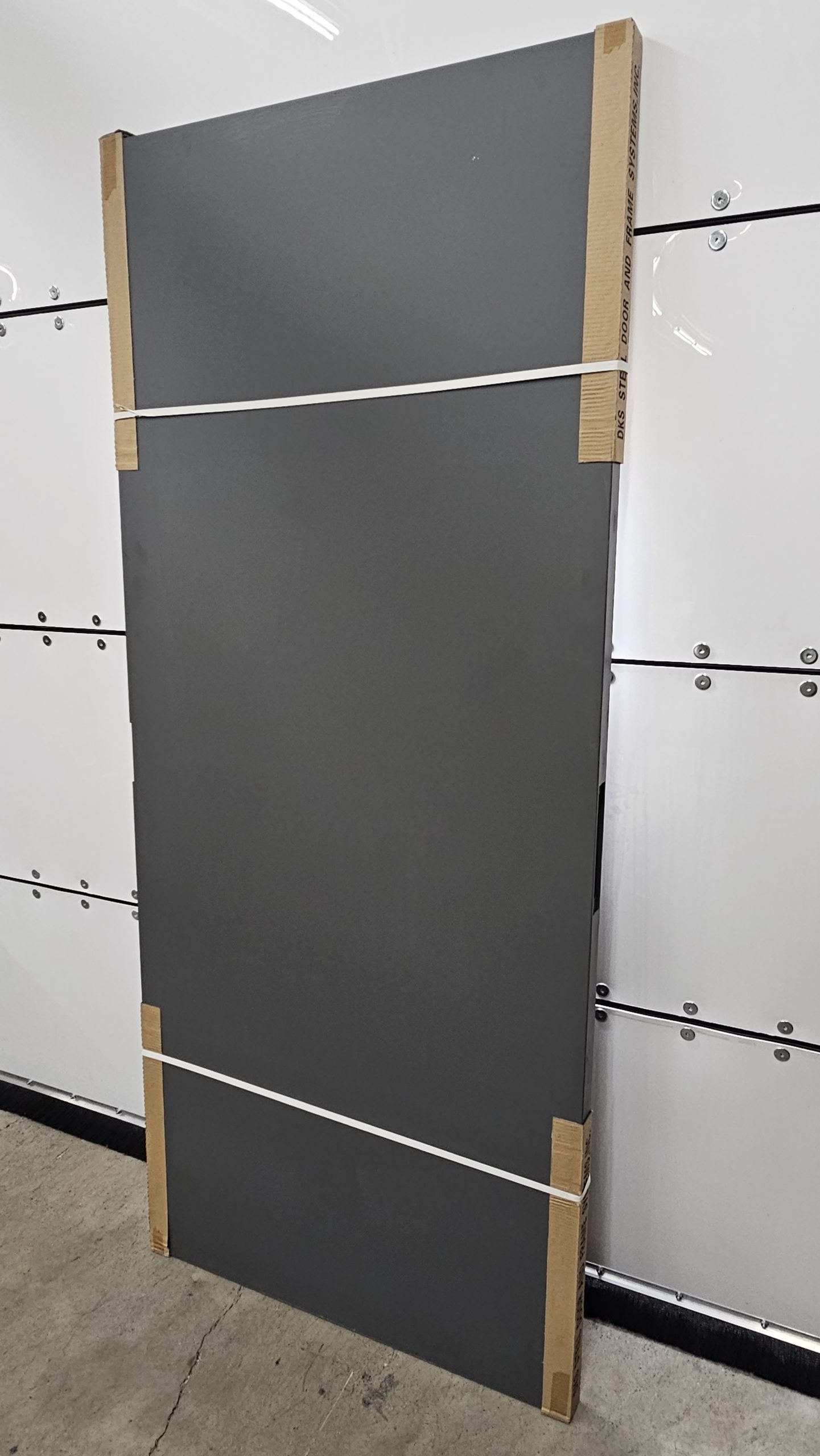

Door panel, 3ft X 7ft, prepped for lever set/knob, for offices, restrooms, mothers rooms, etc

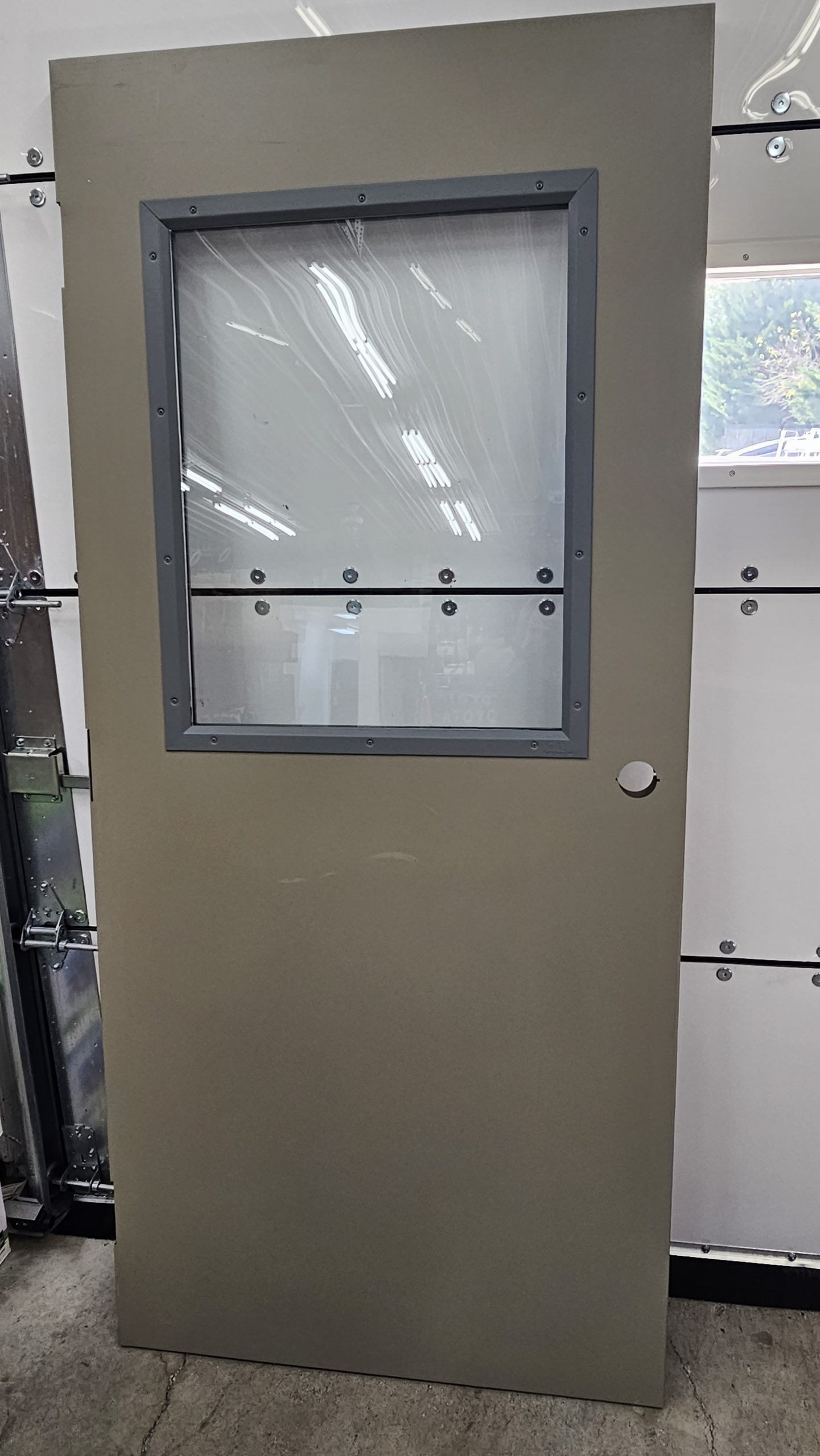

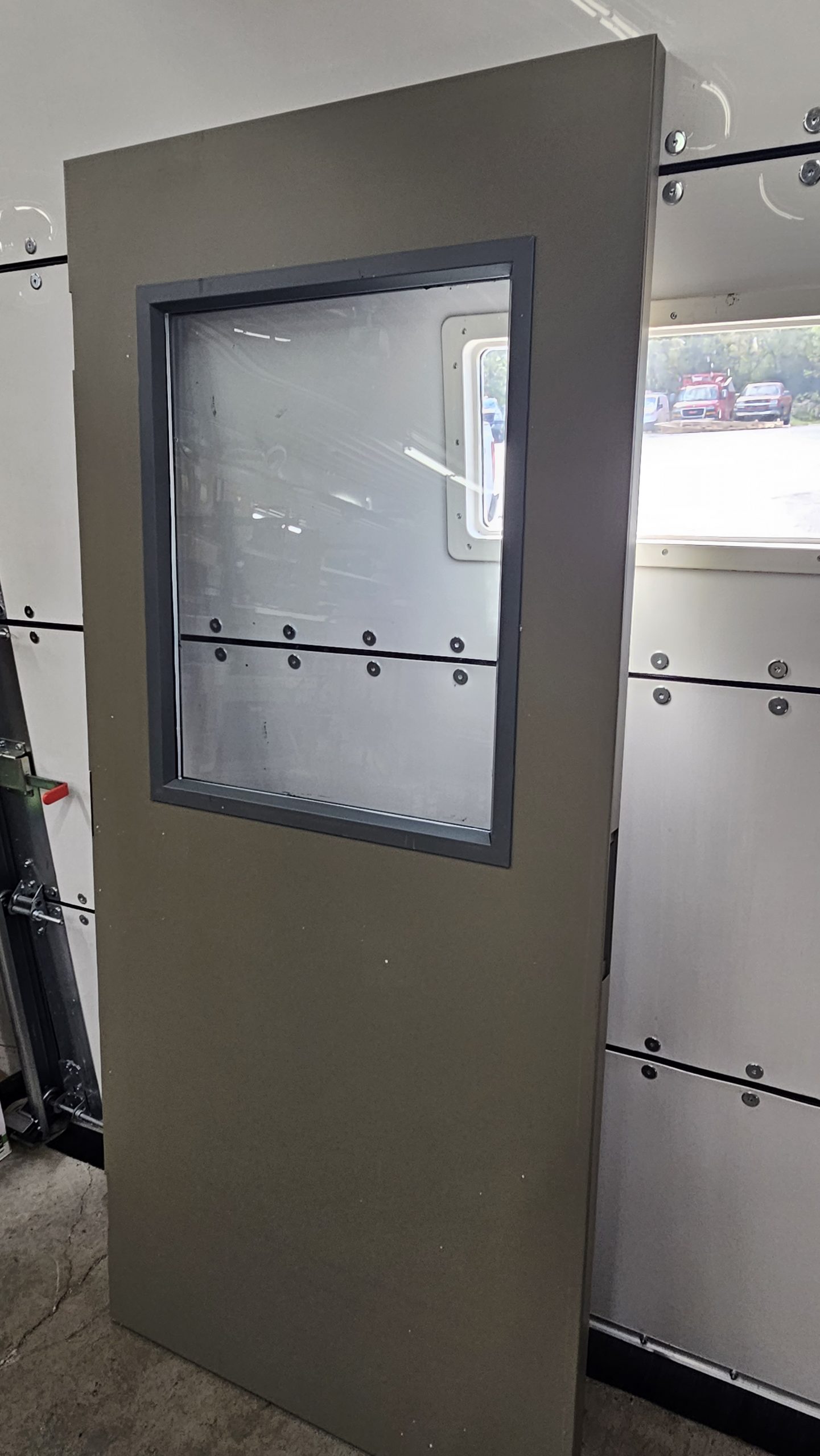

Door panel with window, 3ft X 7ft, prepped for lever set/knob, for TLE entrance doors, etc

Door panel, 3ft X 7ft, prepped for mortise locks, for cash offices, mothers rooms, etc

Door panel with window, 3ft X 7ft, prepped for mortise locks, for pharmacy secure doors

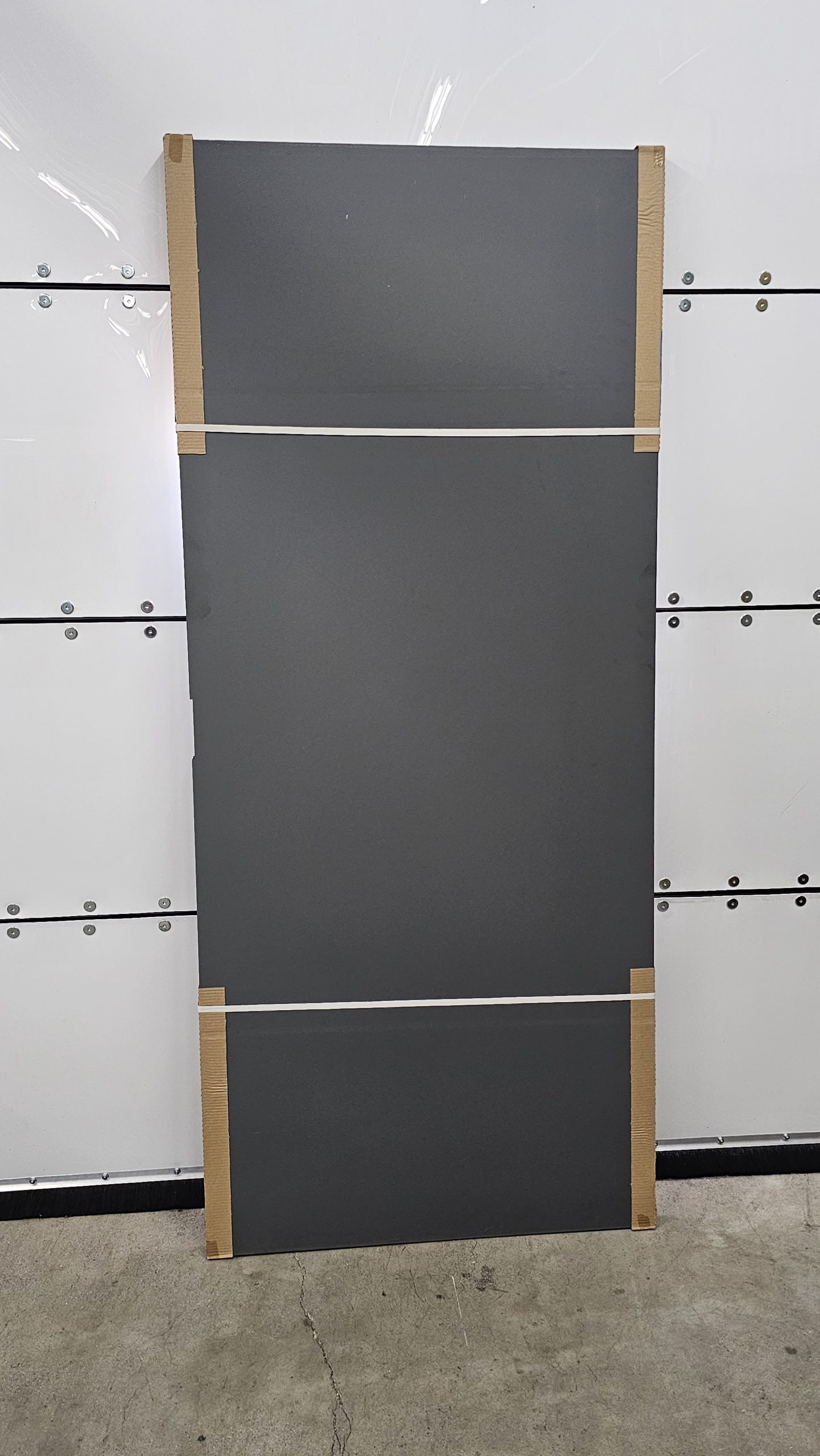

Door panel, 3ft X 7ft, blank, no prep, for emergency exits

Door panel with window, 3ft X 7ft, blank. For TLE customer entrance, OGP, ODP, etc.

Bosch D150i PIR request to exit sensor, TLE bay sensor

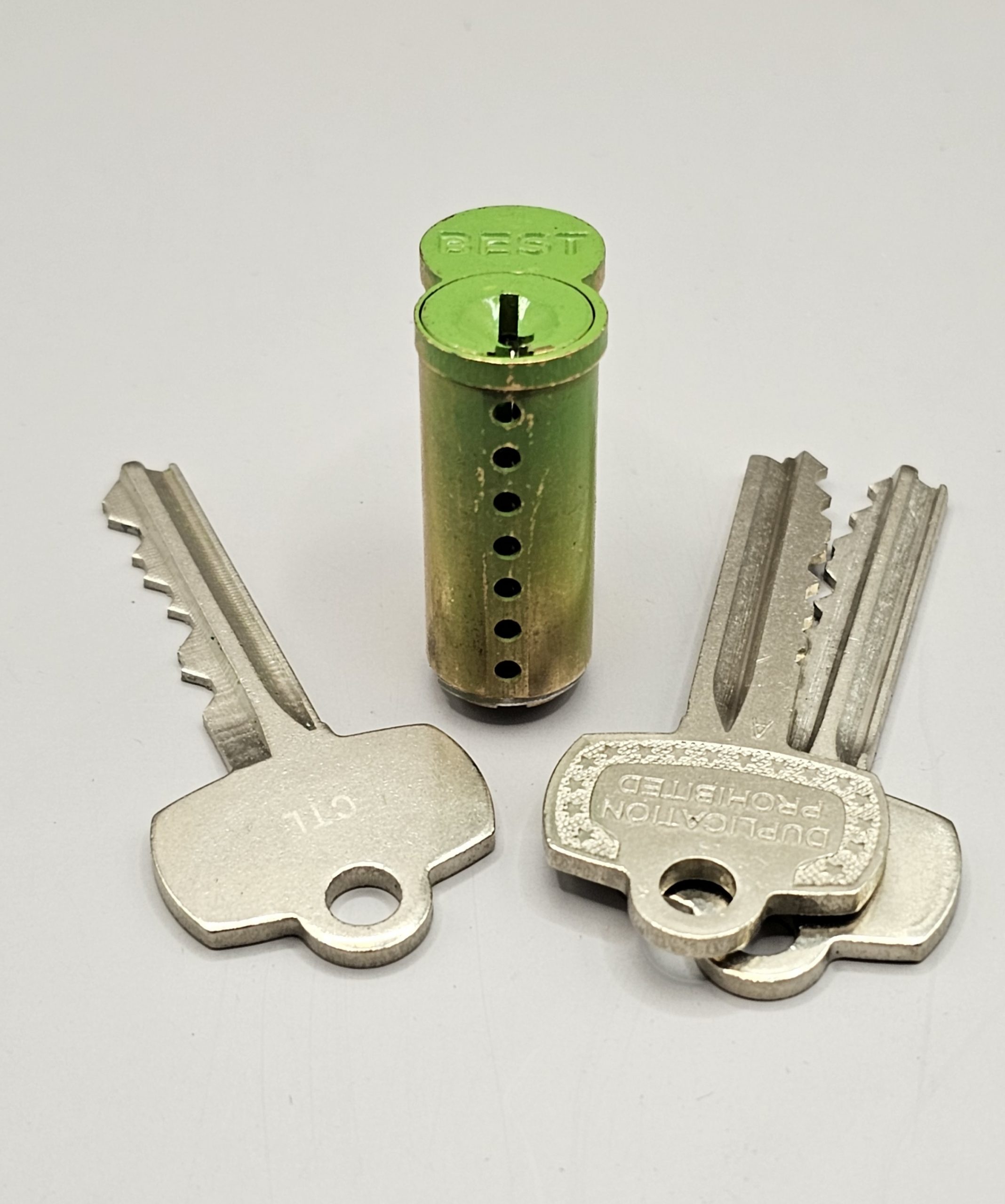

Best SFIC Construction core with (1) Control key and (2) operating keys. For temporary use while new store cores are made.

Detex EAX-500 alarm box, used to alarm fire exit doors at some locations

Mostly found in garden centers on emergency exit gates. Weatherized for outdoor use.

Detex, End cap for V40 push bars, garden center, plastic end cap

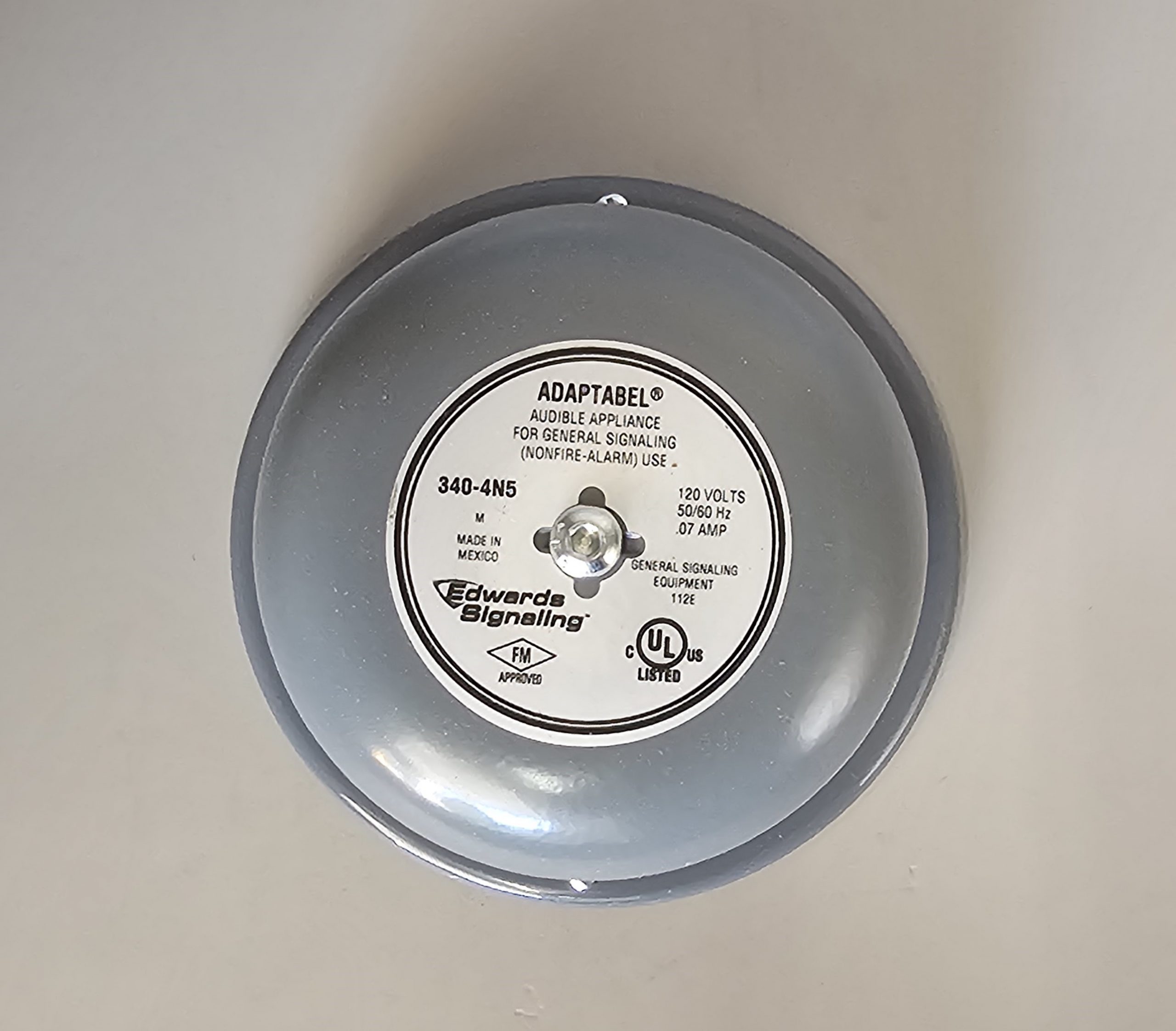

Door Bell, Edwards Signaling, 120VAC, .07A, Gray

Door Bell, Edwards Signaling, 24VAC, .35A, Gray

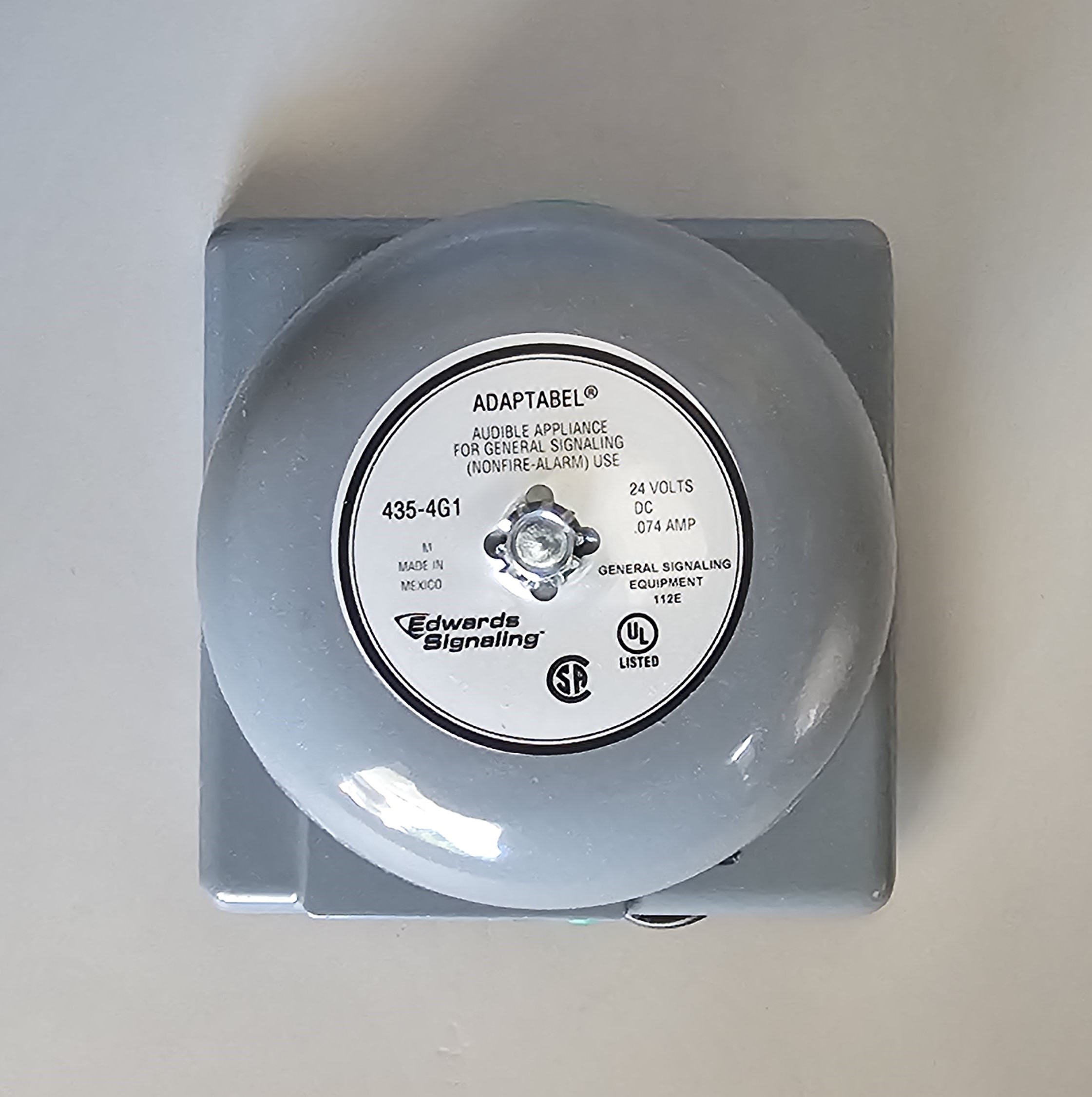

Door Bell, Edwards Signaling, 24VDC, .074A, Gray

40 inch drip cap for emergency exit doors, mill aluminum finish

76 inch drip cap for double emergency exit doors, mill aluminum finish

80 inch drip cap for double emergency exit doors, mill aluminum finish

Found in some store in TLE/Auto center and other types of doors. Less common than the HES 9600 and 7501

Used in Auto Care Centers with request-to-exit devices.

When the hinges that are installed with a hollow metal door fail, it is usually best to replace with a full length hinge. They are rated for 600lbs and are adjustable so that the door can be mounted properly to extend its life. &n… Read More

LCN7810-E100 1 inch extension rod for LCN7800 series magnet. Fire door accessory

LCN7810-E050 1/2 inch extension rod for LCN7800 series magnets. Fire door accessory.

LCN7810-E200 2 inch extension rod for LCN7800 series magnets. Fire door accessory

LCN7810-E075 3/4 inch extension rod for LCN7800 series magnets. Fire door accessory.

LCN7810-E400 4 inch extension rod for LCN7800 series magnets. Fire door accessory.

LCN SEM 7810-514 ball pivot connection for extension rods. Fire door accessory

LCN SEM 7820 electromagnetic door hold open magnet. Floor mount, painted aluminum finish. For fire doors

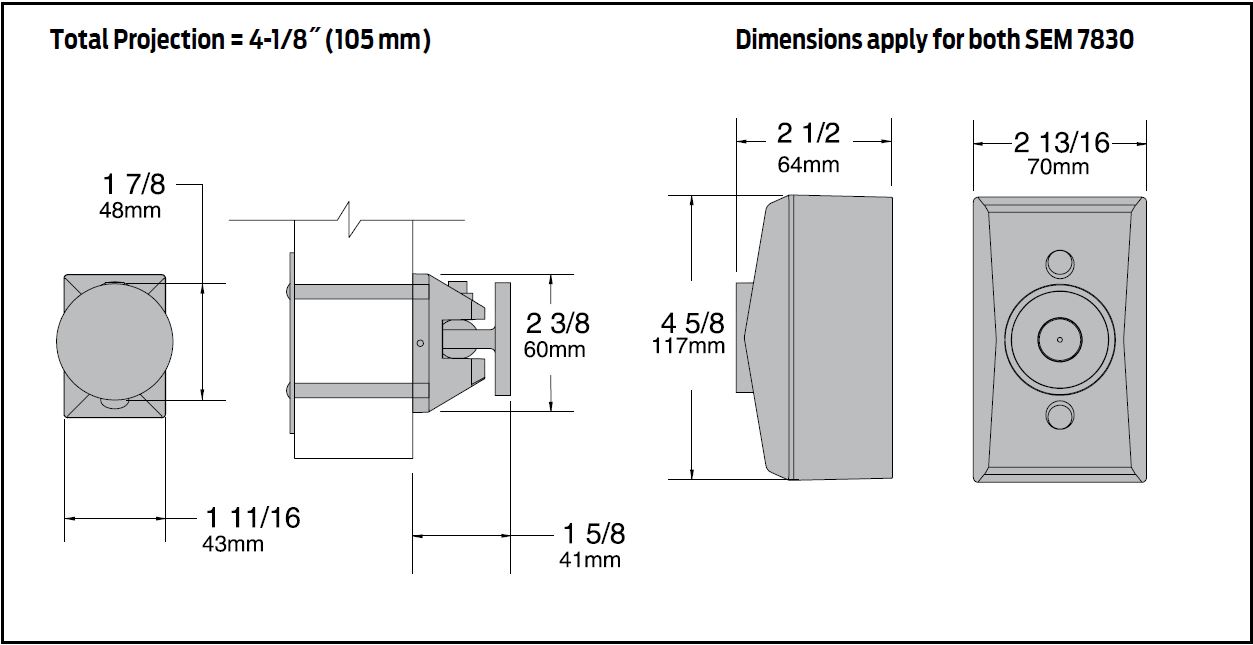

LCN SEM 7830 electromagnetic door hold open magnet. Surface wall mount, low profile armature, aluminum painted finish. For fire doors

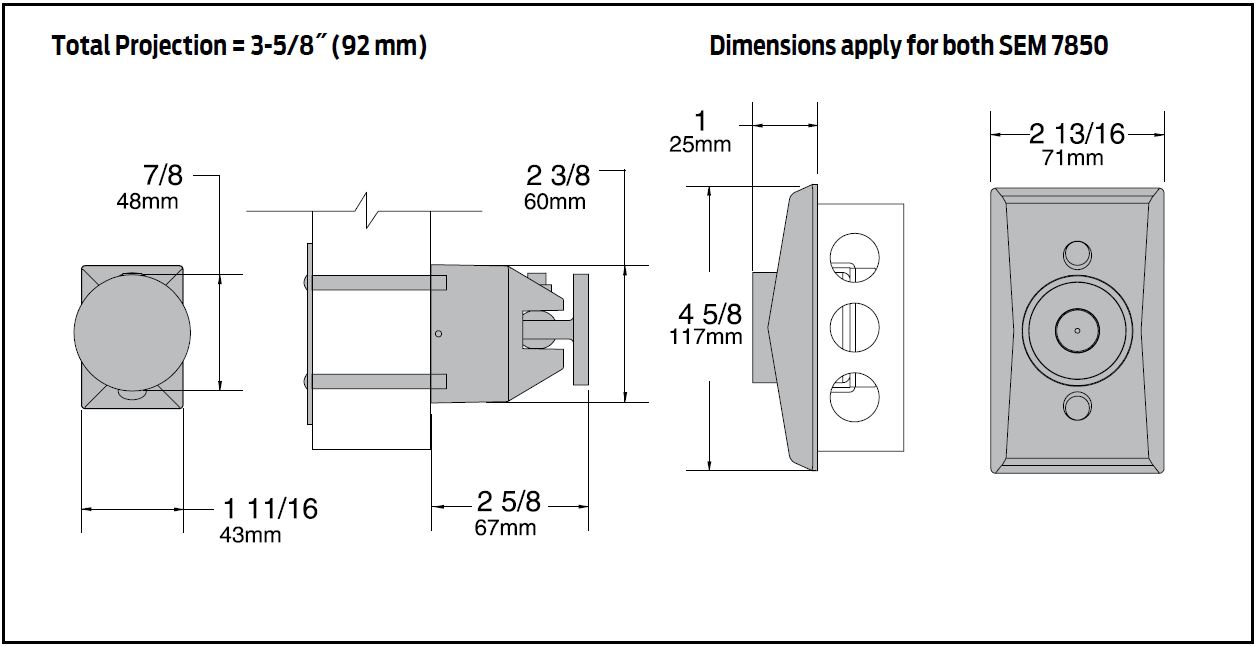

LCN SEM 7850 electromagnetic door hold open magnet. Standard profile, recessed wall mount, Aluminum painted finish. For fire doors

Ives one-way door viewer, 150 degree view angle, satin chrome finish

Latch protector for cylindrical lever sets (Schlage ND series, Falcon, Yale)

Walmart Spec closer. Used on storefront doors, office doors, passage doors, etc.

This is the same as a normal LCN 4040 closer, but includes a wing nut to hold the door open if needed. Seen most commonly on manual cart doors.

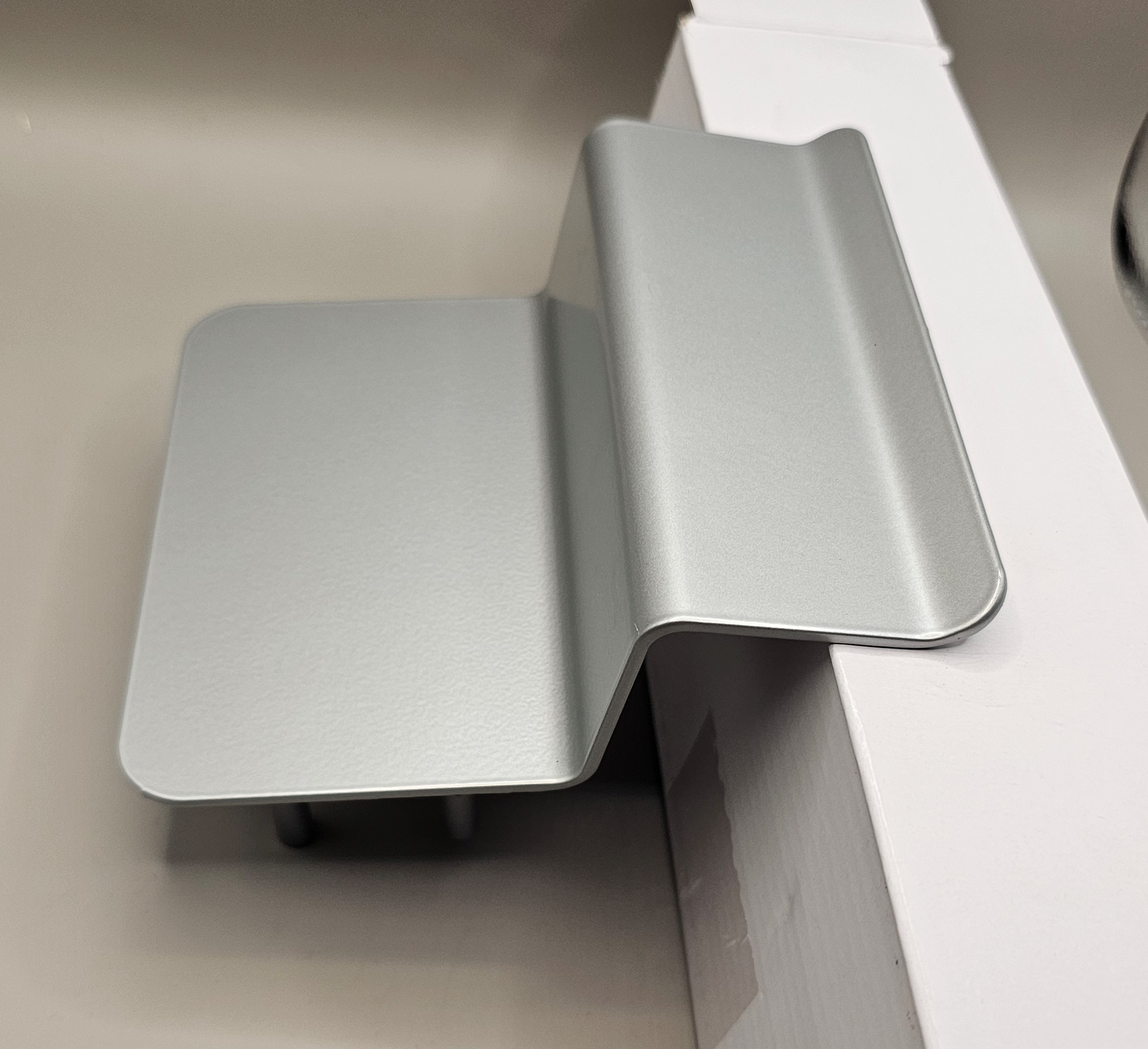

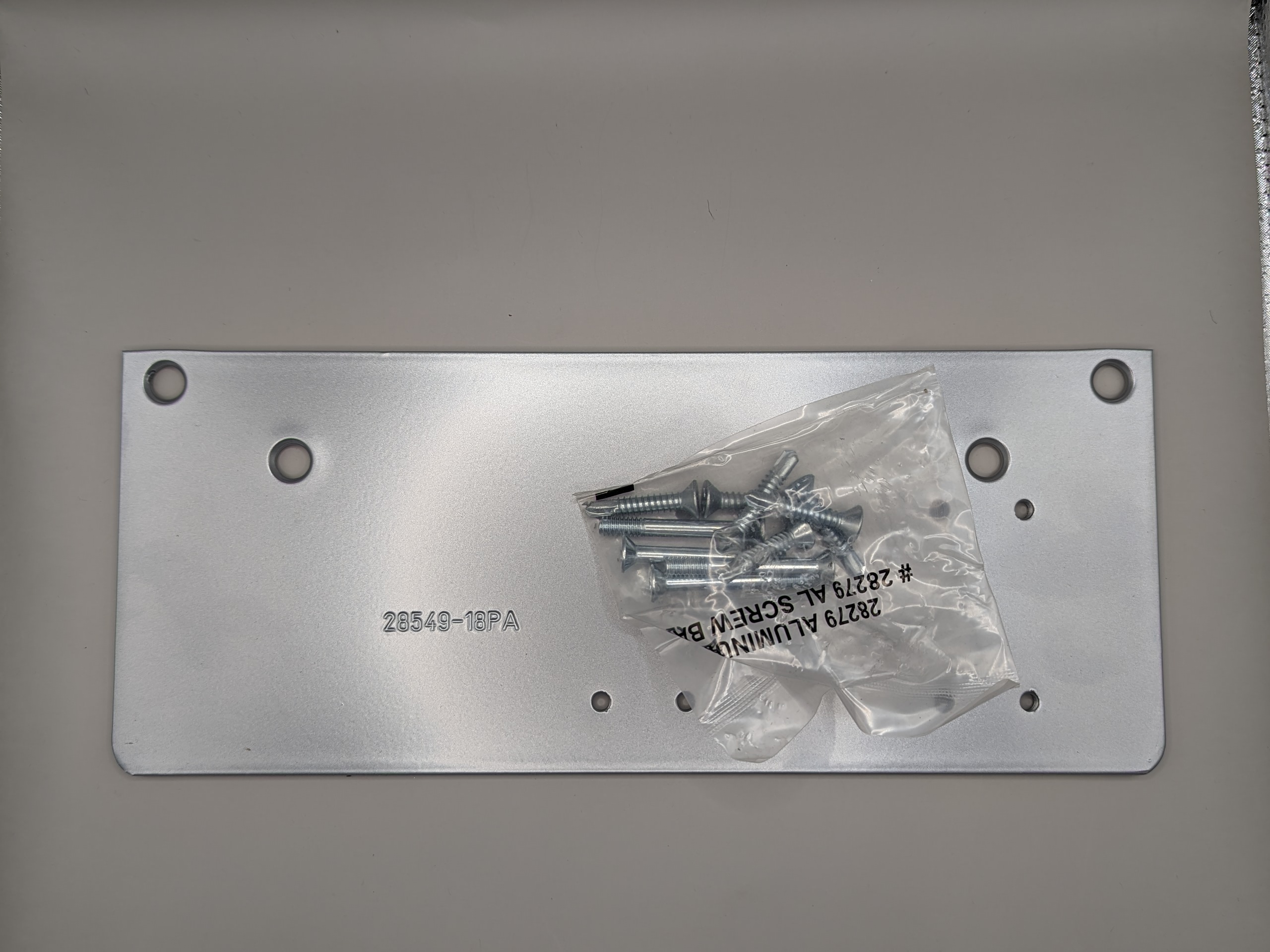

Drop plate for LCN 4040 closer. Parallel arm applications, narrow stile.

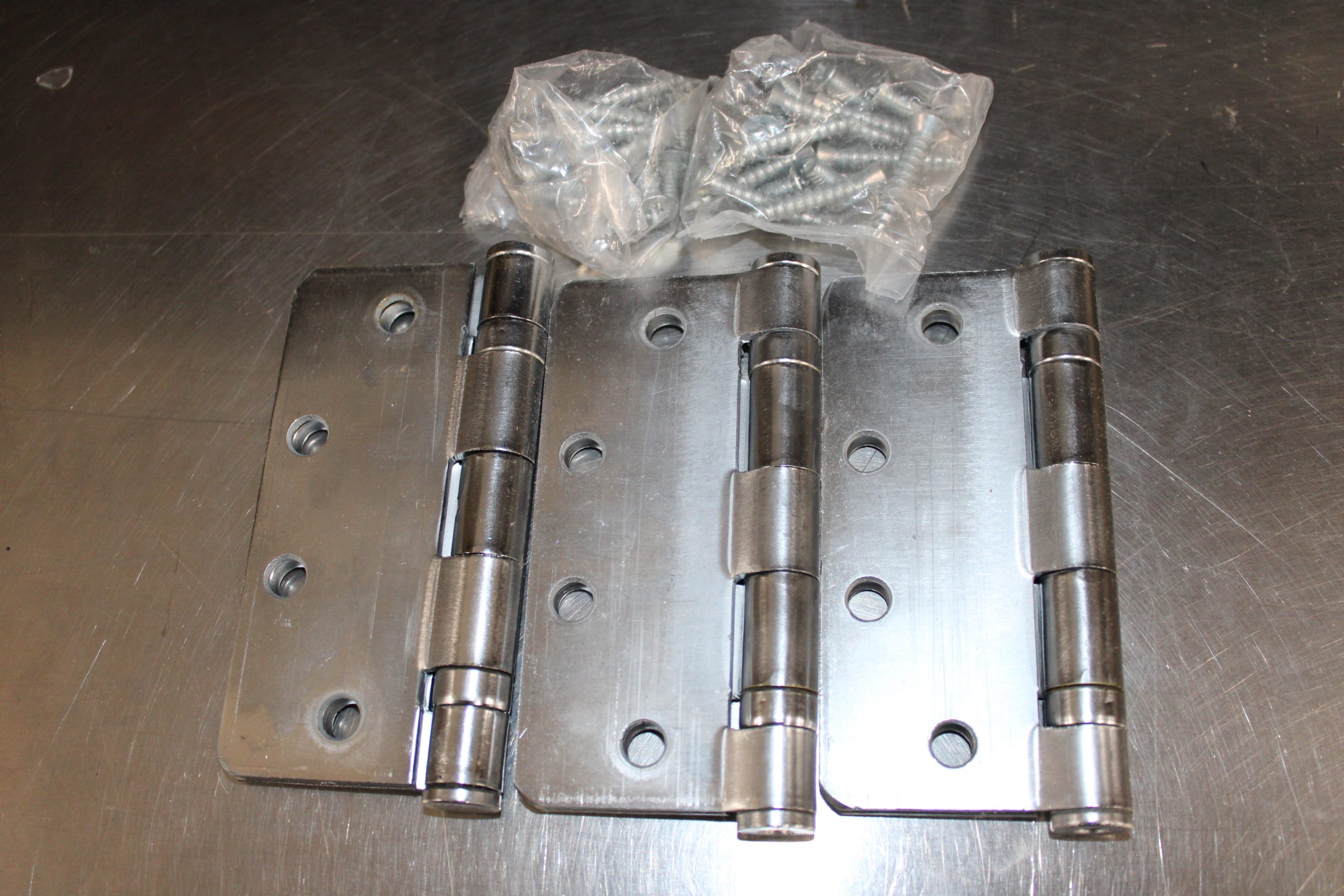

Heavy duty NRP butt hinges to replace standard style hinges. Sold as a pack of 3.

Positive locks must be ordered by Store Management or GMTs directly through Positive Lock Inc. due to AP concerns. They are not available through Tristate Commercial Doors. If you need a positive lock, please call (or have store manageme… Read More

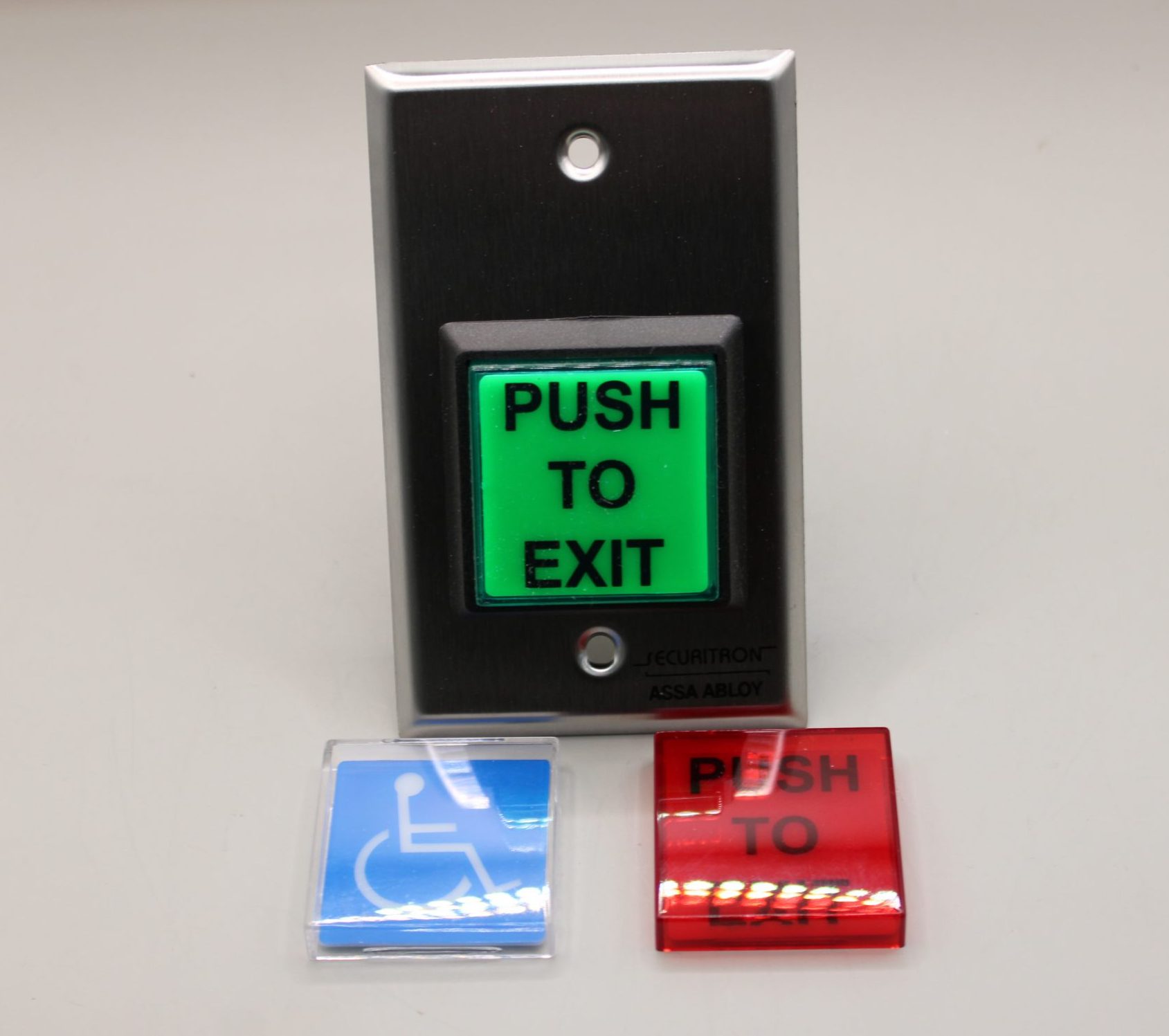

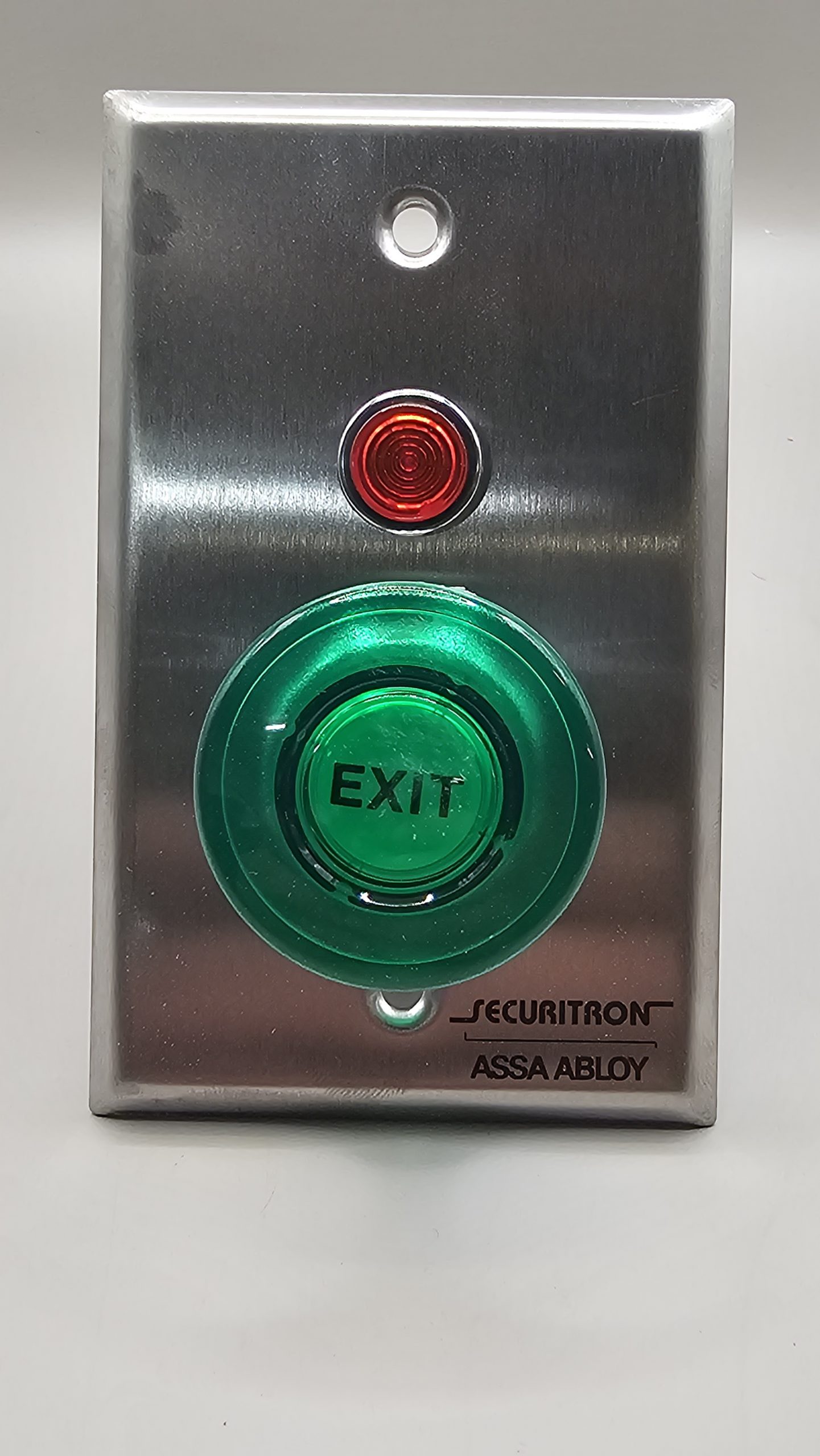

Securitron single gang push to exit button with LED and interchangable green or red push button. Used in TLE/Auto Center

Used for cash office doors and Pharmacies

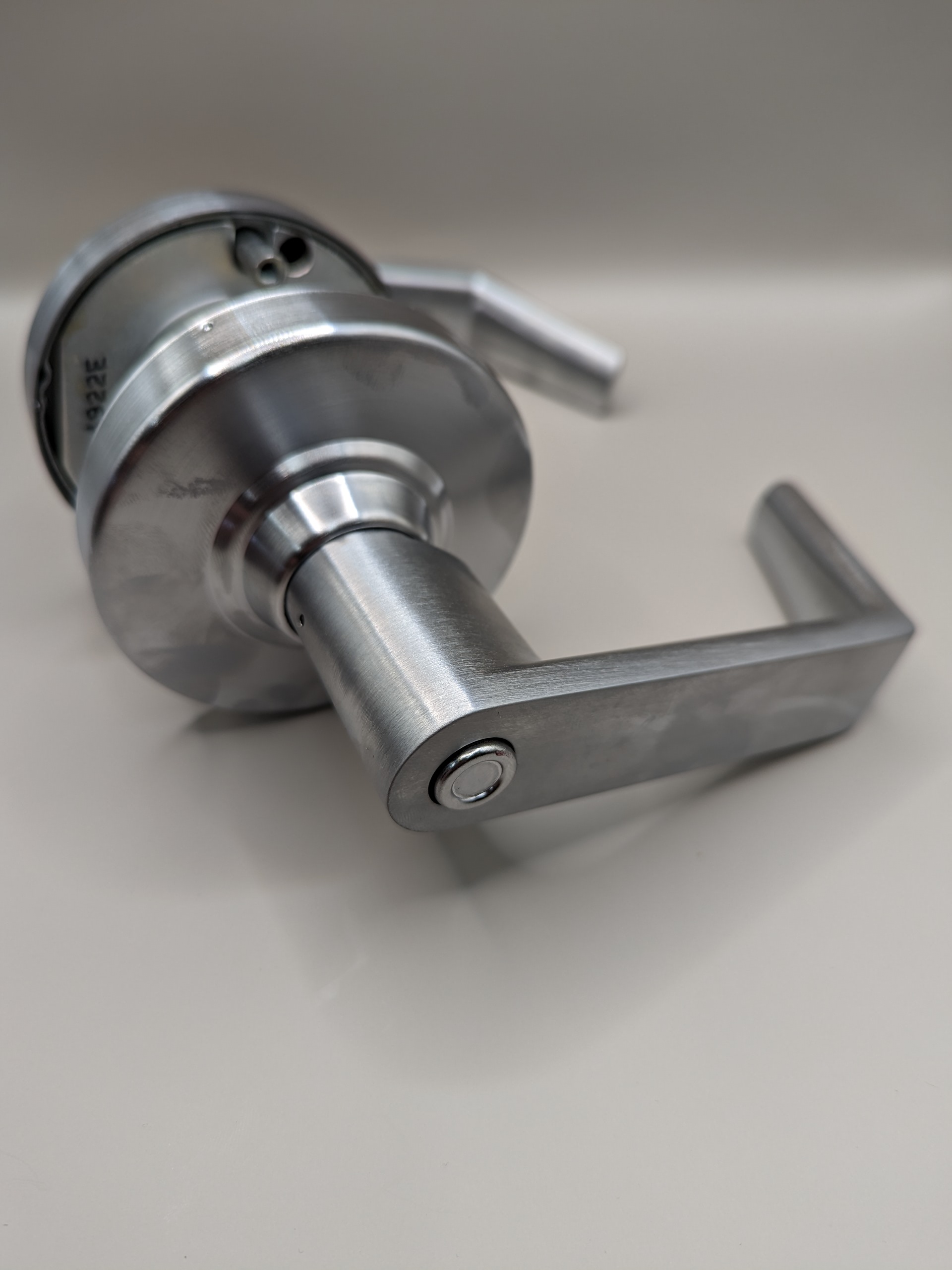

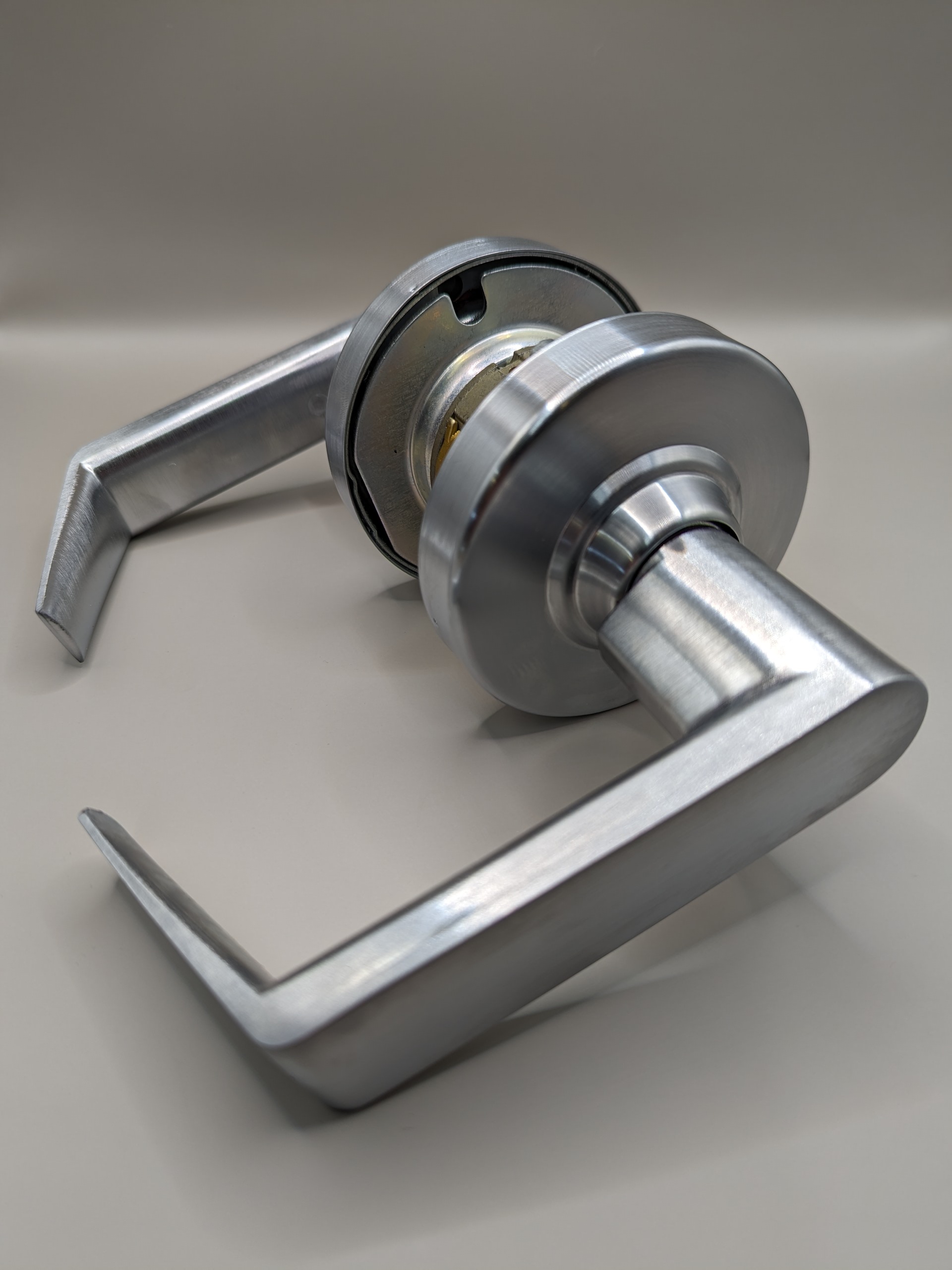

Schlage ND10 lever set. Passage function, no lock on either side. Satin chrome finish.

Privacy Lock/Bathroom Lock Push-button locking, can be opened from outside with a small screwdriver. Turn inside lever or close door to release button.

Schlage ND80, compatible with small format interchangeable cores (SFIC)

Storeroom lock Outside lever fixed, entrance by key only Inside lever always unlocked Available in SFIC and Non-SFIC configurations.

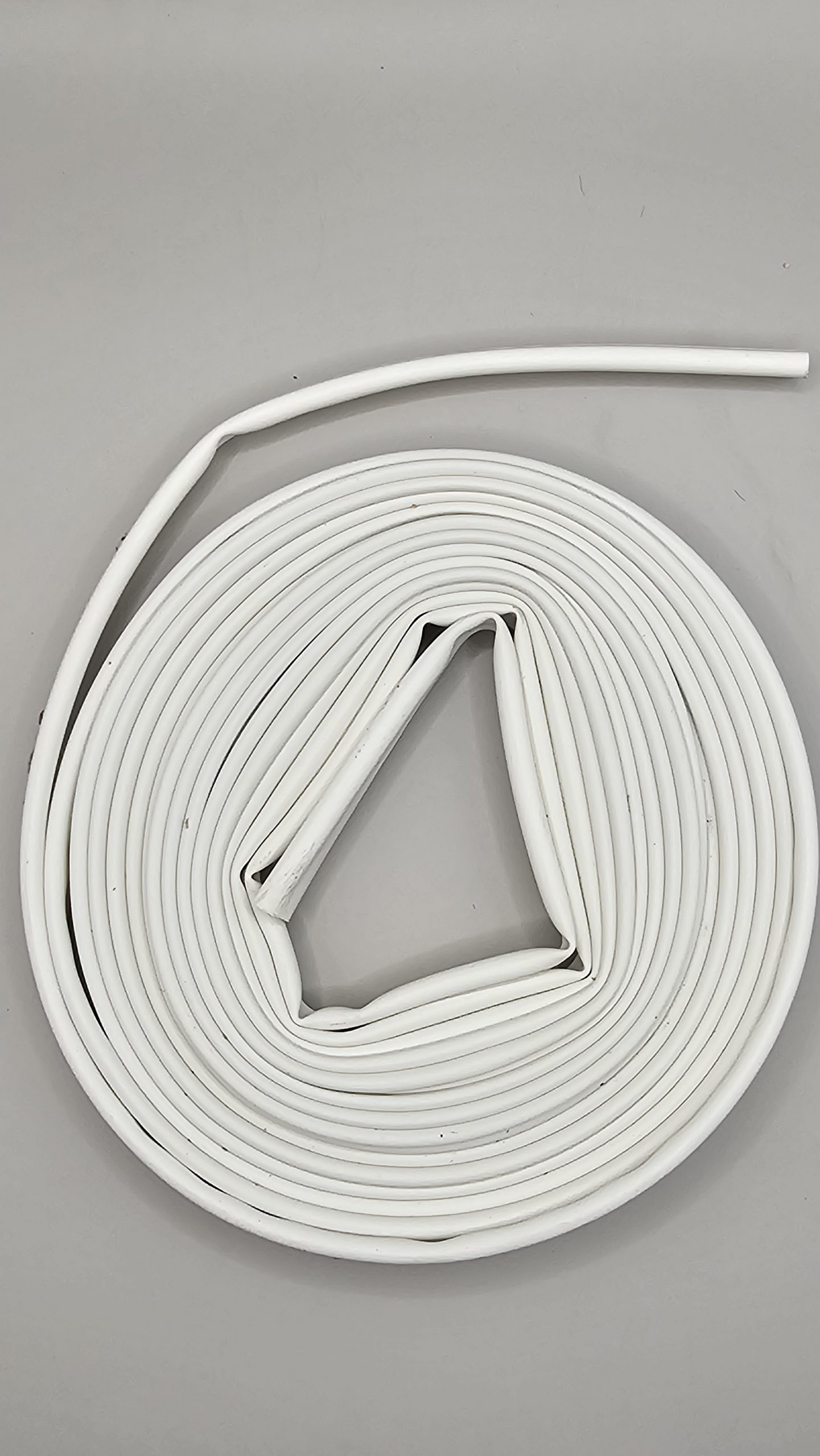

Smoke seal, self adhesive, NGP, 21ft roll

Weather seal kits for around the perimeter of a door. Installed on the interior perimeter.

SFIC mortise housing. Used in Von Duprin 22 ALK boards.

Bottom sweeps for pest control. Installed on the interior side of the door.

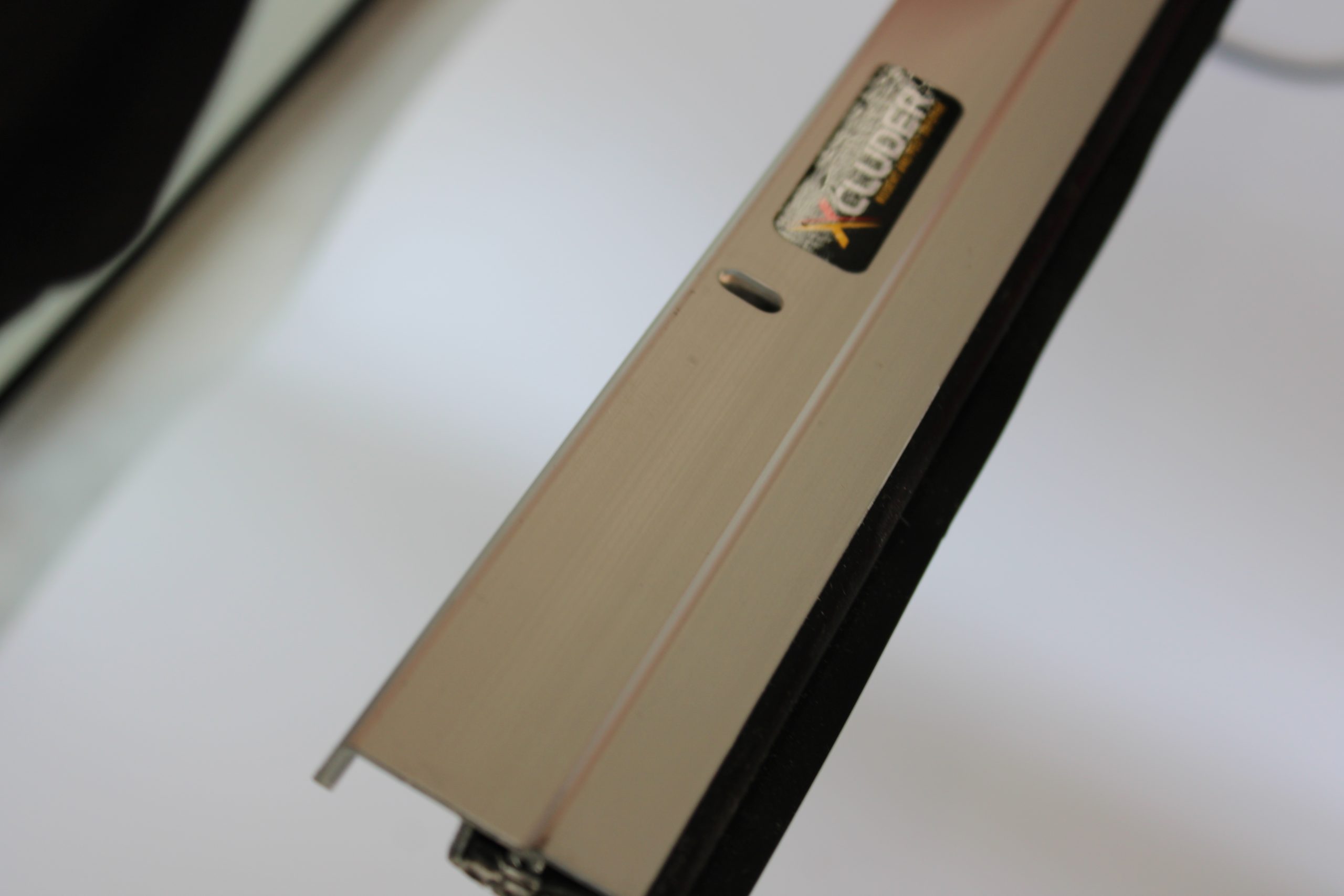

Vinyl bottom sweeps for weather protection and pest control. Installed on the exterior side of the door.

Bottom sweeps for pest control. Installed on the interior side of the door.

Vinyl bottom sweeps for weather protection and pest control. Installed on the exterior side of the door.

Heavy Duty brush seal, 3ft.

Heavy duty vinyl sweep. 3ft.

Heavy Duty Brush sweep. 4ft.

Heavy Duty Vinyl Sweep. 4ft.

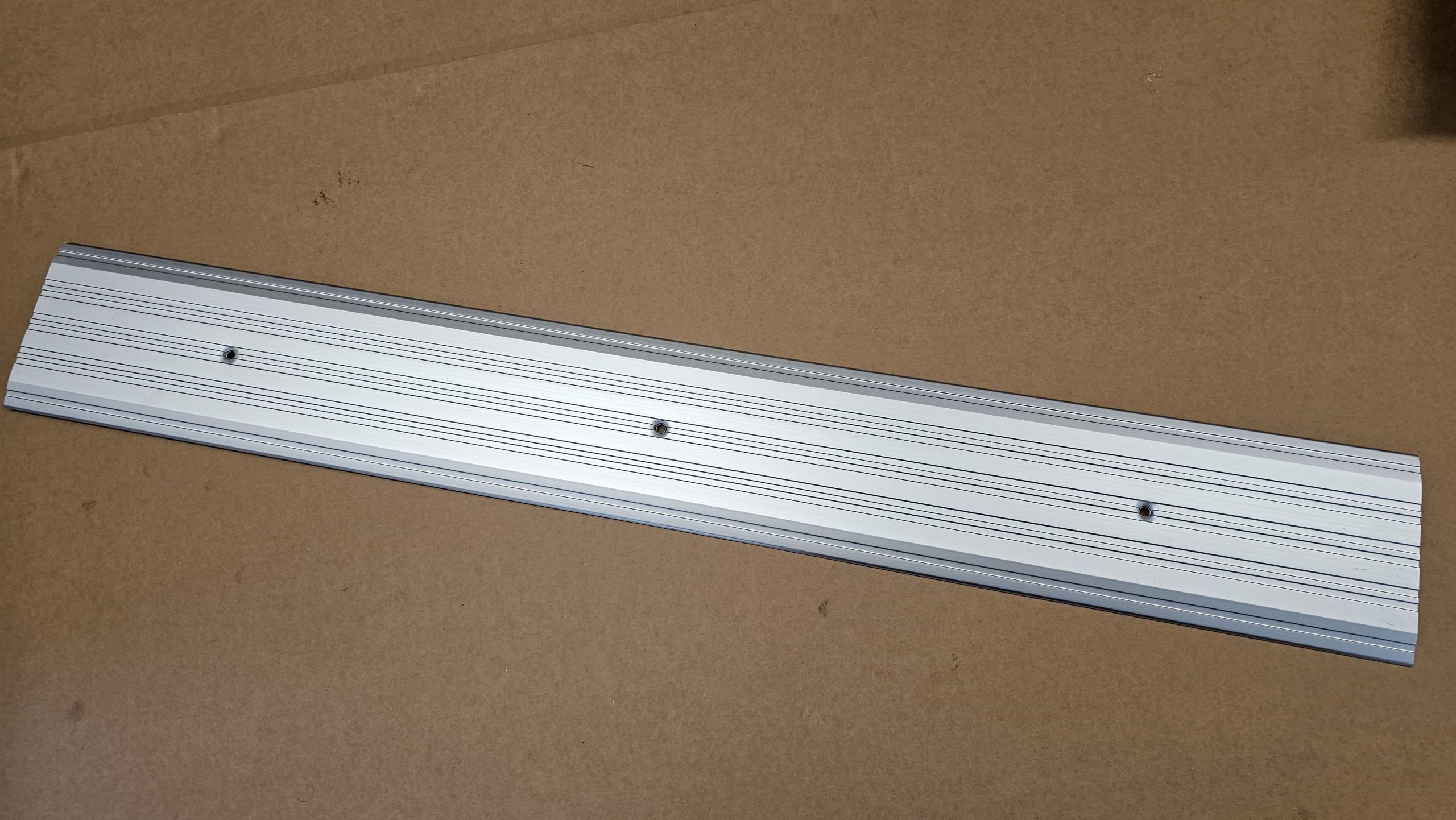

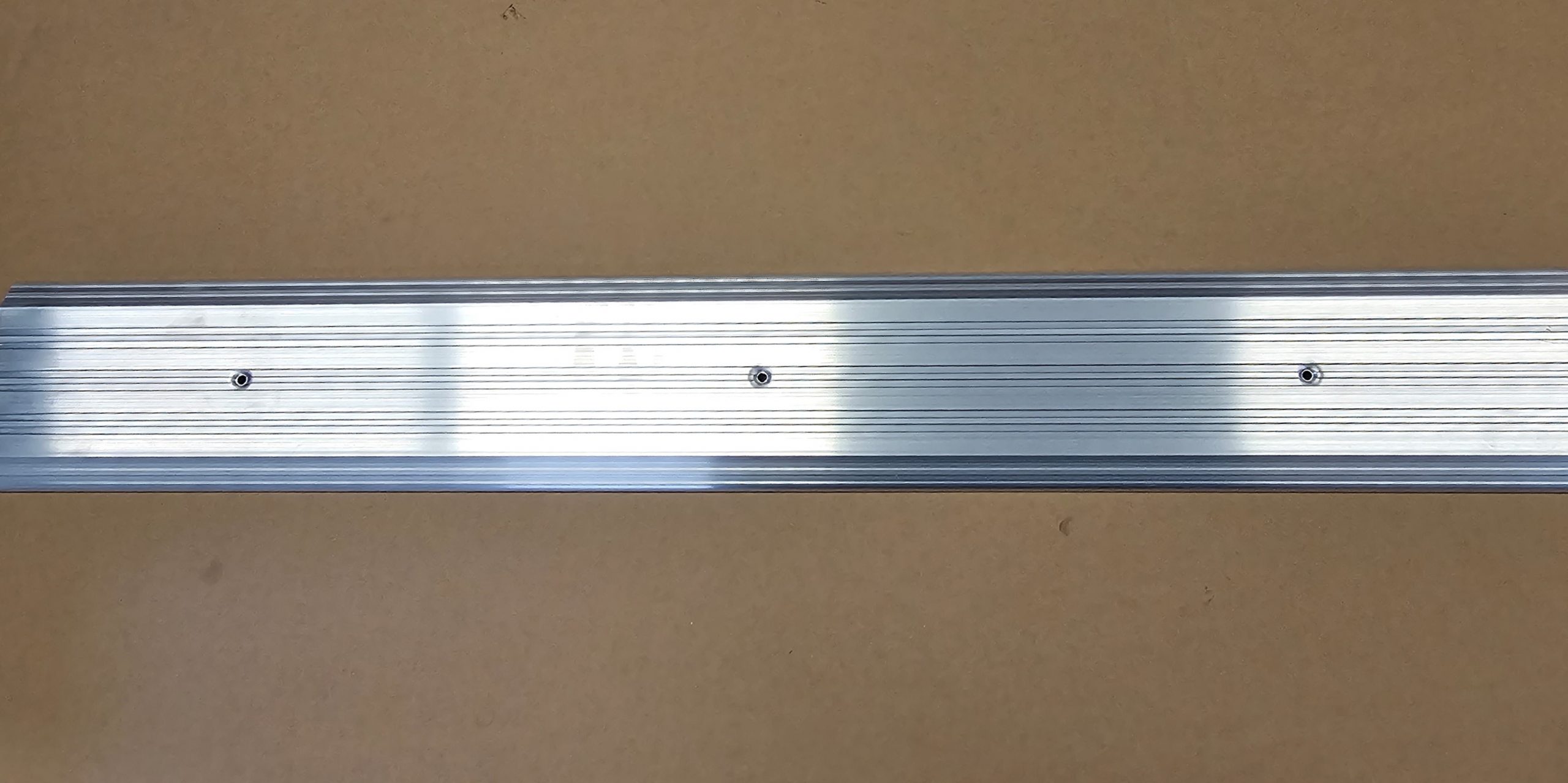

36in X 1/2in X 5in saddle threshold, mill aluminum finish

36in X 1/4in X 5in saddle threshold, mill aluminum finish

48in X 1/2in X 5in saddle threshold, mill aluminum finish

48in X 1/4in X 5in saddle threshold, mill aluminum finish

6ft X 5in X 1/2in saddle threshold

6ft X 5in X 1/4in saddle threshold

Von Duprin 22 dummy pull trim for OGP/ODP doors

Von Duprin 6211 electric strike. Found mostly in the auto center if the brand is not HES. This is the 12v version 626 Finish

Von Duprin 6211 electric strike. Found mostly in the auto center if the brand is not HES. This is the 24v version 626 Finish

Von Duprin 99 Center Case Cover, for TLE customer entrance doors

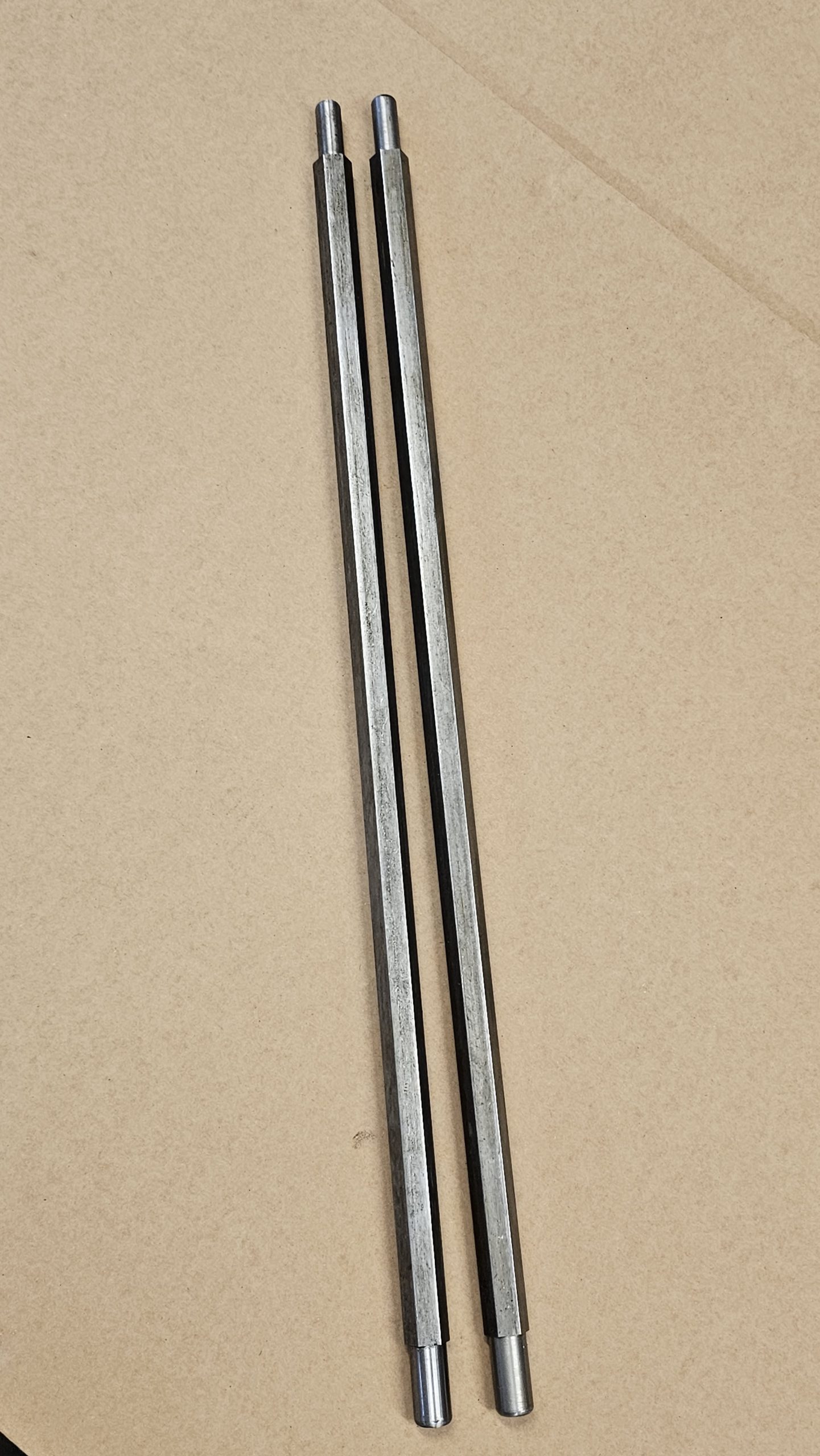

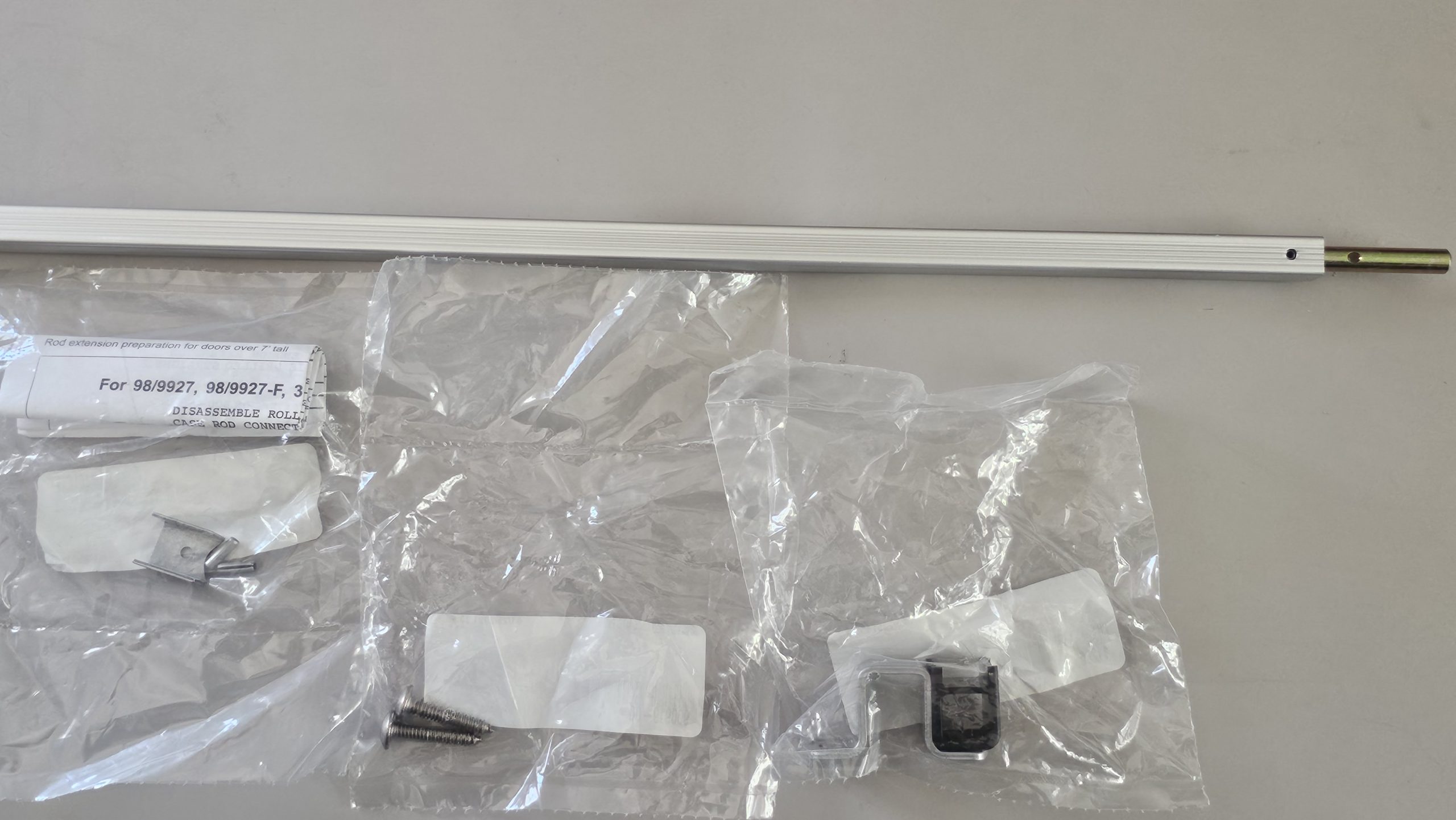

Von Duprin 9927 extension rod for doors over 7ft tall. For interior fire doors

Von Duprin 99 lever trim, blank escutcheon, Left Hand Reverse. For fire doors

Von Duprin 99 lever trim, blank escutcheon, Right Hand Reverse. For fire doors

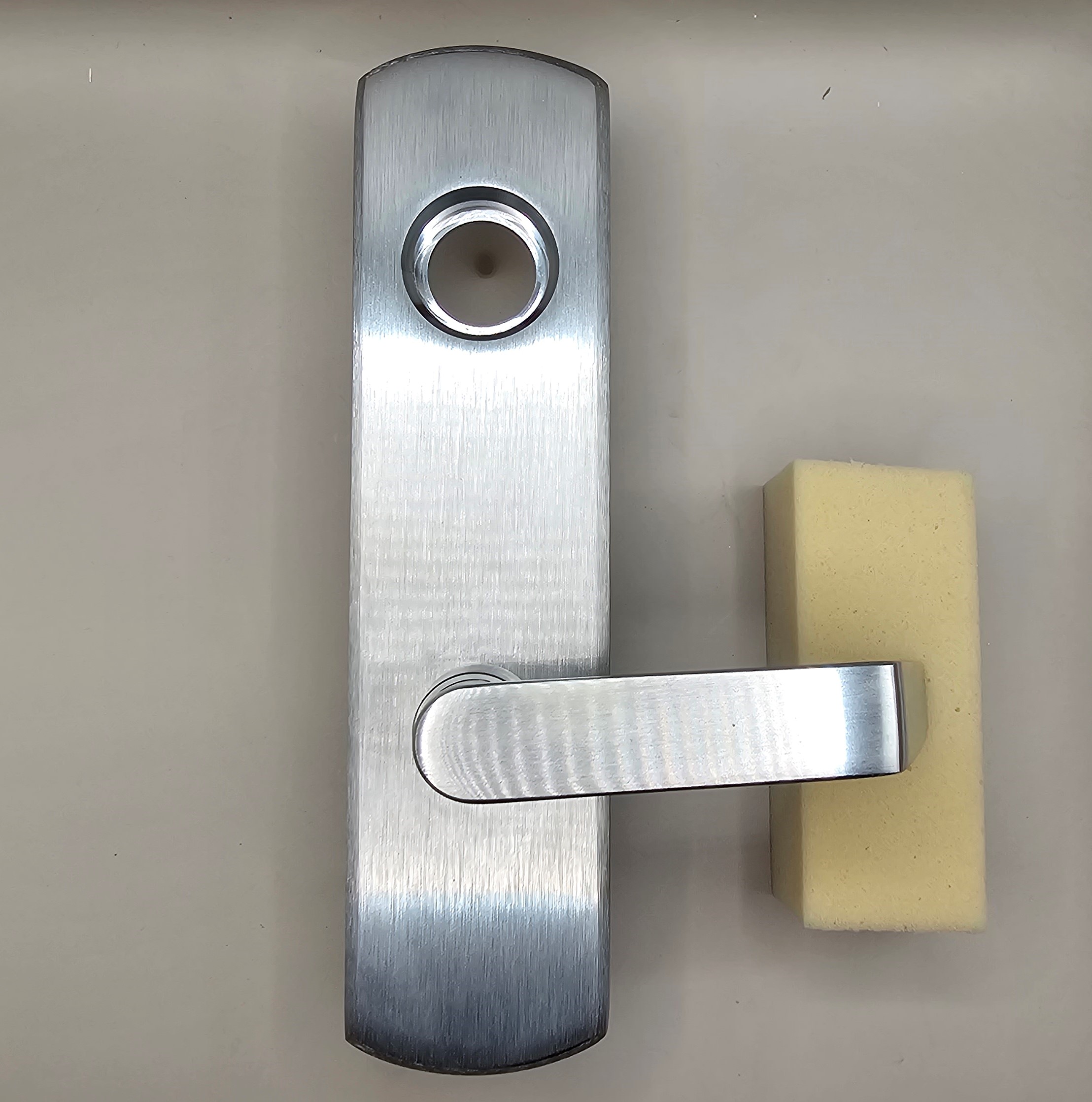

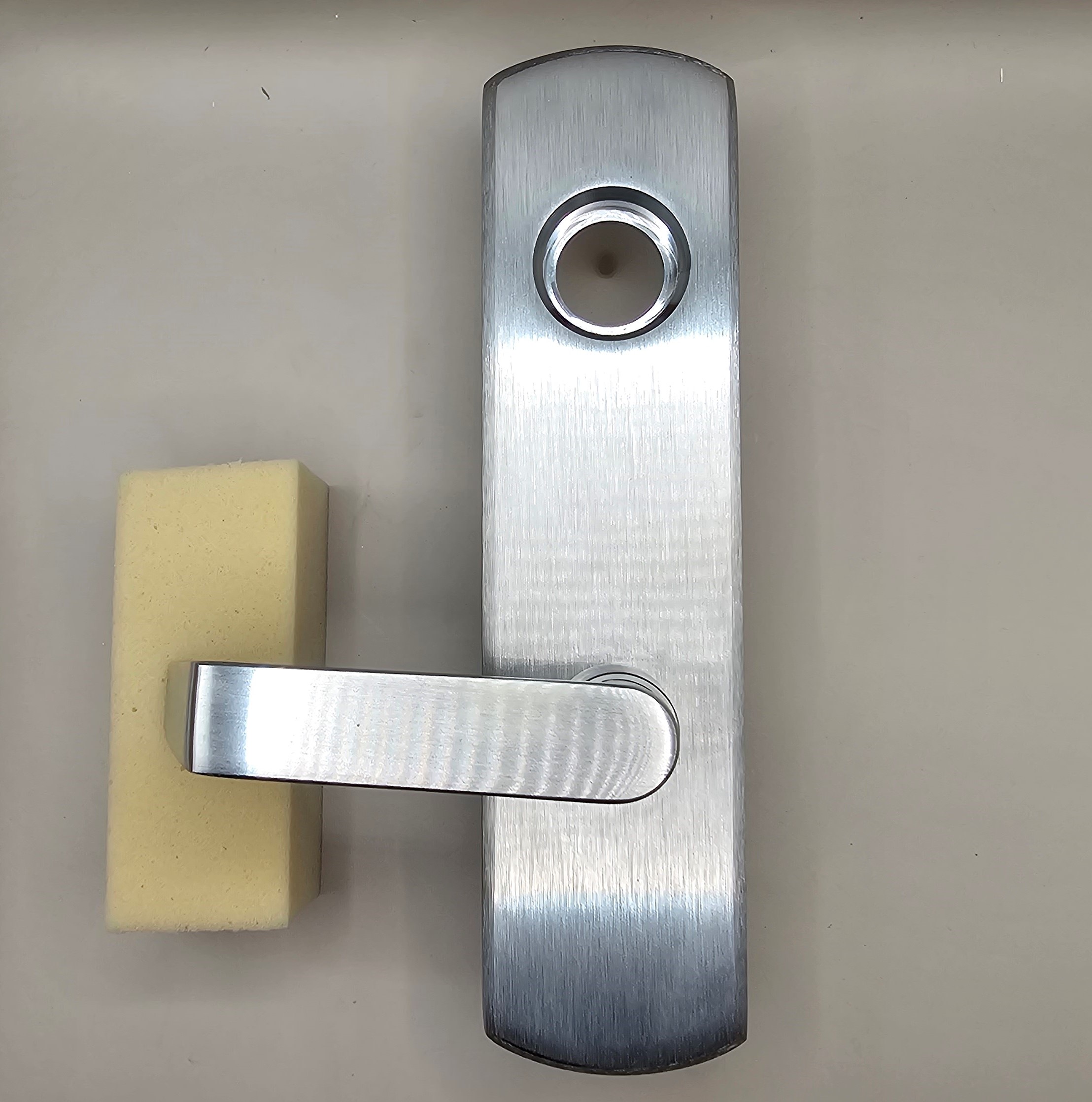

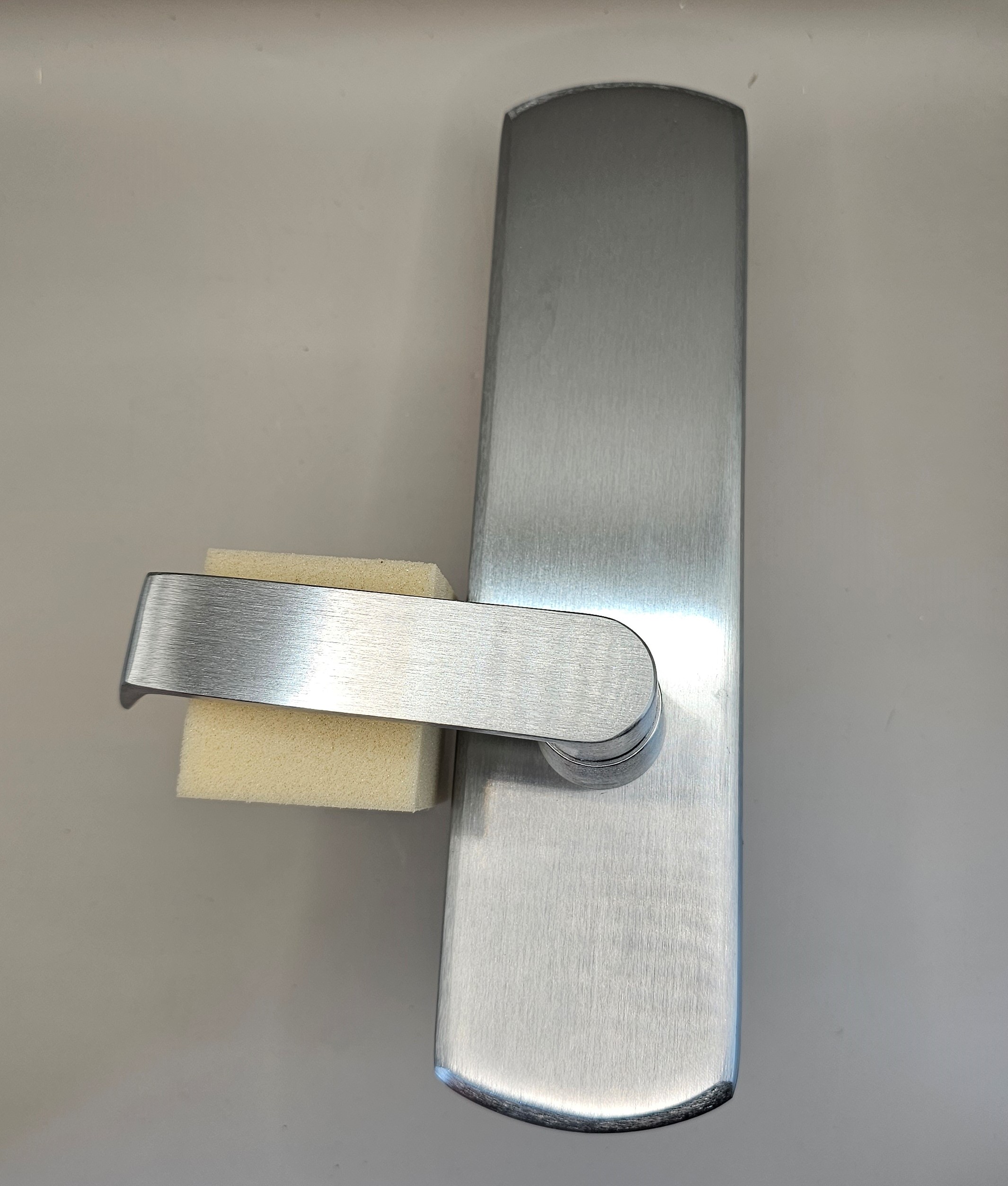

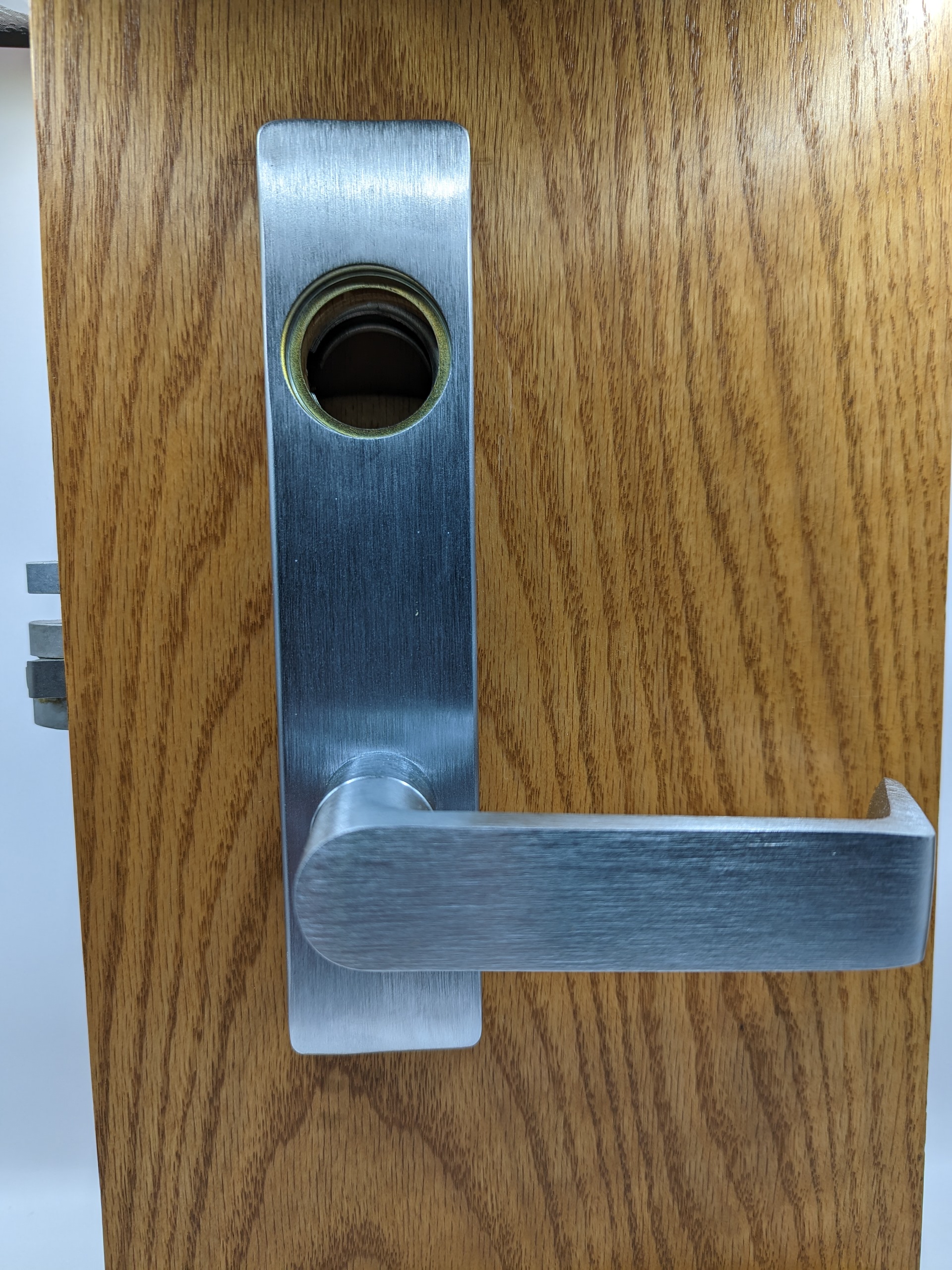

Von Duprin 99 lever trim, standard, Left Hand Reverse. TLE customer entrance

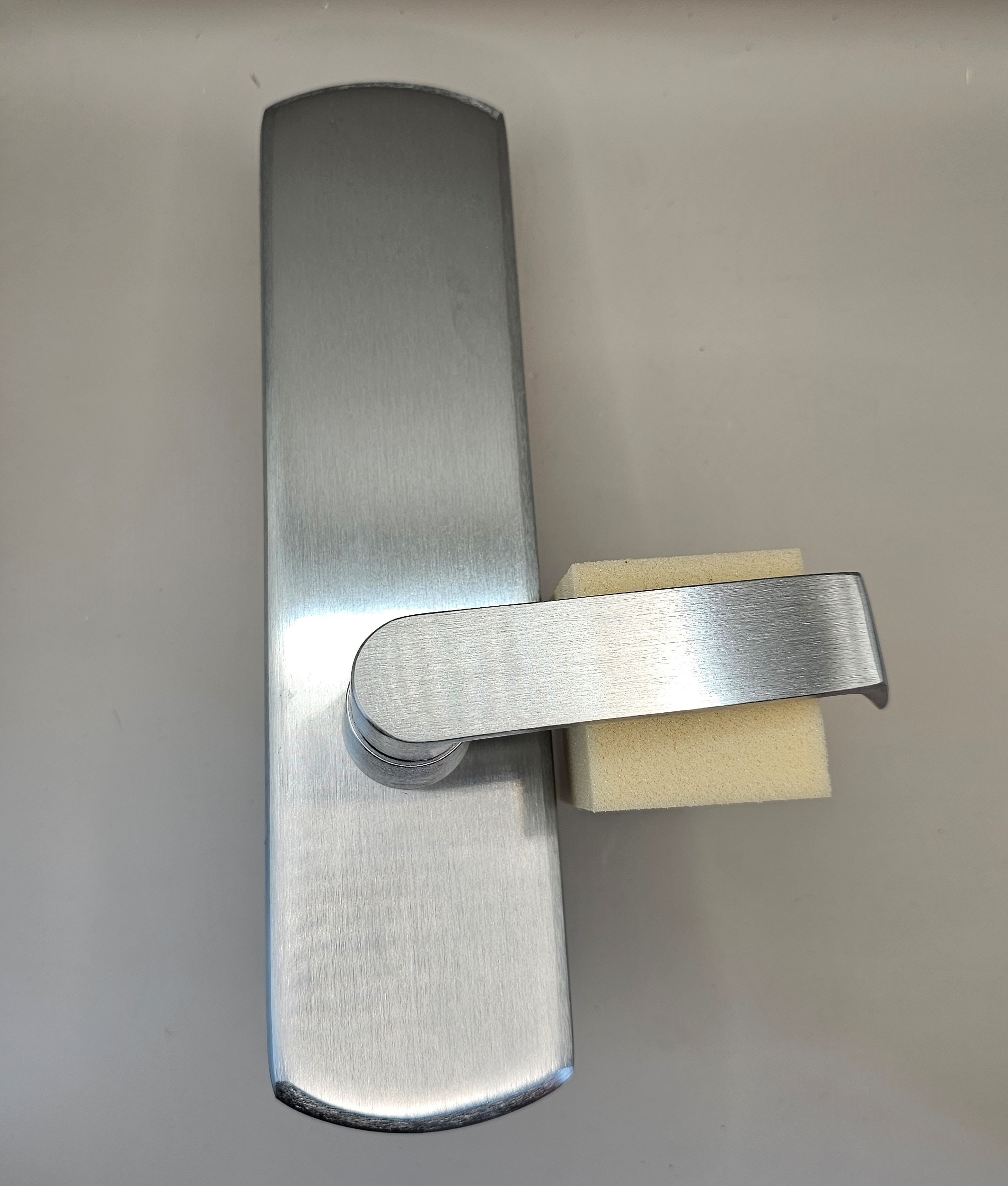

Von Duprin 99 lever trim, standard, Right Hand Reverse. TLE customer entrance.

Replacement end cap for Von Duprin 99 series push bars. Metal, rather than plastic to resist impact.

Used on autocare centers when paired with a lever trim kit. Pushbars with no trim are sometimes used as on emergency exit doors as well. This version is for 3ft wide doors. Hex Dogging kit included and pre-installed.

Top Latch for Von Duprin 99 series push bars with surface mounted vertical rods. Found mostly on fire doors. Comes as a bare latch, cover not included.

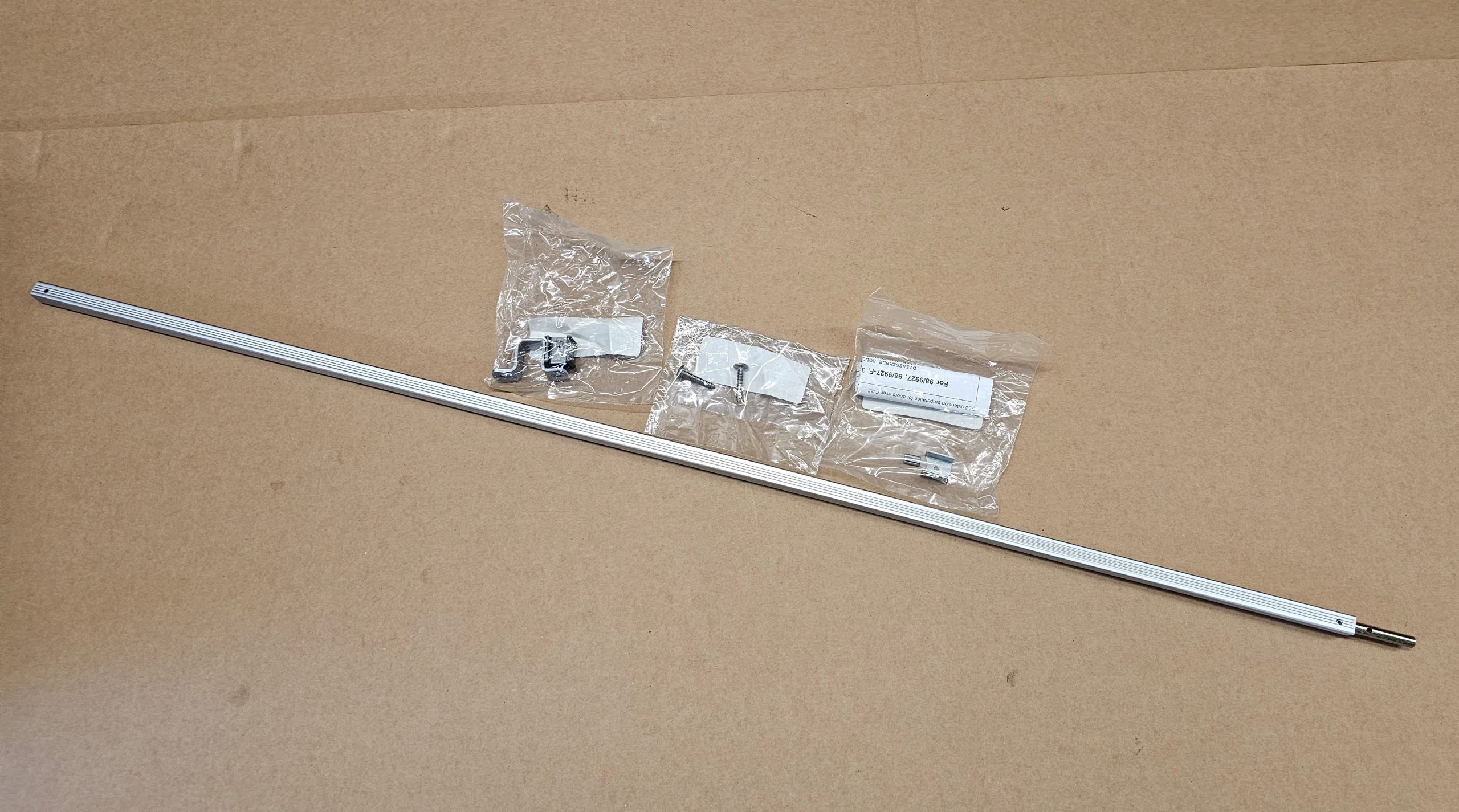

Von Duprin 9927 top rod. For Interior fire doors

Von Duprin 9927 Center Case Cover, For Interior Fire Doors

Fire rated exit device with top vertical rod only. Used on interior fire doors. To preserve fire rating, must be ordered in pairs.

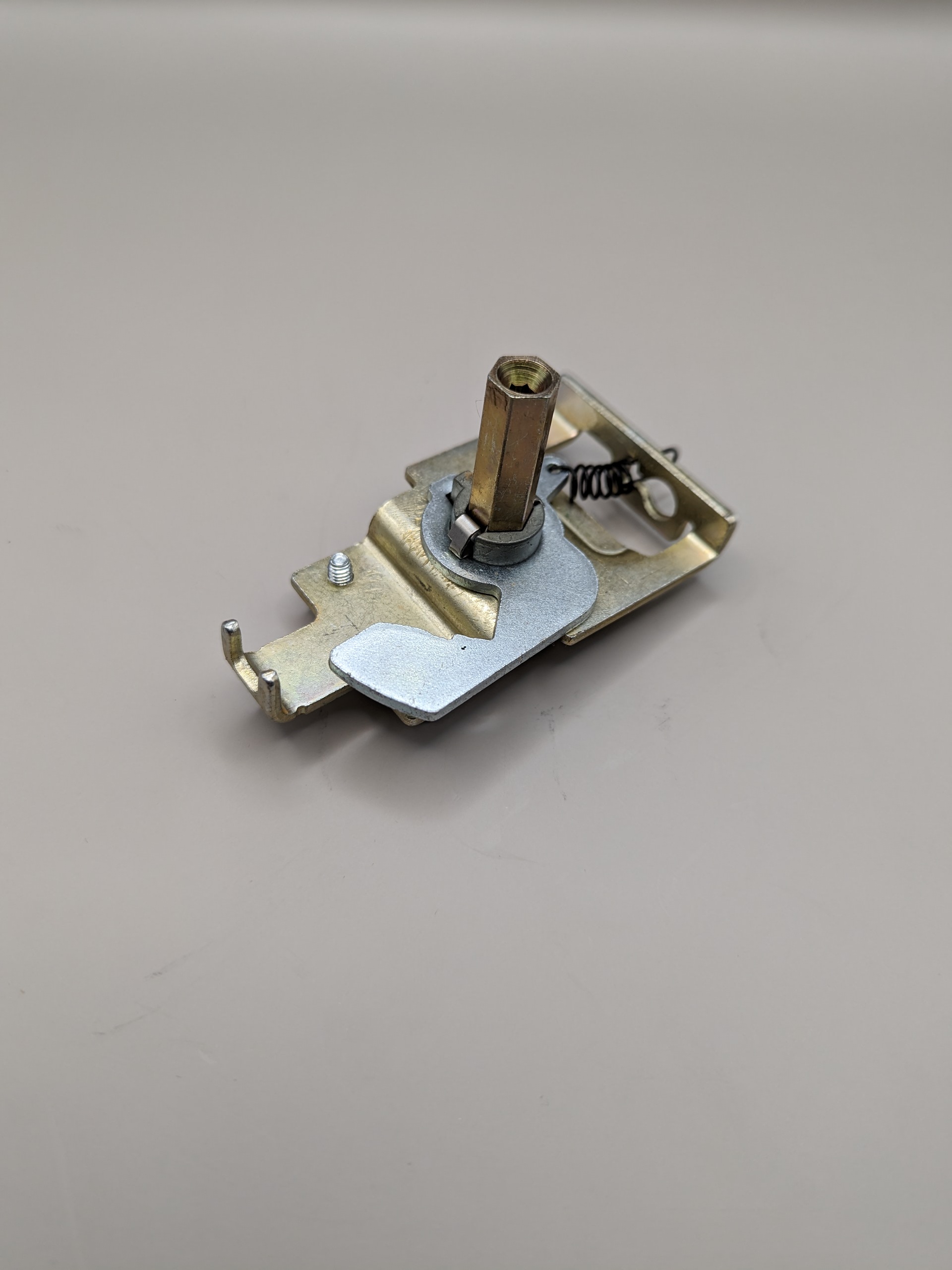

Standard Von Duprin hex dogging assembly. Includes dogging assembly and one hex dogging key. Typically used on auto center doors.

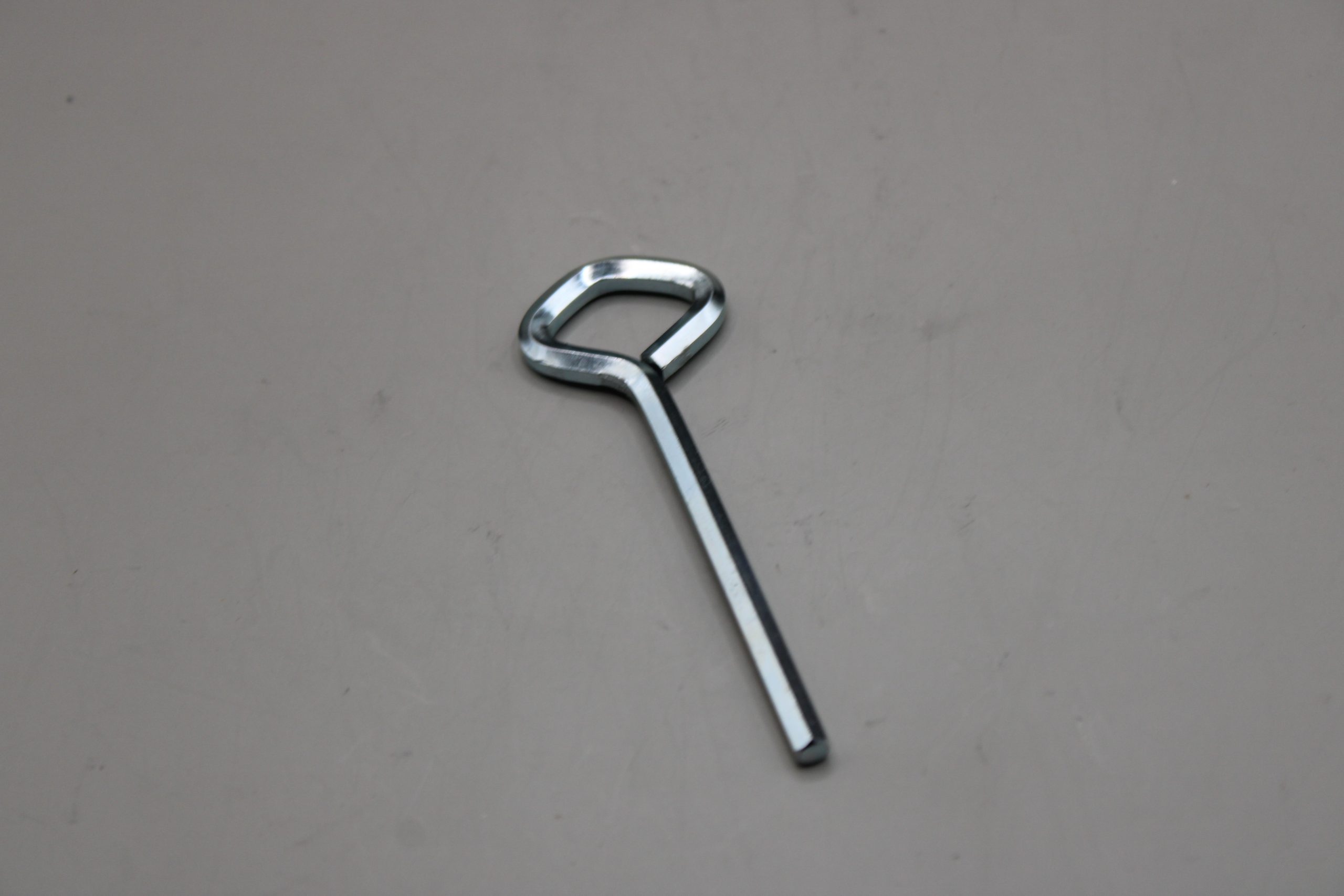

Hex Dogging key for Von Duprin panic devices (push bars)

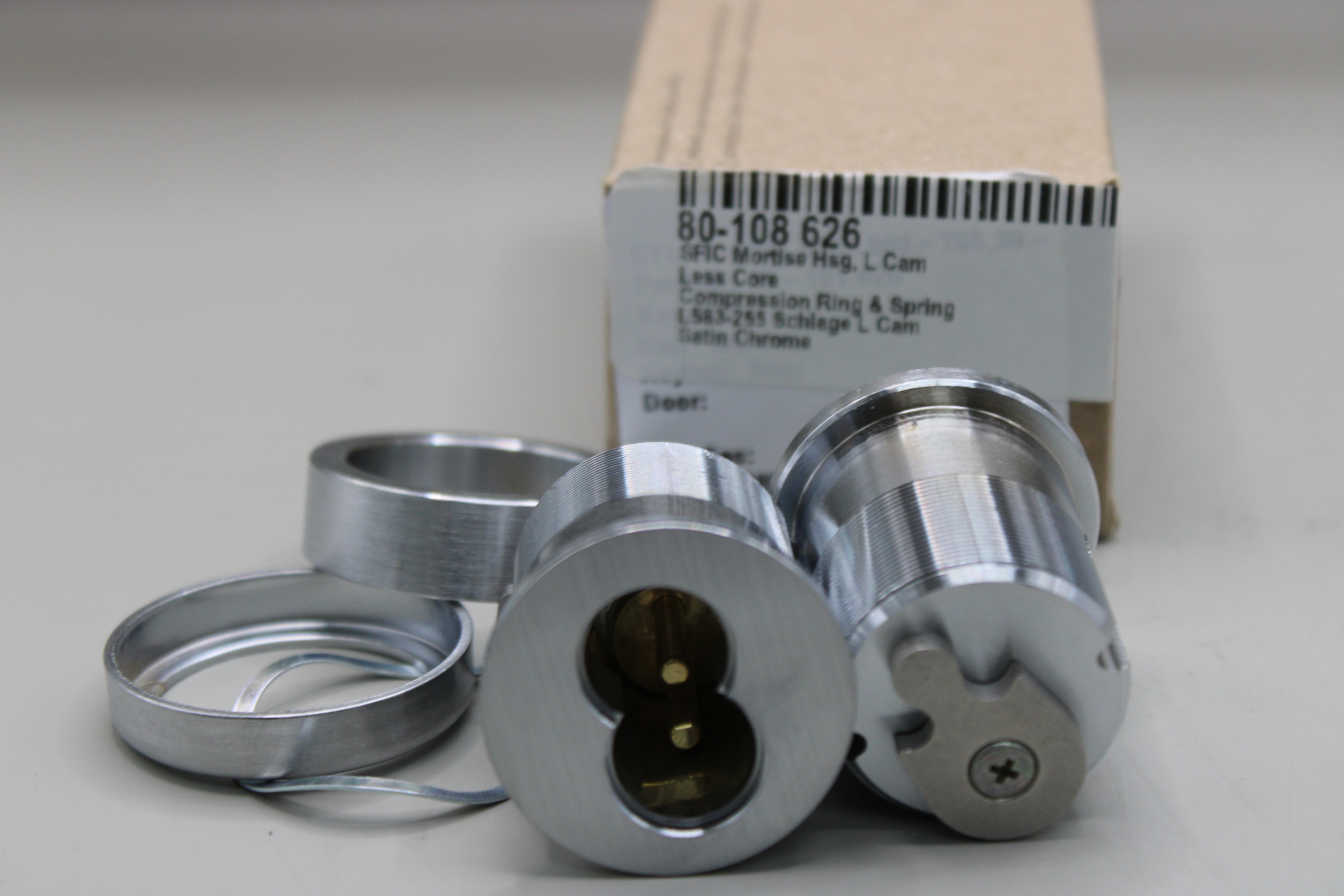

Schlage SFIC mortise housing for used in Schlage L-series mortise locks.

Schlage SFIC mortise housing for use in storefront locks by Adams Rite.

Armor plate for hollow metal doors, 30in x 34in.

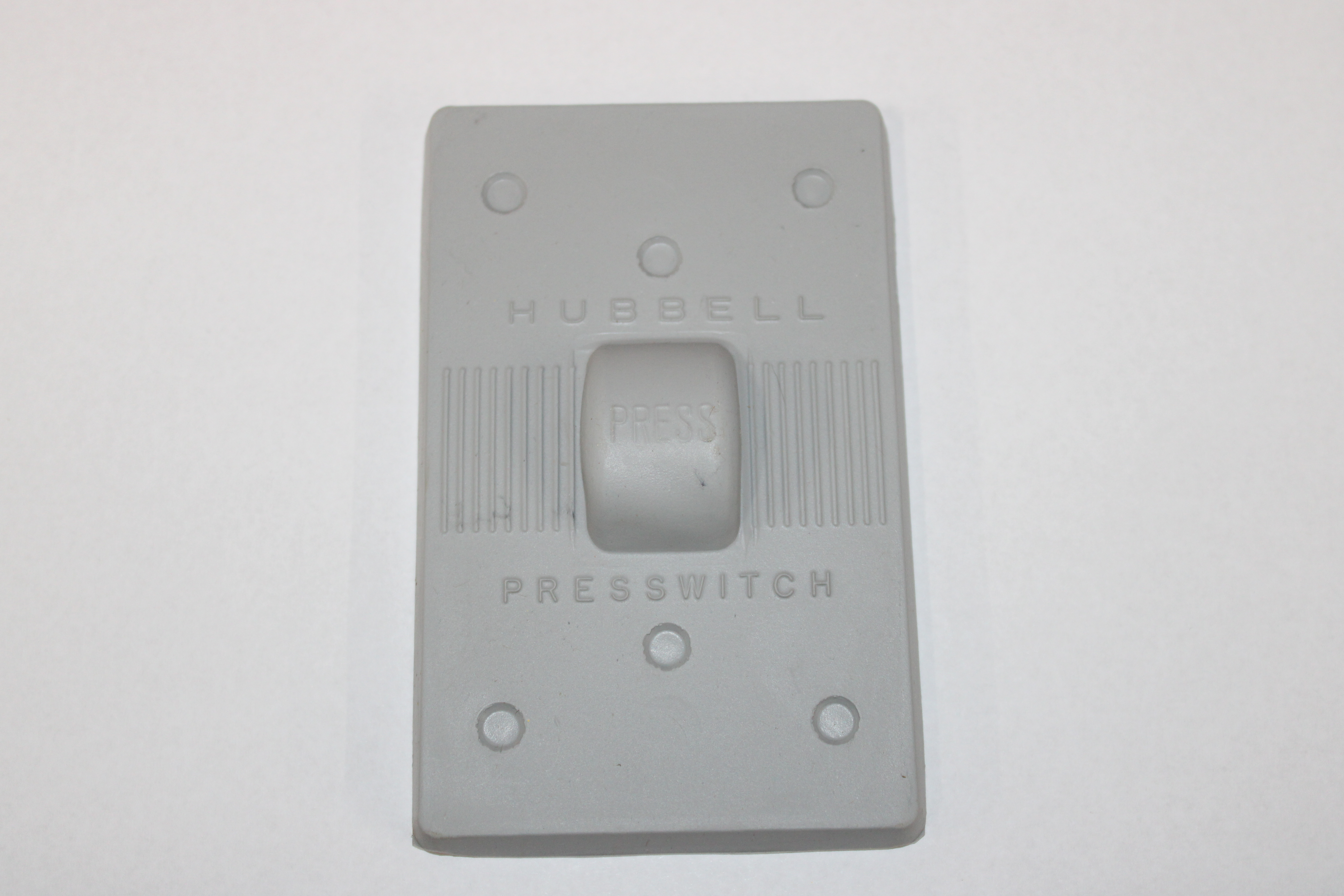

Weatherproof neoprene cover for Hubbell doorbell switches.

Hubbell Doorbell switch

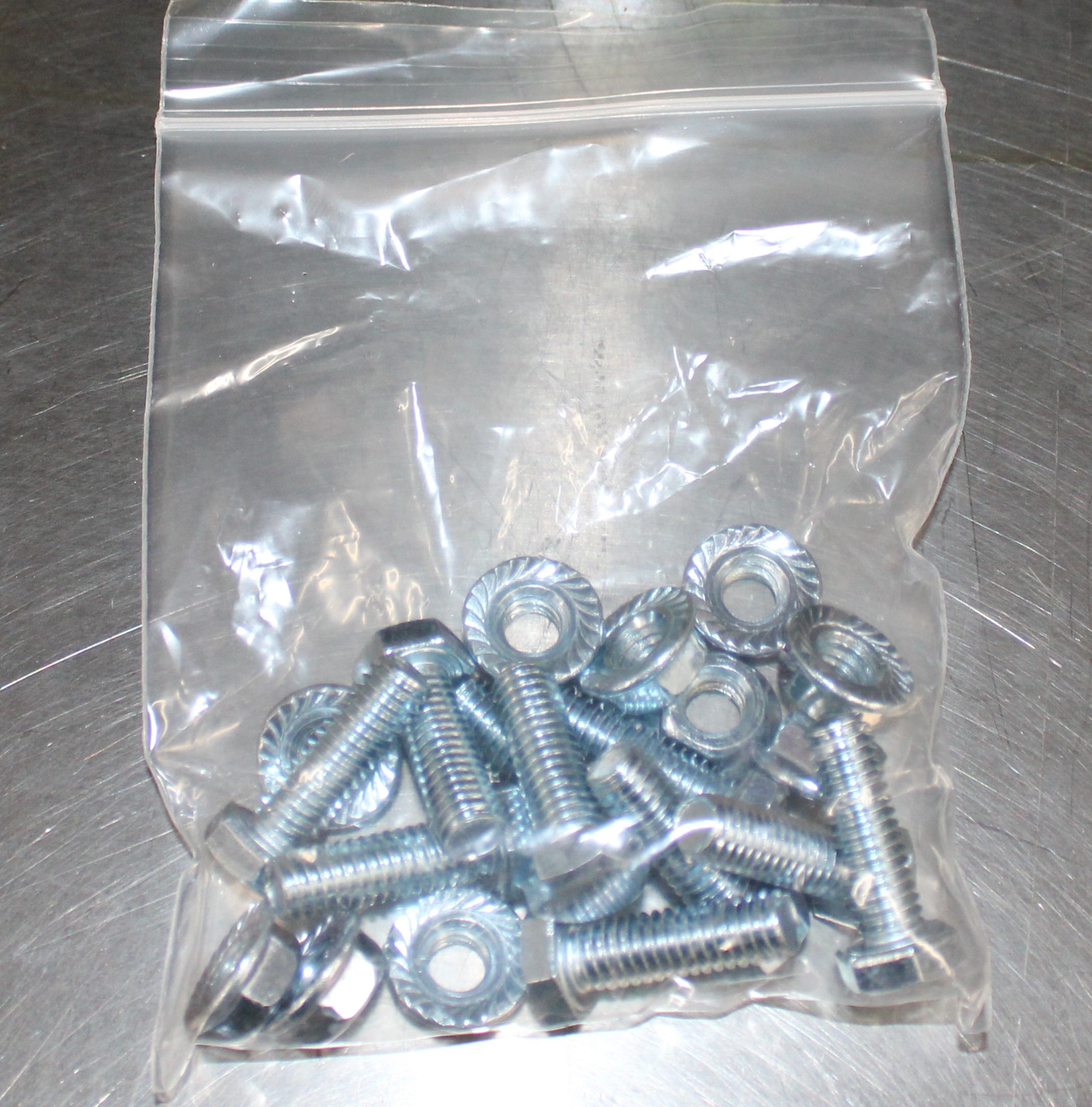

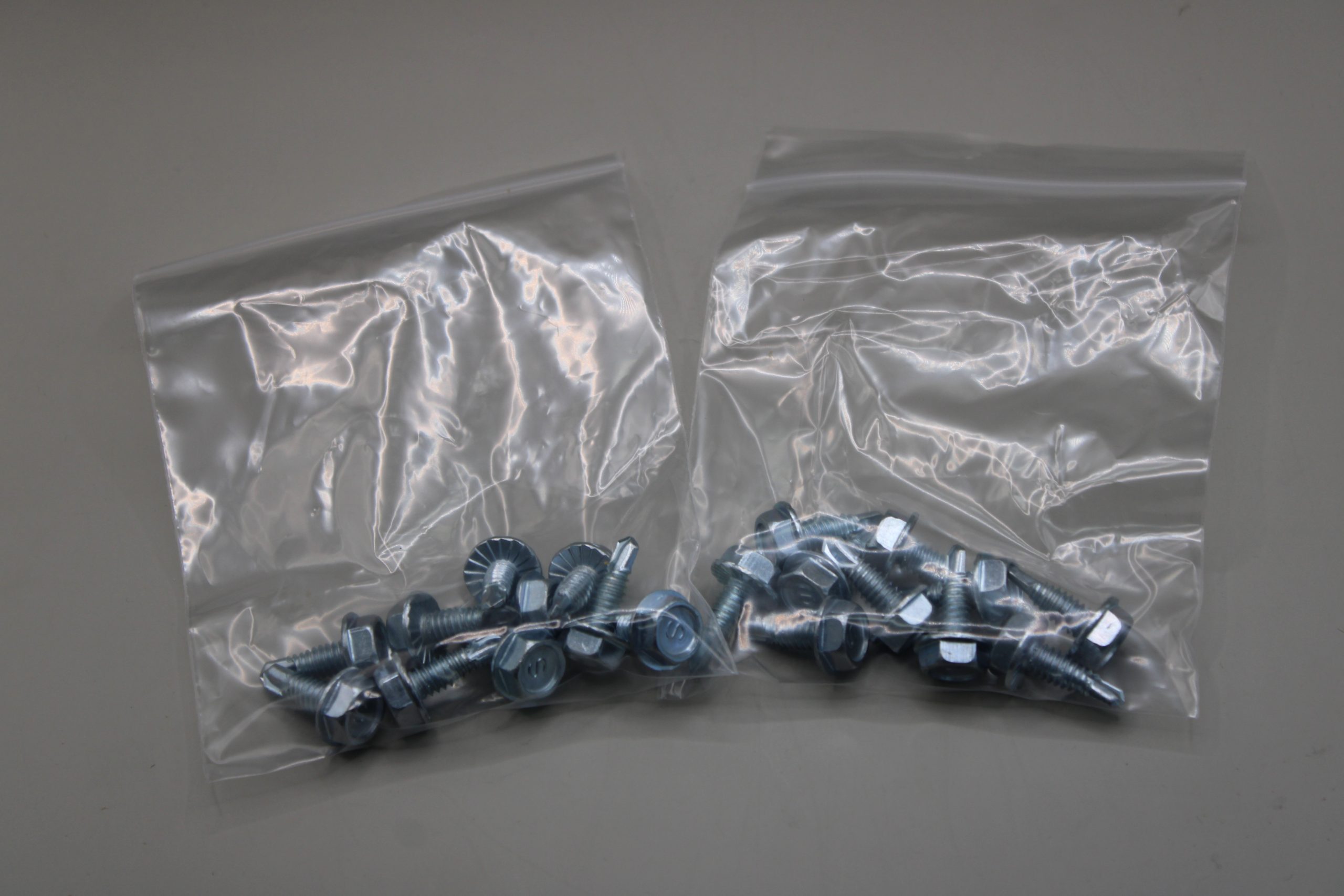

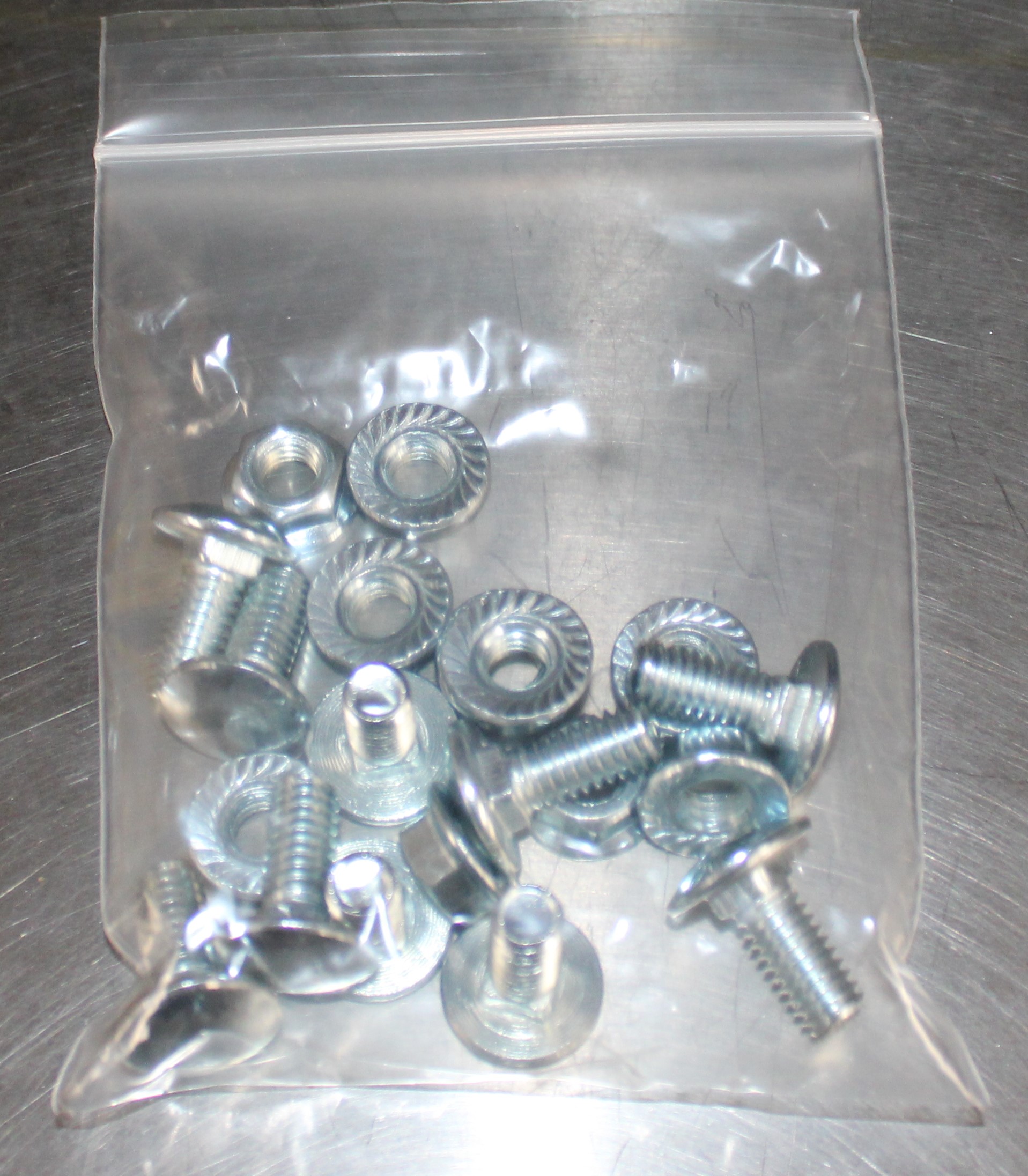

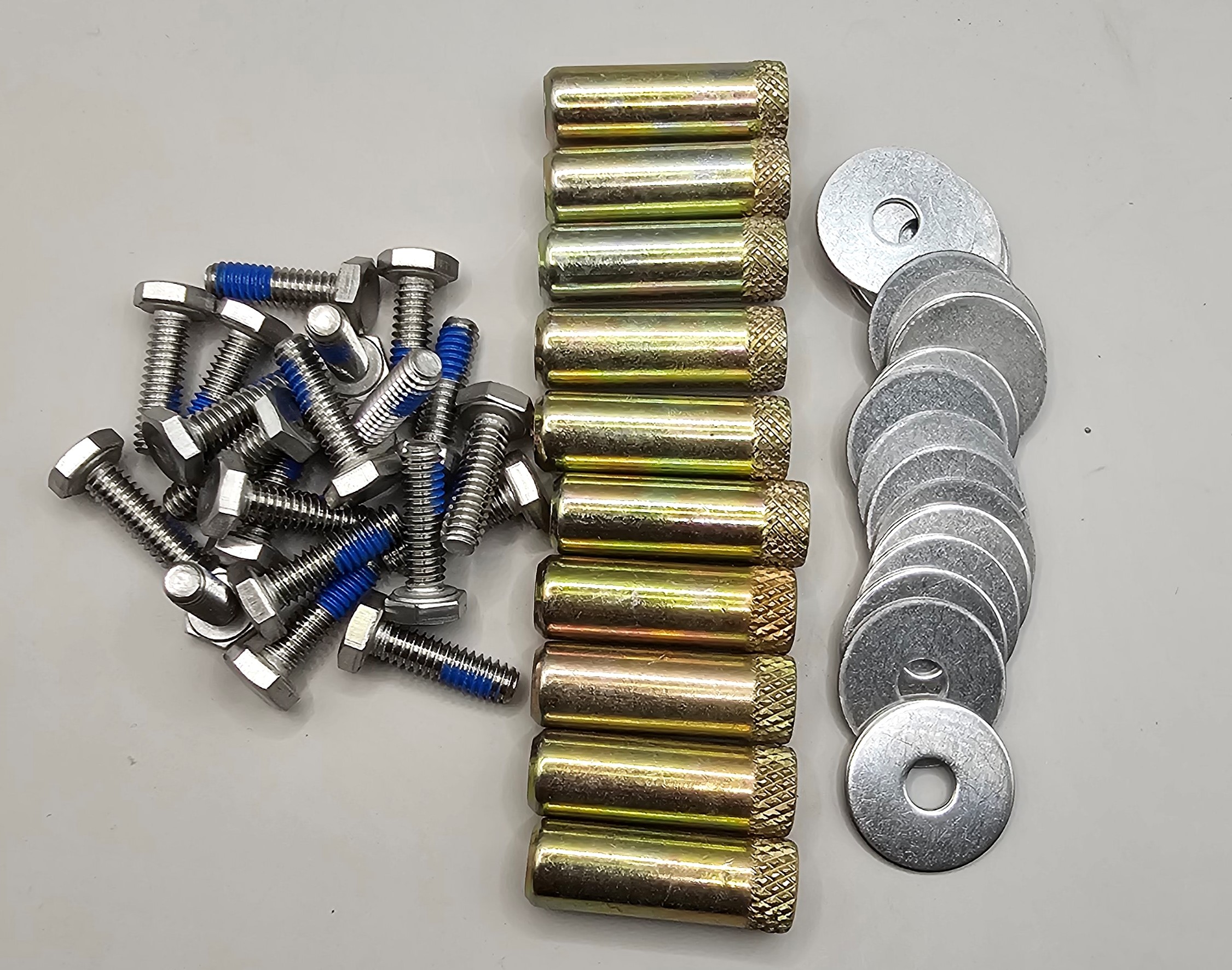

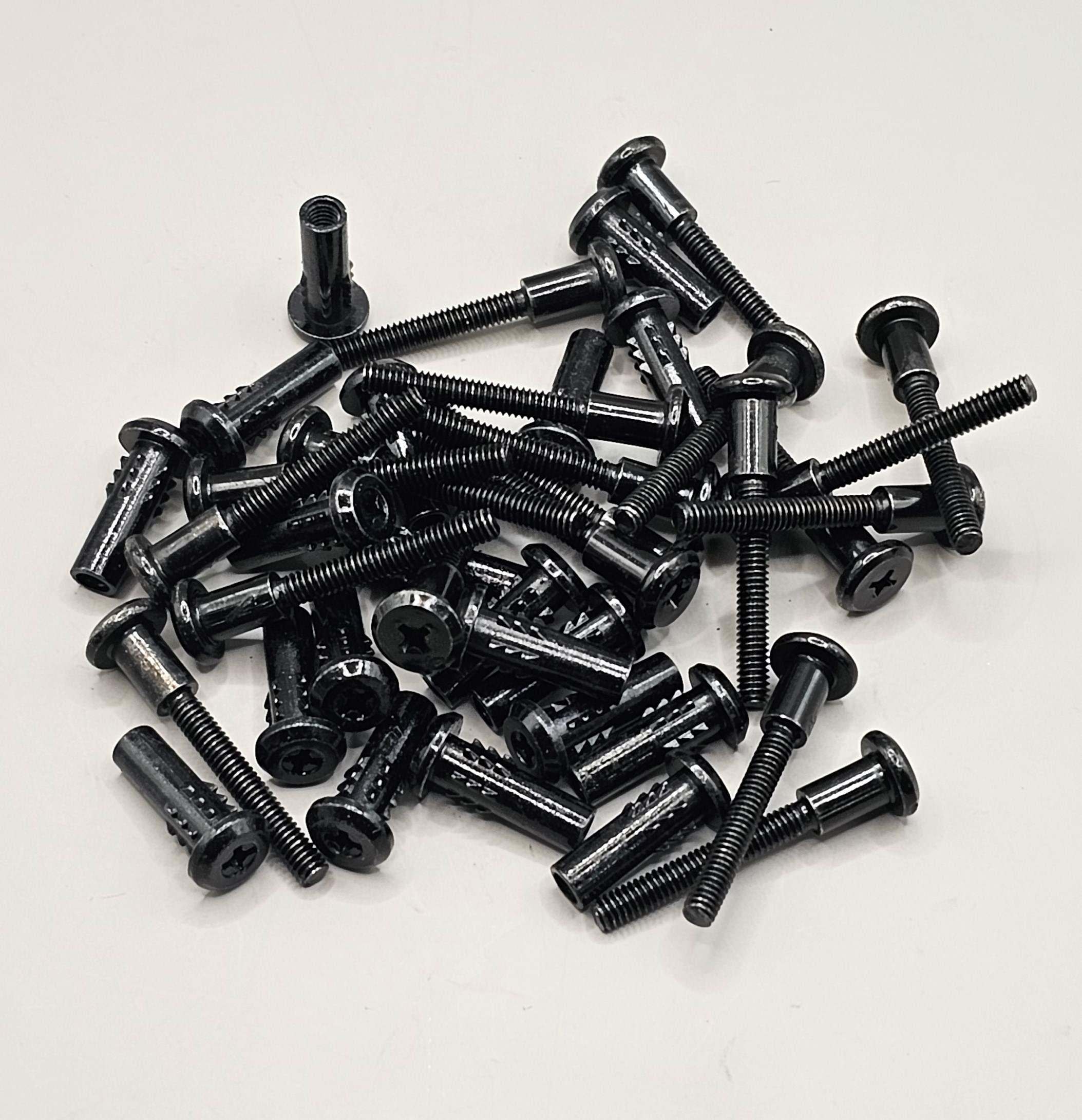

Thru-bolt and self-drilling/tapping screw pack for LCN 4040 closers

Push to exit button with interchangeable faceplates.

Please contact us at orders@tristatecommercialdoors.com with the following information in order to get parts or full door quotes: A full view picture of the door(s) … Read More

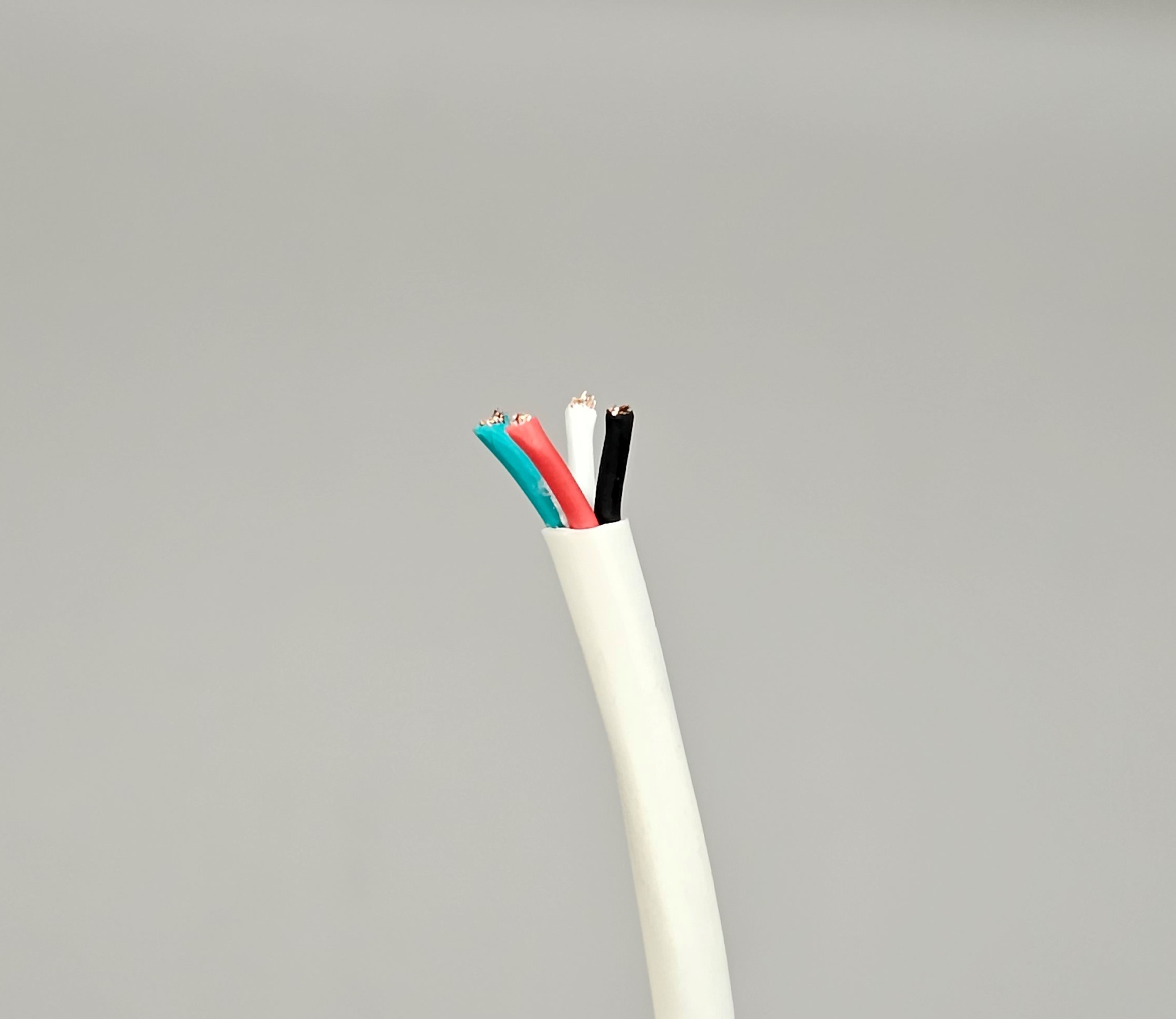

18/4 wire for OGP wiring, ALK boards, Besam operators, sold per foot

Bottom sweeps for pest control.

Vinyl bottom sweeps for weather protection and pest control.

Weather seal kits for around the perimeter of a door. For other sizes and finish options, please contact us.

Bottom sweeps for pest control.

Vinyl bottom sweeps for weather protection and pest control.

OGP/ODP door timing relay, programmable delay relay

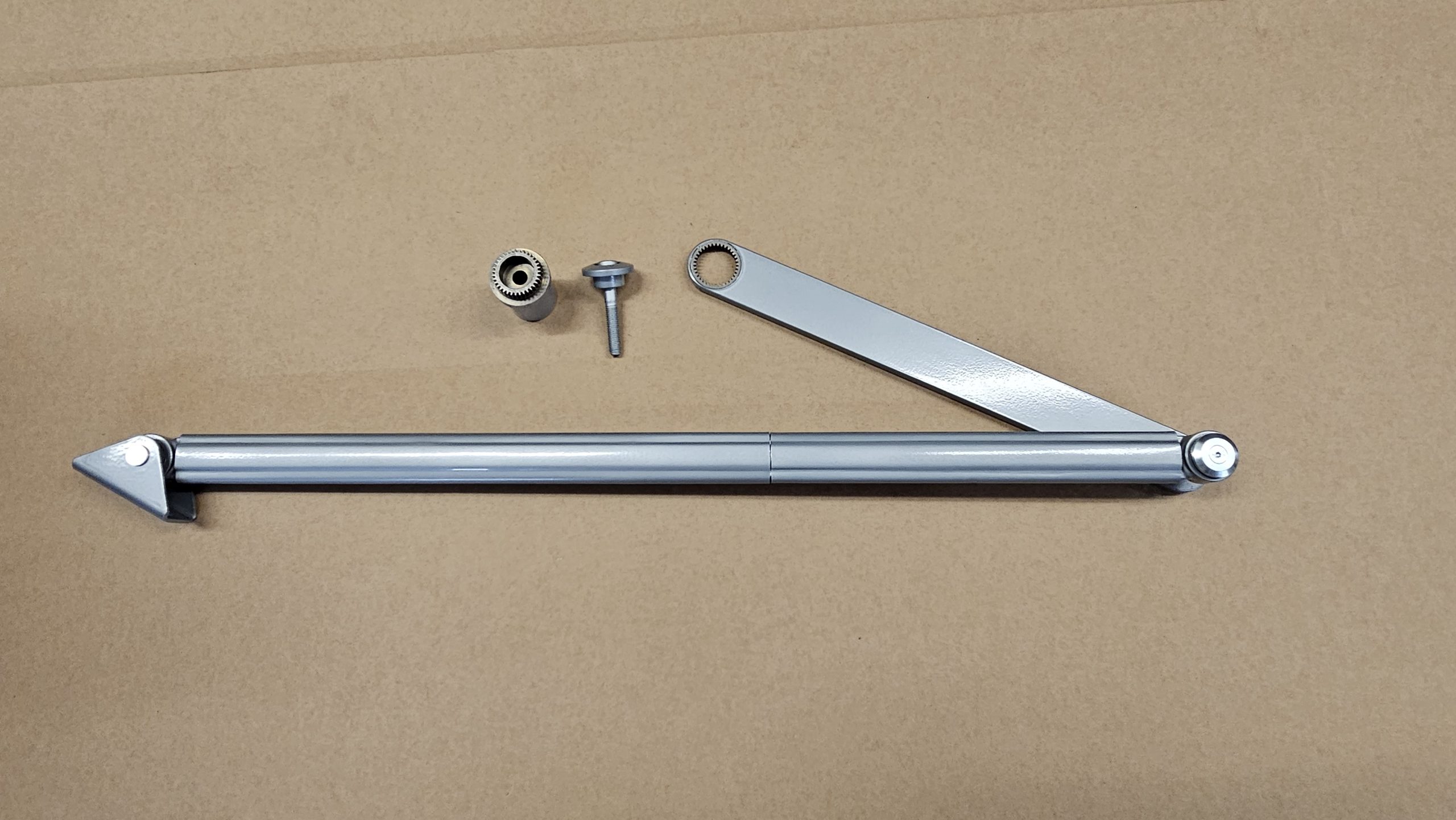

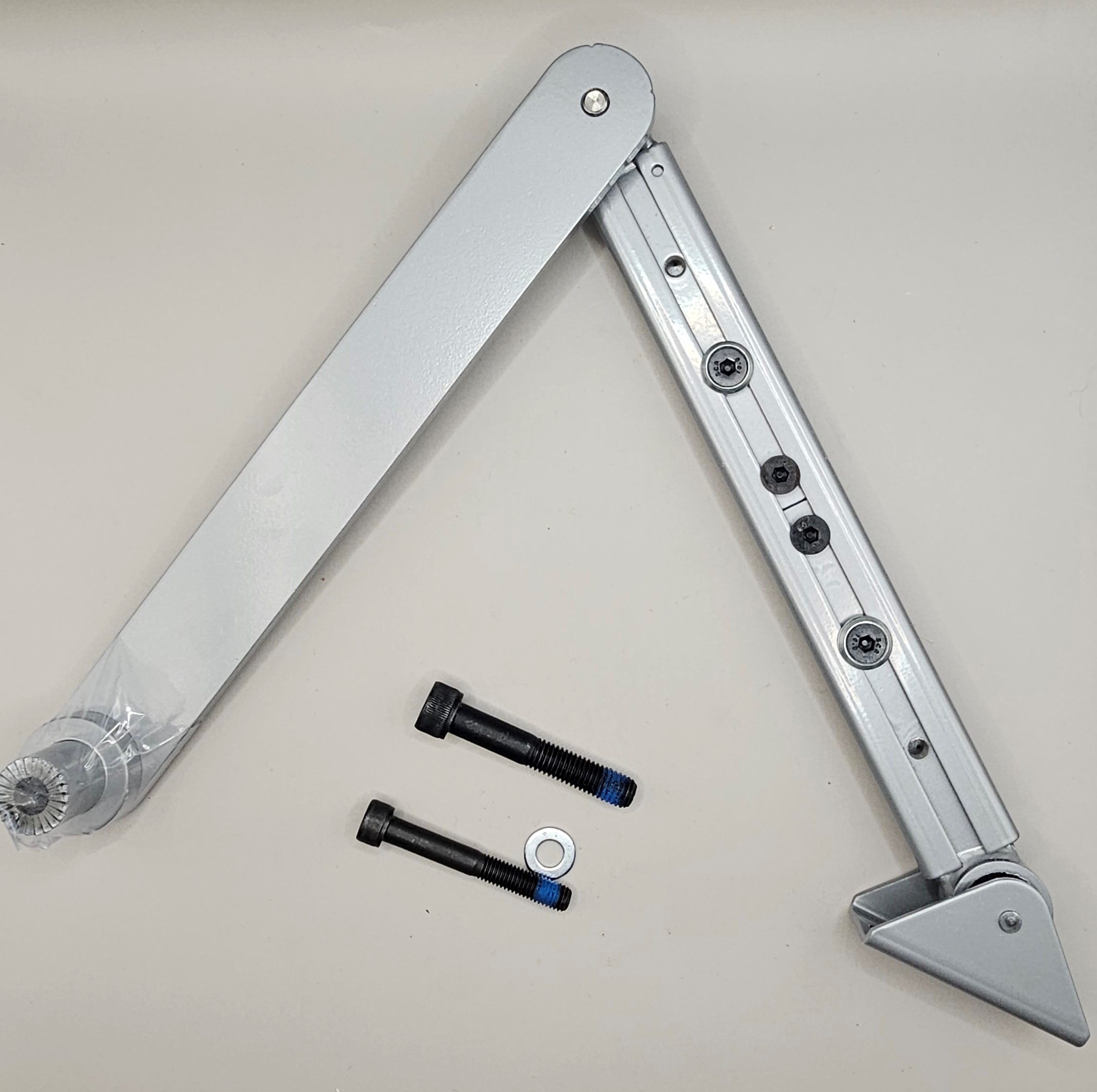

Besam SW200 push arm for OGP doors, Besam/Assa operator

26 bit proximity cards for Camden Door Controls card reader found on many Stanley sliding doors.

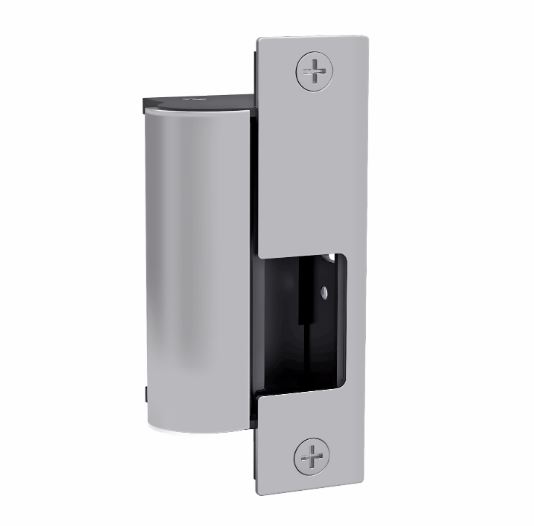

The HES 9600 is the standard OGP strike for Walmart stores. If you have another model, please contact us with pictures and model information if available.

Proximity cards for HID card readers. Comes with programming instructions. Tech support available if needed. 26 bit cards, sequentially numbered.

Card reader used for Online Grocery Pick-up doors.

If an endcap is pulled off by an over-extended opening, the wire whip is usually also pulled out and is then too short. These wire whips are 18” long and provide enough slack to allow for employees over-opening the door.

Record, push arm for OGP systems, Record 8100 operator

Auxiliary reader for Securakey OGP card readers. Usually placed on the outside of the door. Do not replace other brands with Securakey readers. All readers must be replaced like-for-like.

Securakey Proximity card – 32bit for Radio Key 600 readers The RK600 system is not standard, but is found on some OGP doors. Verify the system you have before ordering cards. Cards are available only as p… Read More

Securakey RK600 Reader for OGP doors. Please note that it is mandatory to replace readers like-for-like. Do not replace an HID or Camden reader with a Securakey reader.

Universal card reader cover for HID card readers. Used on the outside of the door to protect card reader from weather.

Tinted card reader cover. If the HID card reader is in direct sun, it can overheat. This tinted cover can help keep the reader cool.

The Von Duprin 22 push bar is the standard Walmart OGP push bar. Comes with alarm board (ALK). We pre-install the switch that needs to be wired into the ALK board to save you some time and avoid needing to take the bar apart to in… Read More

Replacement ALK board with face plate. Click Here for wiring diagram

Replacement end cap for Von Duprin 22 series push bars most commonly used on OGP doors. Plastic end caps that come with the bars often break and replacing with the metal version provides a more permanent solution. End caps will need to b… Read More

VR1T Voltage Regulator for OGP, ODP doors

Camden Door Controls proximity card reader for OGP doors, version 3.

Safety bollard, typically used in high-wind situations for OGP doors. Blocks the door from being blown open past the hard stop.

18ft armor conduit for running OGP door wire up the door to protect from damage. Recommended additional part is 20ft of 18/4 wire.

New Record 8100 operator and control for OGP doors. Requires old unit to be returned as core. Please note that we offer only limited tech support on this item. If you have no experience with low-energy door operat… Read More

Rebuilt Record 8100 operator and control for OGP doors. Requires old unit to be returned as core. Please note that we offer only limited tech support on this item. If you have no experience with low-energy door op… Read More

New Besam/ASSA ABLOY SW200 operator. Requires return of old unit as core. Please note that we offer only limited tech support on this item. If you have no experience with low-energy door operators or do not feel c… Read More

Rebuilt Besam/ASSA ABLOY SW200 operator. Requires return of old unit as core. Please note that we offer only limited tech support on this item. If you have no experience with low-energy door operators or do not fe… Read More

Control for Besam/ASSA ABLOY SW200 OGP system. Requires return of old control as core. Stock of rebuilt products is limited. Please note that we offer only limited tech support on this item. If you have no experie… Read More

Control for Besam/ASSA ABLOY SW200 OGP system. Requires return of old control as core. Stock of rebuilt products is limited. If we are out of rebuilt units, you can purchase a new unit as an alternative. See part# 331008346 … Read More

Full OGP Operator setup. Includes Operator, control, harnesses, arm, etc. Please note that we offer only limited tech support on installation of full operators. If you have no experience in low-energy operator installation, we rec… Read More

Key for Camden reader alarm box.

*Now pre-punched for easier and cleaner looking installation* Used for sealing gaps around and under sectional garage doors. Meets EcoLab Standards Nylon bristles in an aluminum angled retainer. 4… Read More

*Now pre-punched for easier and cleaner looking installation* Used for sealing gaps around and under sectional garage doors. Meets EcoLab Standards. Nylon bristles in an aluminum angled retainer. … Read More

1” Shaft Collar

Universal bottom seal – 6ft 2in length Fits doors 1in to 2in thick. Wrap-around style is easy to install and easy to cut to fit. Keeps rodents and weather out of the store and meets EcoLab requirements (they may also requ… Read More

Universal bottom seal – 8ft 2in length – cut into (2) 4ft 1in lengths for shipping Fits doors 1in to 2in thick. Wrap-around style is easy to install and easy to cut to fit. Keeps rodents and weather out of the store and… Read More

Jamb seal for overhead doors. Snaps on to angle on exterior of door and covers the sides of the door to EcoLab standards. Available only in 100 foot rolls.

2” roller wheels come standard with 7” long stems

24 inch winding bar pair, 5/8 to 1/2 inch cone

Garage door lubricant, 14oz

3” roller wheels come standard with 7” long stems.

3inch exhaust port for TLE doors, 2in thick

400-54 Cable Drum for 54” high lift

5/16 x 1 Clevis Pin and 3/32×1 cotter pin – 10 pack of each

5/32” Cable Thimble – 36 pack

5/32\” Aluminum Sleeve – 36 pack

5/32\” Cable Stop – 36 pack

Overhead door cable, 5/32in, reel of 500ft

525-54 Cable Drum for up to 54” high lift

575-120 Cable Drum for up 120” high lift

850-132 Cable Drum for Vertical Lift Doors

Garage door pull down rope, 3/8in, black, 8ft length.

Padlock, interchangable core, 3 inch shackle, for dock doors

Bottom Bracket Pair – Assembly – 1.5\”

Bottom Bracket Pair – Assembly 2\”

Garage door cable package. Includes enough cable and fittings to make 32 average cables. Includes 500ft cable and 36 each thimbles, stops, sleeves

Chain keeper for overhead door chain hoists

Commercial End Bearing Plate – 6” offset. Comes as a pair.

6’2” duraflex bottom panel

Duraflex bottom panel, 8ft 2in

Heavy duty step/pull handle.

Duraflex heavy duty slide lock

DuraFlex track guards are bolt-down solutions to protecting overhead door tracks from impacts by pallet jacks and other dock equipment. Stocked model is 24 inches of track coverage. Set comes with concrete anchors.  … Read More

#3 graduated track clip

Hanger angle bolts – 10pack

#1 garage door hinge 11 gauge steel, zinc coated Make sure to check the number stamped on the hinge to identify it

#2 garage door hinge 11 gauge steel, zinc coated Make sure to check the number stamped on the hinge to identify it

#3 garage door hinge 11 gauge steel, zinc coated Make sure to check the number stamped on the hinge to identify it

#4 garage door hinge 11 gauge steel, zinc coated Make sure to check the number stamped on the hinge to identify it

#5 garage door hinge 11 gauge steel, zinc coated Make sure to check the number stamped on the hinge to identify it

#6 garage door hinge 11 gauge steel, zinc coated Make sure to check the number stamped on the hinge to identify it

#7 garage door hinge 11 gauge steel, zinc coated Make sure to check the number stamped on the hinge to identify it

# garage door hinge 11 gauge steel, zinc coated Make sure to check the number stamped on the hinge to identify it

#9 garage door hinge 11 gauge steel, zinc coated Make sure to check the number stamped on the hinge to identify it

Top fixture suitable for use on sectional doors in receiving, TLE centers, etc. Best practice is to replace both top fixtures at the same time.

10 self tapping hex head screws for garage door hinges.

Raynor garage door panel, 6ft 2in

Raynor garage door panel – 8ft 2in

Hand swager for garage door cable, crimper, built-in cable cutter

Garage door shaft coupler for 1in split shafts

Chain hoist for overhead doors, shaft mount, 1-inch bore

HD Slide lock w/ 1/2 inch lock bar and 2-1/8 inch throw

TKO door latch, plunger style with cover

Universal slide lock for garage doors. Standard duty, 11 gauge steel.

Does not include springs Garage spring, extra spring hanging kit, keeps 2 extra springs on wall for quick replacements

Blue spring repair block, set of 2. For wire size .2187-.3065. For use on overhead doors. Dock doors, TLE doors, DSD Doors

Red spring repair block, set of 2. For wire size .3750-.4305. For use on overhead doors. Dock doors, TLE doors, DSD Doors

Yellow spring repair block, set of 2. For wire size .3175-.3625. For use on overhead doors. Dock doors, TLE doors, DSD Doors

Spring spreader for overhead door spring repairs

Wire gauge for measuring torsion spring wire size

Track Bolt 10 pack

U-Bumper pair for overhead doors. Come as a set.

Universal Spring Anchor – Left Hand

Universal Spring Anchor – Right Hand

Chain hoist for overhead doors, wall mount, 1-inch bore

Duraflex single paned window kit

Window kit for Overhead Door Brand 591 series doors. Most Overhead Door products in Walmart stores are 591 series. Check pictures for outside measurements to compare to the window at your store.

Wooddruff key for overhead door shafts, 1/4in, 5 pack

20 pack of self-tapping hinge screws.

4ft safety curb to protect against pallet jacks, etc.

Replacement bottom seal for DuraFlex doors. Simply cut the old seal off to expose the bare panel and screw the plastic retainer in, then feed the vinyl t-bulb seal through the retainer. Comes in 8ft 2in sections and can be cut dow… Read More

#9 garage door hinge

#8 garage door hinge

30 pack of self-tapping hinge screws

QMI, 11:1 ratio gear , pharmacy gate, only works with Hex universal part# GEAR-A-11-7-A

60 inch pharmacy gate crank pole.

QMI, 45 degree hex universal, pharmacy gate crank

QMI, 45 degree Square universal, pharmacy gate crank

Strap box for strap operated pharmacy shutters, QMI.

Strap guide for QMI strap operated pharmacy shutters.

Standard slide lock for smaller QMI pharmacy gates.

RollSeal curtain, 11ft x 132in

Rollseal panel – 12ft x 132in

Rollseal panel – 12ft4in x 132in

Switch for RollSeal curtains. Three position switch.

End bearing for RollSeal drive tubes

Rollseal telescoping drift shaft

Tube Motor. Used on smaller RollSeal curtains.

Rollseal u-joint

Additional RollSeal parts available upon request. If you need different motors, curtain sizes, or other components, contact us and we can put in a non-catalog order for you.
